Lectrotab XKA Stainless Steel Trim Tab Kit with Rocker Switch 9 x 12

Enhance your boating experience with the Lectrotab XKA Stainless Steel Trim Tab Kit, meticulously designed for those who demand strength, reliability, and superior performance on the water. This premium trim tab kit features a robust stainless steel construction that ensures durability, even in the harshest marine environments. With dimensions of 9 x 12 inches, this kit is perfect for a variety of vessels, delivering exceptional control and stability.

The Lectrotab trim tab kit stands out in the market due to its innovative design. Each tab is fabricated with a continuous rolled and pinned hinge, eliminating the need for welding and enhancing the integrity of the product. This unique feature not only maximizes the strength of the trim tabs but also simplifies the installation process, making it an ideal choice for both seasoned boaters and newcomers.

Key Features and Benefits

• Stainless Steel Durability: Constructs a robust framework that withstands corrosion and wear.
• Easy Installation: The pin hinge design allows for a straightforward setup without welding.
• Improved Boat Performance: Offers better control and stability, enhancing the overall boating experience.
• Includes Rocker Switch: Comes with a convenient rocker switch for easy operation.

Whether you’re navigating calm lakes or challenging ocean waves, the Lectrotab XKA Trim Tab Kit is your go-to solution for superior boat handling. Upgrade your watercraft to achieve optimal performance and enjoy the ride like never before.

Don't miss out! Add the Lectrotab XKA Stainless Steel Trim Tab Kit to your cart today, and experience the difference in your boating adventures!

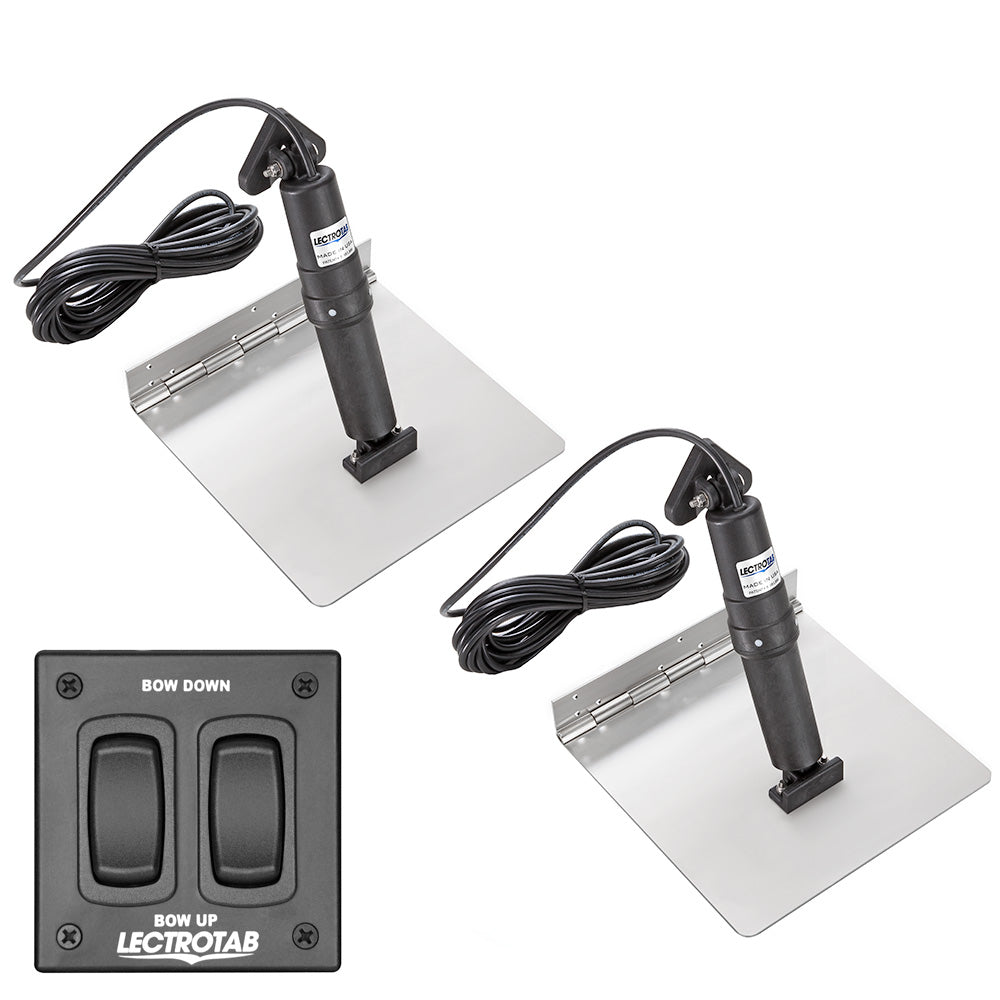

XKA Stainless Steel Trim Tab Kit with Rocker Switch - 9 x 12

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking.  Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 12" (23 x 30 cm)
• Boat Length - 16' to 25' (5 to 7.5 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length  - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) Flat Rocker Switch
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit
