Discover the Lectrotab XKA Stainless Steel Trim Tab Kit with Rocker Switch - 12 x 18

Enhance your boating experience with the Lectrotab XKA Stainless Steel Trim Tab Kit featuring a convenient rocker switch. Crafted with precision and durability in mind, this 12 x 18 trim tab kit is designed to provide unmatched strength and reliability for all types of vessels. Whether you're navigating through rough waters or aiming for optimal performance, this kit is your go-to solution.

The Lectrotab kit is engineered with all stainless steel tabs that incorporate a continuous rolled and pinned hinge. This innovative design eliminates the need for welding, ensuring a long-lasting and sturdy performance in marine environments. When it comes to trim tabs, you won't find a more reliable option on the market.

• Durable Construction: Made entirely of stainless steel for maximum corrosion resistance.
• Easy Installation: Comes with a rocker switch for straightforward operation and integration.
• Enhanced Performance: Improves overall handling and stability of your boat while on the water.
• Versatile Compatibility: Suitable for a wide range of boats, making it an essential addition to your marine toolkit.

With the Lectrotab XKA Trim Tab Kit, you can effortlessly control your boat’s attitude, ensuring smoother rides and better fuel efficiency. Join countless satisfied boaters who have transformed their boating experience with this top-tier product.

Don't settle for less; upgrade to the Lectrotab XKA Stainless Steel Trim Tab Kit today and experience the difference in your vessel's performance. Order now and take the first step towards a more enjoyable time on the water!

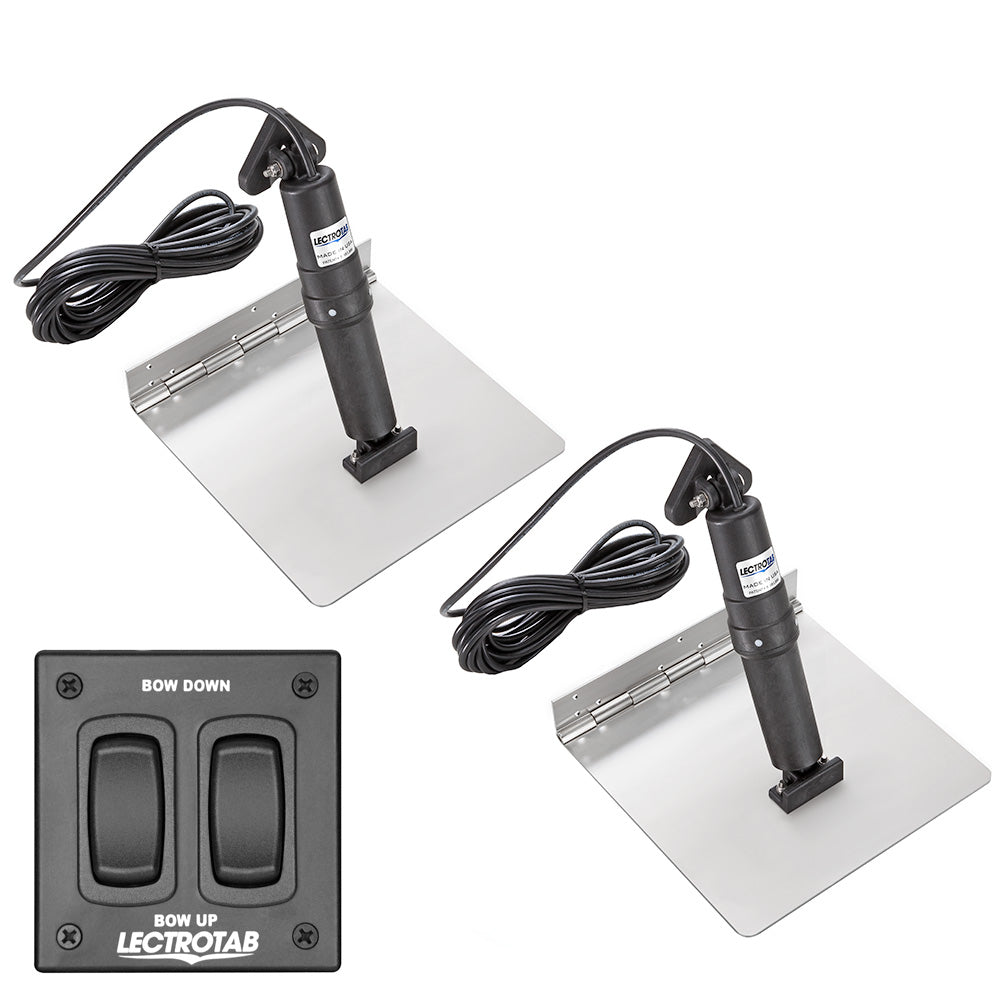

XKA Stainless Steel Trim Tab Kit with Rocker Switch - 12 x 18

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking.  Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 18" (30 x 46 cm)
• Boat Length - 20' to 40' (6 to 12 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length  - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) Flat Rocker Switch
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit
