Lectrotab XKA Stainless Steel Trim Tab Kit with MLC-1 Control 12 x 18

Upgrade your boating experience with the Lectrotab XKA Stainless Steel Trim Tab Kit featuring the innovative MLC-1 Control. This premium trim tab kit is designed to enhance your vessel's performance, providing unmatched strength and reliability that every boat owner desires.

The Lectrotab stainless steel design stands out in the market, offering a continuous rolled and pinned hinge that eliminates the need for welding. This unique engineering ensures durability while maintaining a sleek appearance. The 12 x 18 size is perfect for a variety of boat types, making it a versatile choice for any enthusiast.

• Durability: Crafted from high-quality stainless steel for enhanced longevity.
• Innovative Design: Continuous rolled and pinned hinge for superior strength.
• Easy Installation: User-friendly setup with included hardware.
• Improved Performance: Controls boat trim effectively for better handling and fuel efficiency.
• Versatile Fit: Ideal for various boat styles and sizes.

The Lectrotab brand is synonymous with excellence in trim tabs, making this kit a top choice among boating enthusiasts. Whether you are looking to improve stability, increase speed, or enhance fuel efficiency, the XKA Stainless Steel Trim Tab Kit delivers on all fronts.

Don’t settle for anything less than the best for your boat. Invest in the Lectrotab XKA Stainless Steel Trim Tab Kit with MLC-1 Control today and experience the difference in performance and reliability. Order now!

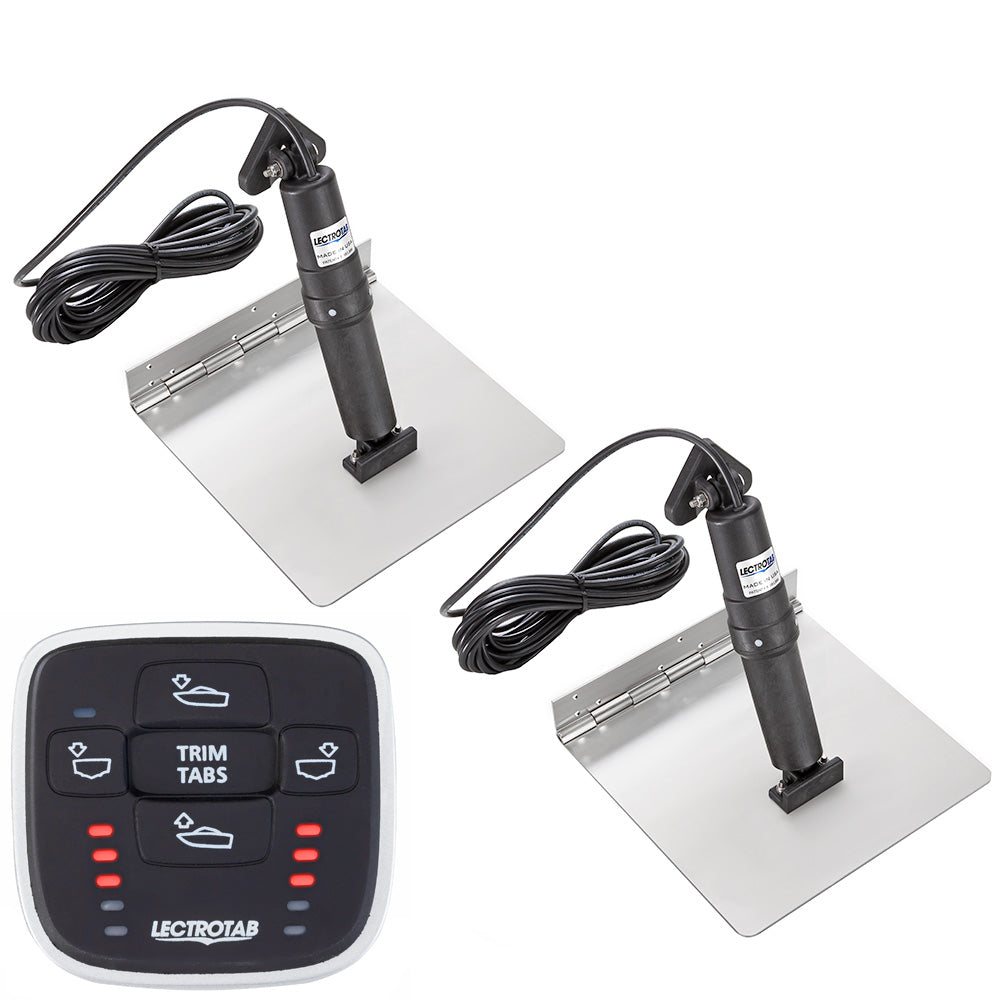

XKA Stainless Steel Trim Tab Kit with MLC-1 Control - 12 x 18

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket.

The Lectrotab MLC-1 is a microprocessor based trim tab control that can move both tabs simultaneously at the touch of a single button.  It includes LED tab position indicators which will automatically dim in darkness and brighten in sunlight.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 18" (30 x 46 cm)
• Boat Length - 20' to 40' (6 to 12 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length  - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
• Control Mounting Hole Cutout - 2" (50 mm)
• Control Operating Voltage - 12 or 24 V

In the Box:

• One (1) Manual Leveling Control
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit
