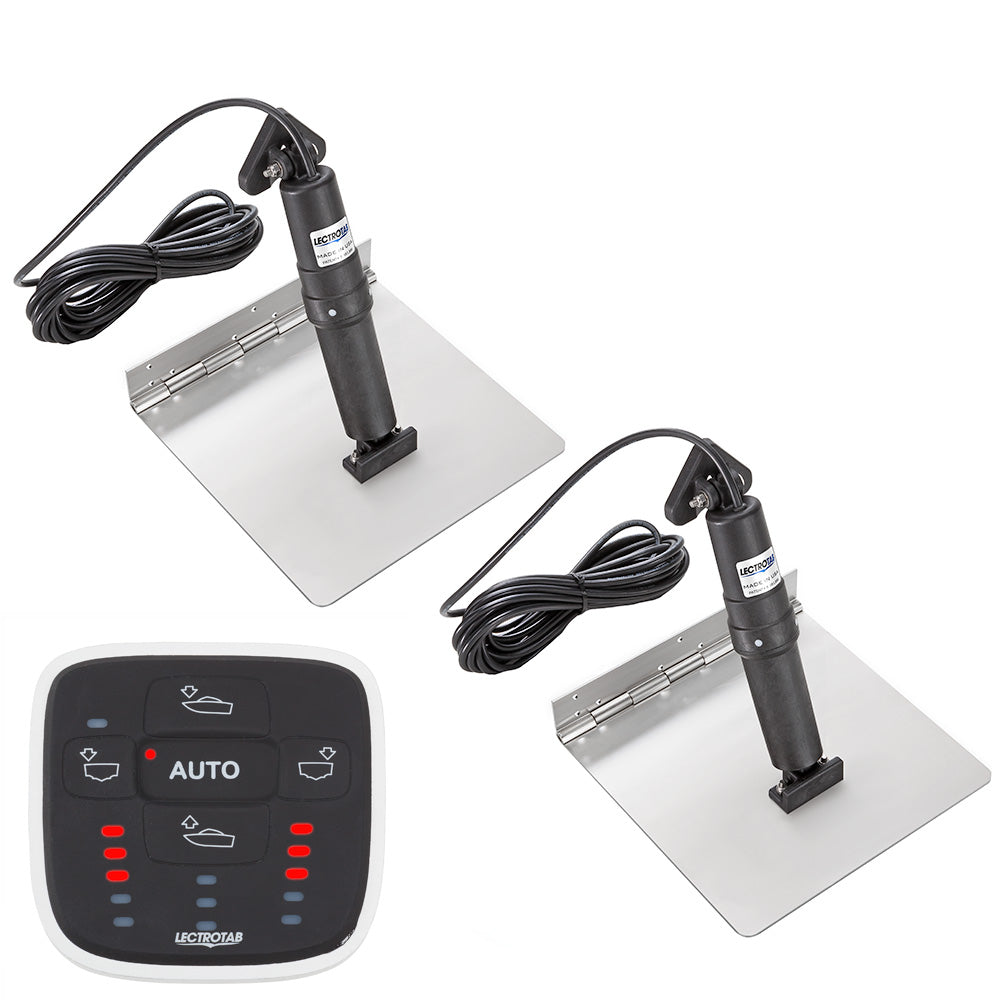

Lectrotab XKA Stainless Steel Trim Tab Kit with ALC-1 Control - 9x9

The Lectrotab XKA Stainless Steel Trim Tab Kit with ALC-1 Control delivers unmatched strength and reliability for serious watercraft. Engineered for saltwater environments, this kit helps you dial in trim for a smoother, more efficient ride on any water.

Built from all stainless steel, the trim tabs use a continuous rolled and pinned hinge design that eliminates welding, increasing durability and simplifying maintenance. This rugged construction resists corrosion and wear, ensuring dependable performance mile after mile.

The ALC-1 Control provides precise trim adjustments and automatic leveling, so you can optimize lift, stability, and efficiency with minimal effort. With 9 x 9 inch tabs, you gain substantial lifting power to reduce bow rise, minimize porpoising, and improve handling across a range of speeds.

Key benefits include:

• All stainless steel construction for superior corrosion resistance
• Weld-free hinge with a continuous rolled and pinned design for durability
• ALC-1 Control for precise trim and leveling
• 9 x 9 inch trim tabs delivering strong lift and stability
• Saltwater-ready hardware designed for marine use
• Maintenance-friendly design that reduces downtime

Upgrade your vessel with Lectrotab’s trusted trim tab system and enjoy enhanced performance, improved fuel efficiency, and a smoother ride in varied sea conditions.

XKA Stainless Steel Trim Tab Kit with ALC-1 Control - 9 x 9

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 9" (23 x 23 cm)
• Boat Length - 14' to 19' (4 to 6 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
• Control Mounting Hole Cutout - 2" (50 mm)
• Control Operating Voltage - 12 or 24 V

In the Box:

• One (1) Automatic Leveling Control
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit
