Lectrotab XKA Stainless Steel Trim Tab 9 x 9 - Unmatched Strength and Reliability

The Lectrotab XKA Stainless Steel Trim Tab 9 x 9 is designed for boat enthusiasts who demand exceptional performance and durability from their marine accessories. Crafted from high-quality stainless steel, this trim tab offers unparalleled strength and reliability, making it a top choice in the trim tabs category.

What sets the Lectrotab XKA apart from other trim tabs is its innovative design. Featuring a continuous rolled and pinned hinge, this construction technique eliminates the need for welding, resulting in a more robust and long-lasting product. This unique feature not only enhances durability but also simplifies installation, ensuring that you can get back on the water quickly and efficiently.

• Dimensions: 9 x 9 inches - a versatile size for various boat types
• Material: High-quality stainless steel for maximum corrosion resistance
• Design: Rolled and pinned hinge design for superior strength
• Ease of Installation: No welding required, making setup a breeze

When choosing a trim tab, reliability is key. The Lectrotab XKA delivers consistent performance, improving your boat's handling and stability. Enjoy smoother rides and enhanced control, even in challenging conditions.

Experience the difference that quality and precision make with the Lectrotab XKA Stainless Steel Trim Tab. Upgrade your boat's performance today and navigate the waters with confidence!

Don’t miss out! Equip your vessel with the best in marine technology. Order your Lectrotab XKA Stainless Steel Trim Tab now and take the first step towards enhancing your boating experience.

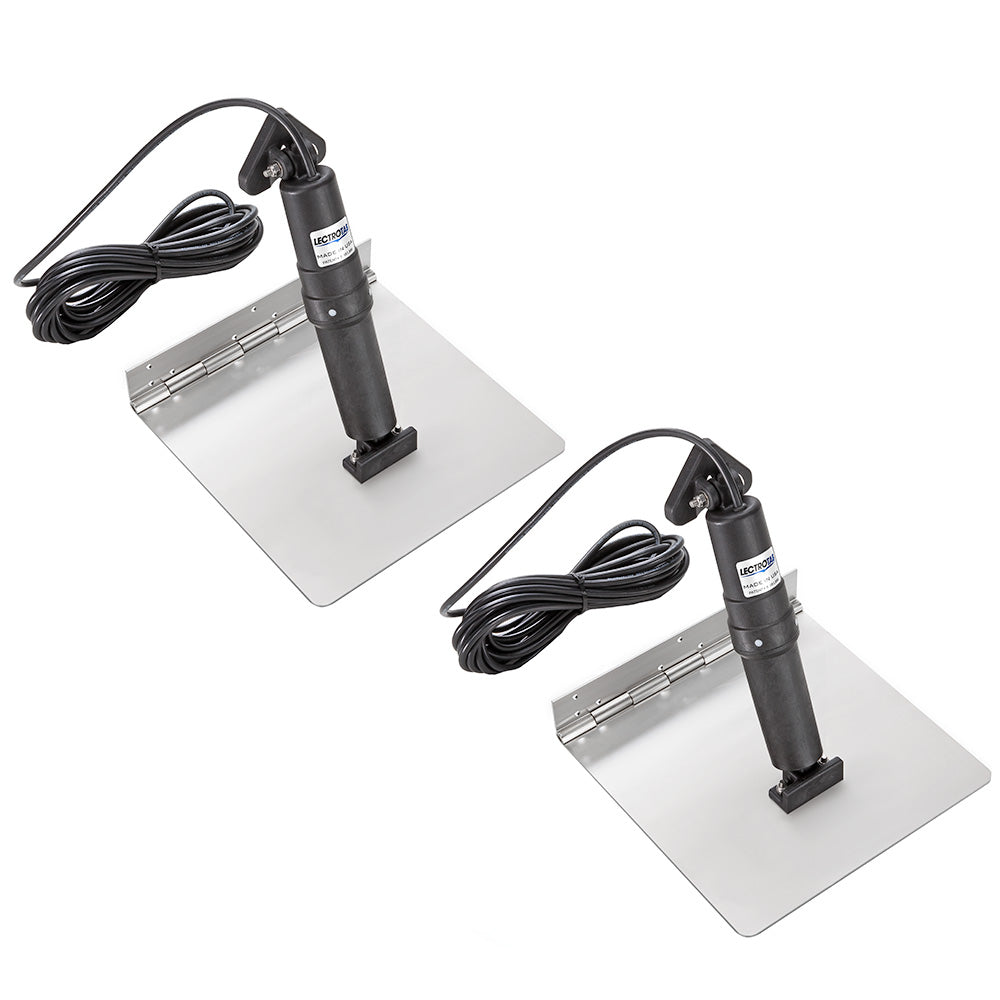

XKA Stainless Steel Trim Tab - 9 x 9

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket.

*Control switch not included

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 9" (23 x 23 cm)
• Boat Length - 14' to 19' (4 to 6 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length  - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)

In the Box:

• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as an Individual
