Lectrotab XKA Stainless Steel Trim Tab 9 x 18 - Durable and Reliable Design

Introducing the Lectrotab XKA Stainless Steel Trim Tab, measuring 9 x 18 inches, engineered for marine enthusiasts seeking unmatched strength and durability. As a leading name in the industry, Lectrotab guarantees reliability and performance that will enhance your boating experience. This premium trim tab is perfect for optimizing your vessel's stability and handling on the water.

The robust stainless steel construction of the XKA trim tab offers significant resistance against corrosion, ensuring longevity even in harsh marine environments. Unlike other products in its category, the Lectrotab design features:

• Continuous Rolled and Pinned Hinge: Eliminates the need for welding, providing a seamless and sturdy connection.
• Precision-Engineered Actuator: Ensures smooth and efficient movement for optimal control of your boat.
• Easy Installation: Designed for straightforward mounting, saving you time and effort.

The Lectrotab XKA Trim Tab stands out in the market for its reliable performance and superior construction. Upgrade your boating experience with this essential accessory that not only enhances handling but also improves fuel efficiency. Whether you're navigating calm waters or choppy seas, this trim tab will provide the necessary support for a smoother ride.

Don't compromise on quality - choose the Lectrotab XKA Stainless Steel Trim Tab for your vessel. Order now and experience the difference in your boating adventures!

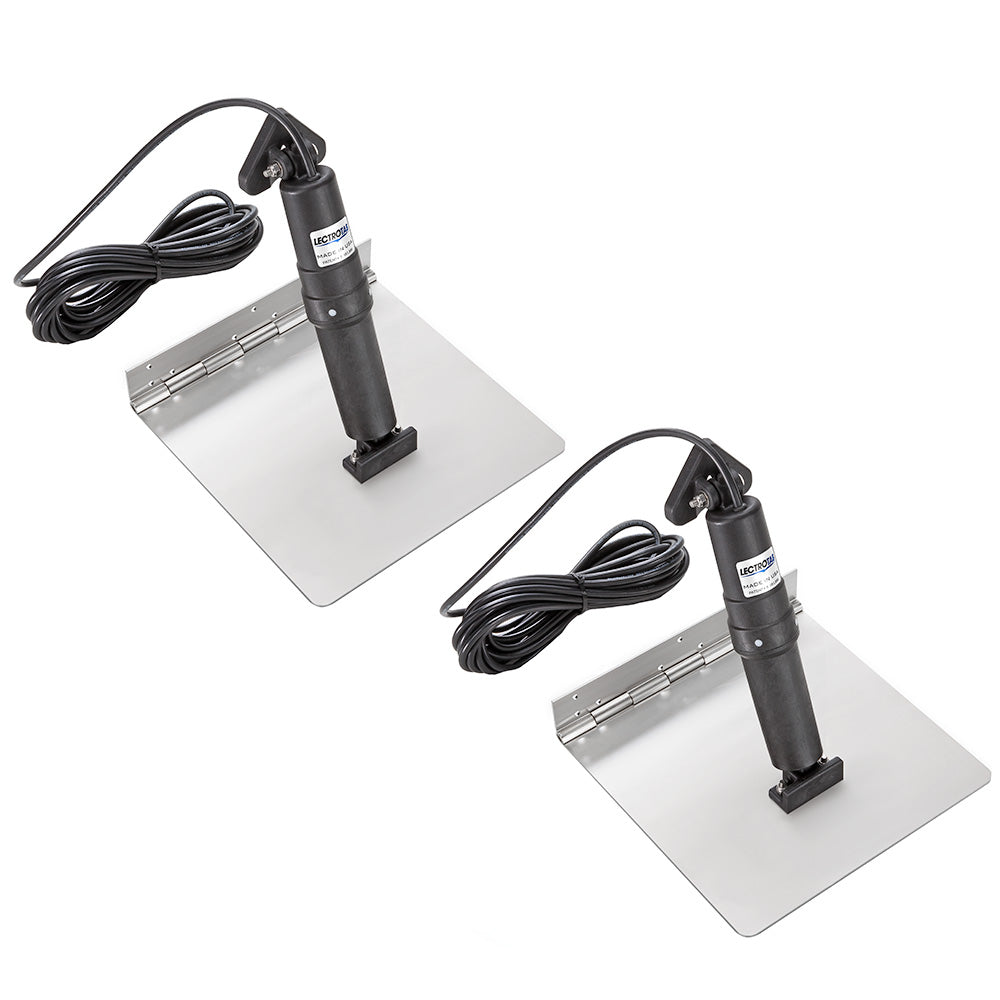

XKA Stainless Steel Trim Tab - 9 x 18

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket.

*Control switch not included

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 18" (23 x 46 cm)
• Boat Length - 21' to 30' (6.5 to 9 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length  - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)

In the Box:

• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as an Individual
