Lectrotab XKA Aluminum Trim Tab Kit With ALC1 Control - 9 x 24

Enhance boat handling, stability, and efficiency with the Lectrotab XKA Aluminum Alloy Trim Tab Kit, featuring the ALC-1 Control. Sized at 9 x 24, this trim tab system is purpose-built for aluminum-hulled boats and offers an economical, high-performance option for a wide range of vessels. All Aluminum Alloy tabs are fabricated with an extremely strong “no-break” polypropylene.

Key Features

• 9 x 24 trim tabs — compact yet powerful for enhanced stability and planing efficiency.
• ALC-1 Control — integrated control system for precise, responsive trim adjustments.
• All Aluminum Alloy construction — designed specifically to meet the needs of aluminum-hulled boats.
• Economical option — economical trim-tab solution suitable for a wide range of boats.

Benefits

• Improve straight-line tracking and reduce chine-walking at speed for a smoother ride.
• Enhance planing onset and overall fuel efficiency by optimizing bow-down trim.
• Easy installation and reliable operation with durable no-break polypropylene components.
• Robust performance tailored to aluminum-hulled boats, while remaining a versatile choice for many vessel types.

Upgrade your boat’s performance with a dependable, heavy-duty trim tab kit that delivers precise control, improved stability, and better efficiency at all speeds.

XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control - 9 x 24

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.

Features:

• All Tabs sealed with a corrosive resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 24" (23 x 61 cm)
• Boat Length - 24' to 37' (7 to 11 M)
• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
• Control Mounting Hole Cutout - 2" (50 mm)
• Control Operating Voltage - 12 or 24 V

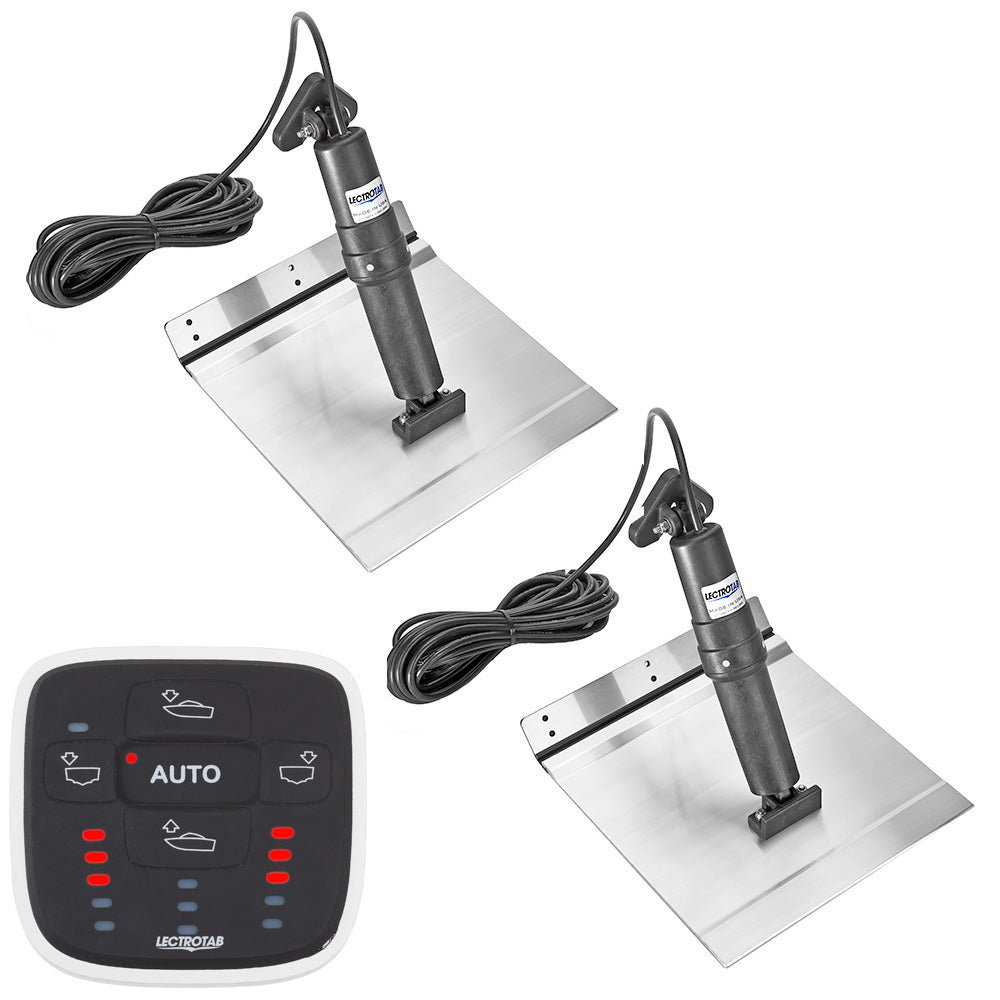

In the Box:

• One (1) Automatic Leveling Control
• Two (2) Aluminum Alloy tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit
