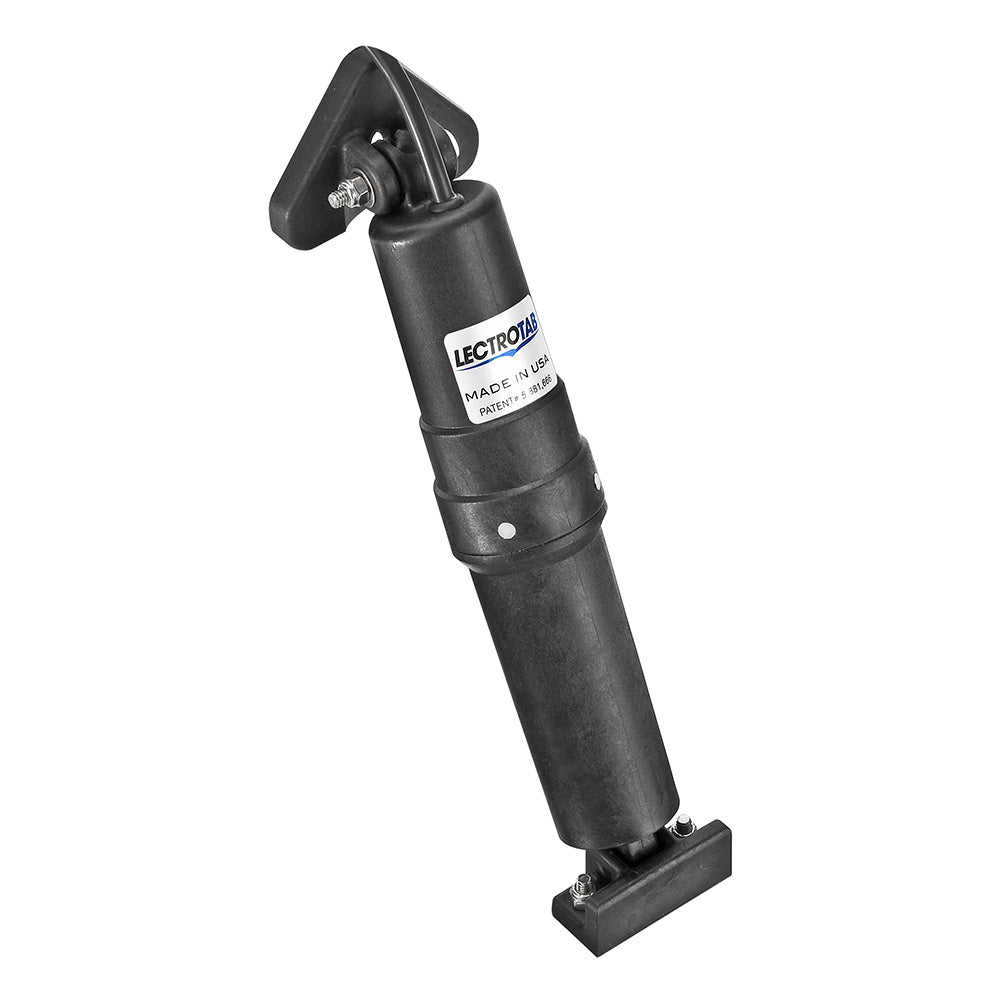

Lectrotab 12V Trim Tab Actuator with 23' Cable – Marine Grade

Lectrotab 12 V Trim Tab Actuator delivers quiet operation and a maintenance-free, non-hydraulic design that sailors rely on for precise trim control. The unit is corrosion-free and self-contained for easy installation and reliable performance in marine environments.

Featuring a 23' cable length, this actuator provides flexible mounting options while ensuring maximum lift force and accurate tab positioning to keep your vessel balanced and handling smoothly, even in challenging seas.

• 12V DC operation for marine compatibility
• Non-hydraulic, maintenance-free design
• Corrosion-free construction for saltwater durability
• Very accurate tab positioning for precise trim control
• Maximum lift force to quickly adjust trim
• Self-contained and easy to install
• Includes a 23 ft cable for flexible installation

This trim tab actuator is ideal as a Trim Tab Accessory for boats seeking dependable, high-performance control with minimal upkeep. Invest in Lectrotab reliability and keep your boat tracking true, whatever the conditions.

12 V Trim Tab Actuator - 23' Cable

Lectrotab trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing.

No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates a transom mounting bracket.

Features:

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Upgrades to most popular hydraulic and electromechanical systems
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• All actuators fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Upper Mounting Bracket - Standard
• Lower Mounting Bracket - Standard

*Sold as an Individual
