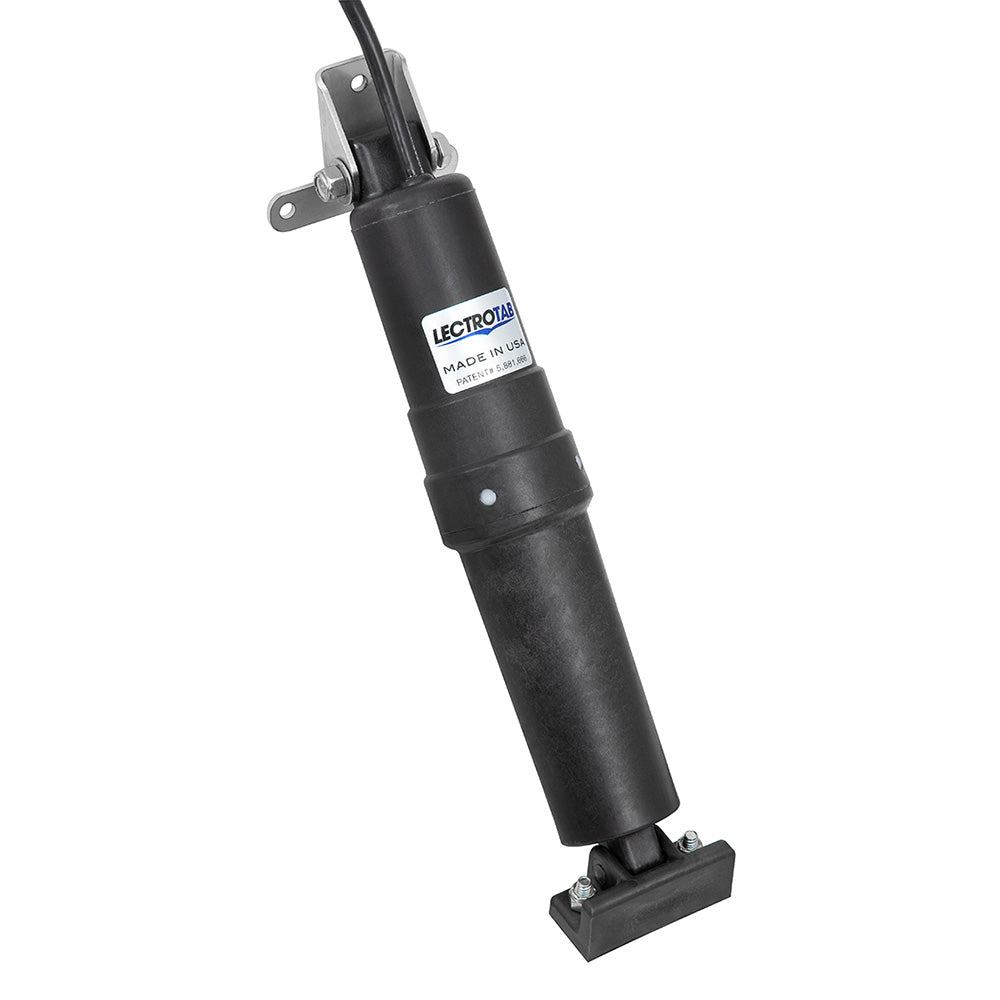

Lectrotab 12 Volt Heavy Duty Tab Actuator with 23 Foot Cable

Experience unparalleled performance on the water with the Lectrotab 12 Volt Heavy Duty Tab Actuator. Designed specifically for boats operating at high speeds or in rough conditions, this actuator ensures reliable operation when you need it most. With a generous 23-foot cable, it provides flexibility and adaptability for various installations, making it a perfect addition to your trim tab accessories.

Built to last, the heavy-duty actuator features:

• Reinforced Upper Mounting Boss: Enhances durability and stability under demanding conditions.
• 12 Gauge Stainless Steel Upper Bracket: Offers exceptional strength and resistance to corrosion, ensuring your actuator remains reliable for years.
• Improved Performance: Optimized for high-speed operations, providing responsive adjustments to your trim tabs.

The Lectrotab brand is synonymous with quality and innovation in the marine industry. When you choose the Lectrotab 12 Volt Heavy Duty Tab Actuator, you're investing in a product that meets the highest standards of performance and reliability.

Whether you're navigating choppy waters or looking to enhance your boat's performance, this actuator is the perfect solution. Don’t compromise on quality — upgrade your trim tab system today!

Take your boating experience to the next level with the Lectrotab 12 Volt Heavy Duty Tab Actuator. Order now and ensure your vessel is ready for any adventure!

12 V Heavy Duty Tab Actuator - 23' Cable

Lectrotab meets the needs of boats operating at high speeds or in rough conditions by offering its heavy duty trim tab actuator.  The heavy duty actuator features a reinforced upper mounting boss and a 12 gauge stainless steel upper bracket.  Lectrotab heavy duty trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance free design.

The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.  Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates a standard or low profile transom mounting bracket.

Features:

• Stainless Steel upper mounting bracket
• Reinforced actuator upper mounting boss
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• All actuators fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length  - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Upper Mounting Bracket - Bolt, nut and washer
• Lower Mounting Bracket - Bolt, nut, spacer and washer

*Sold as an Individual
