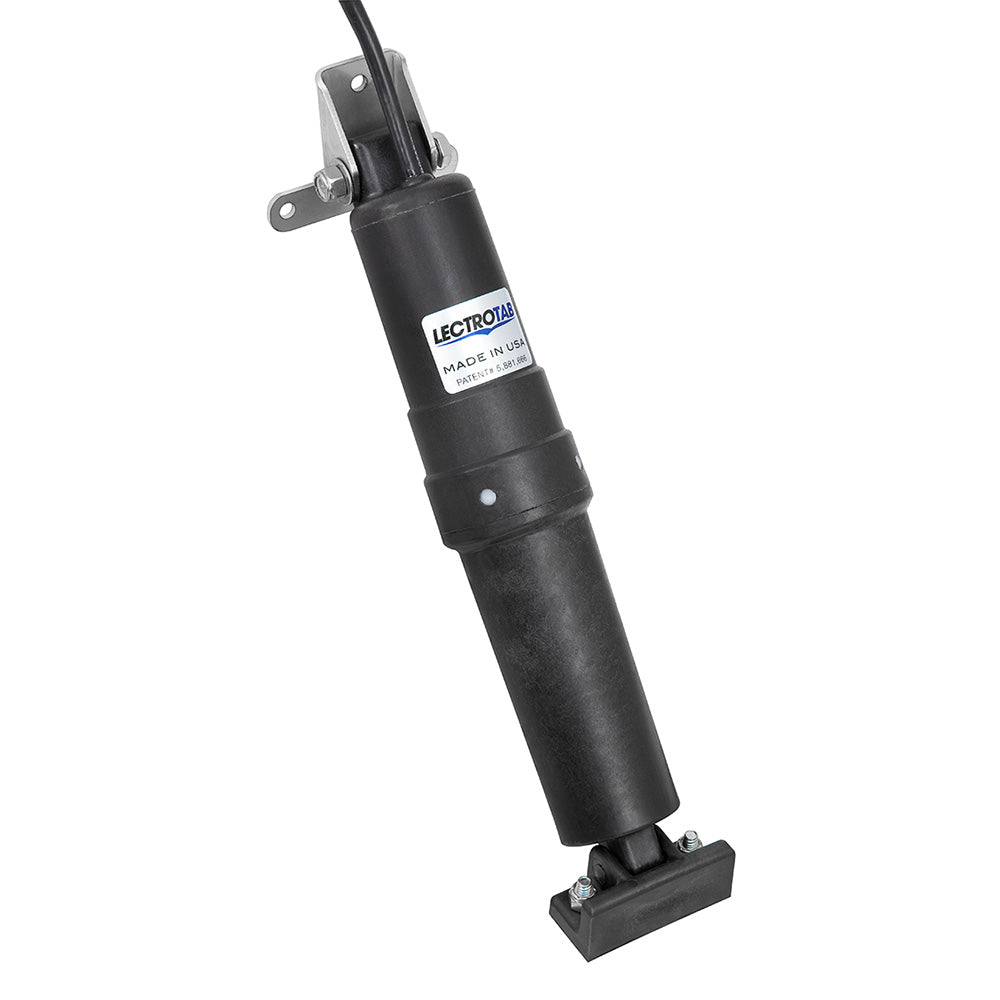

12 V Heavy Duty Tab Actuator - 6' Cable
Lectrotab meets the needs of boats operating at high speeds or in rough conditions by offering its heavy duty trim tab actuator. The heavy duty actuator features a reinforced upper mounting boss and a 12 gauge stainless steel upper bracket. Lectrotab heavy duty trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance free design.
The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates a standard or low profile transom mounting bracket.
Features:
- Stainless Steel upper mounting bracket
- Reinforced actuator upper mounting boss
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when under way or backing down
- Quiet operation
- All actuators fully load tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Technical Specifications:
- Actuator DC Voltage - 12 V
- Actuator Stroke Length - 2.25" (57 mm)
- Actuator Cable Length - 6' (1.8 M)
- Actuator Vertical Height - 11.875" (302 mm)
- Upper Mounting Bracket - Stainless Steel - 12 gauge
- Lower Mounting Bracket - Standard
*Sold as an Individual
