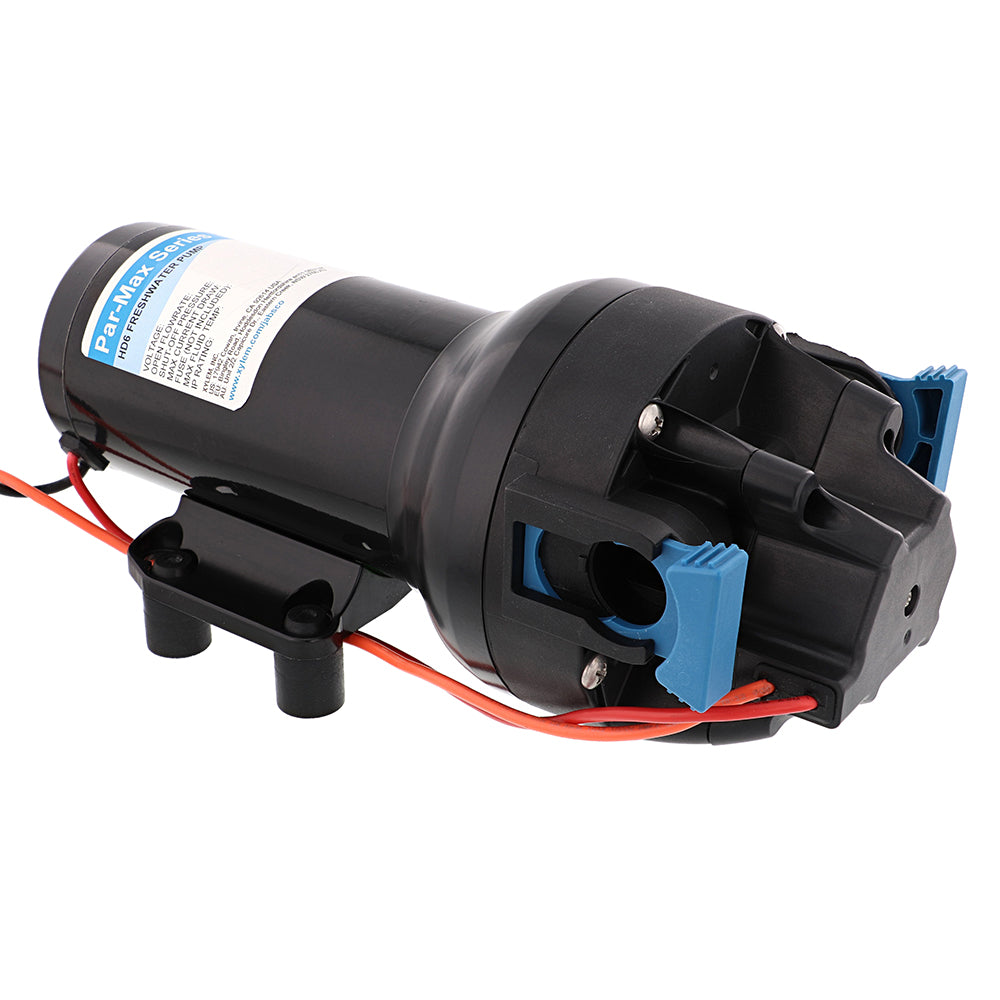

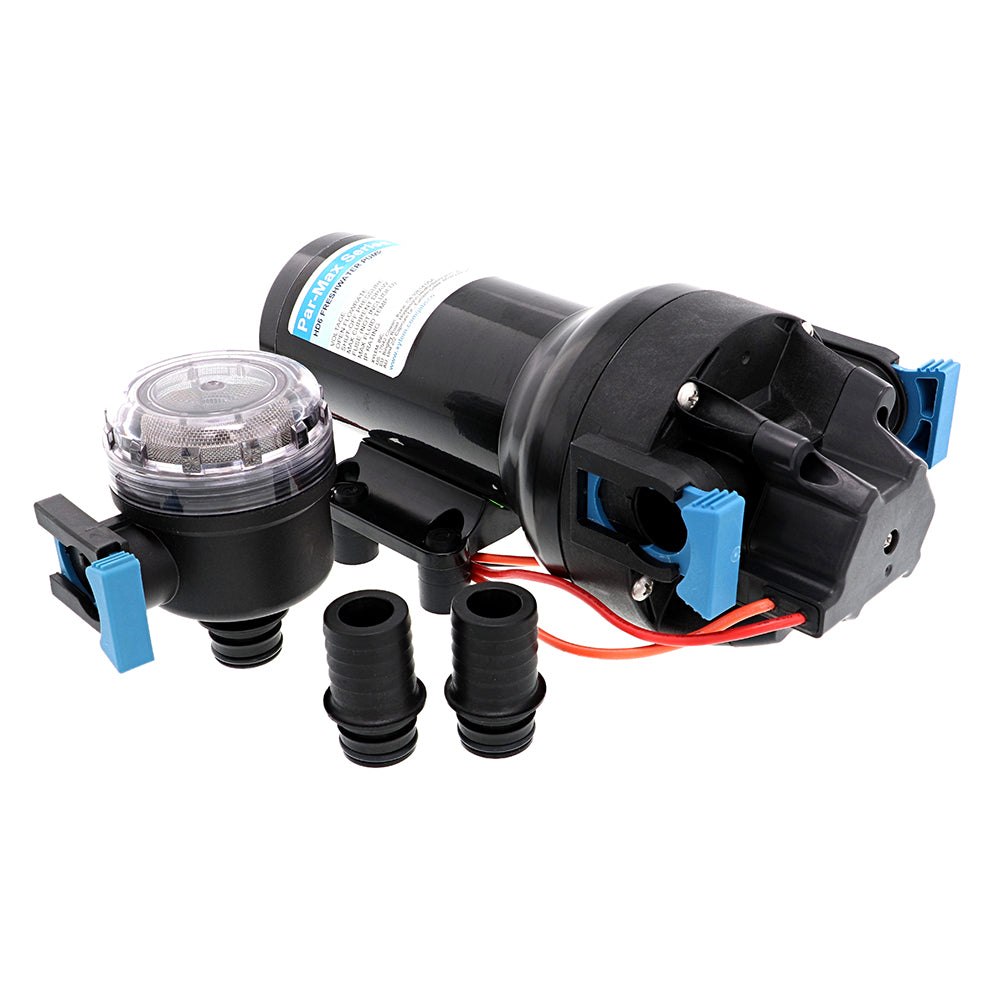

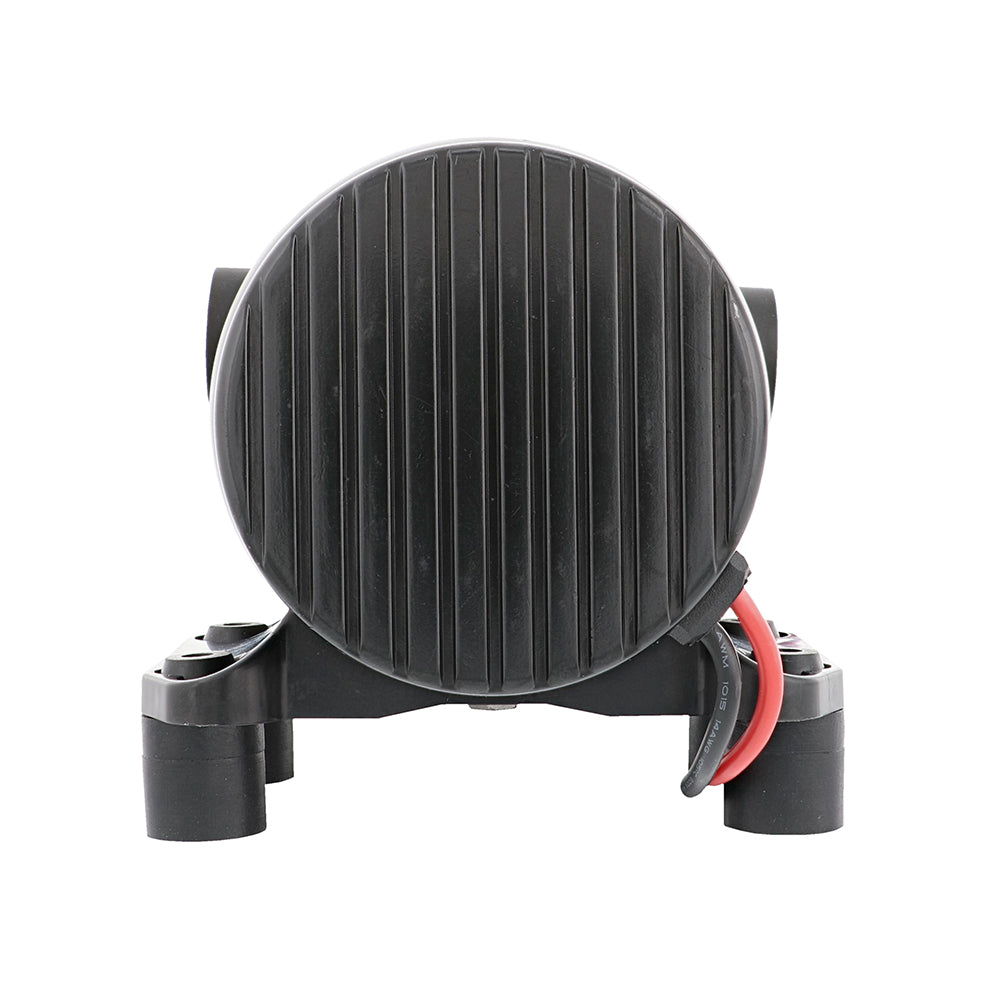

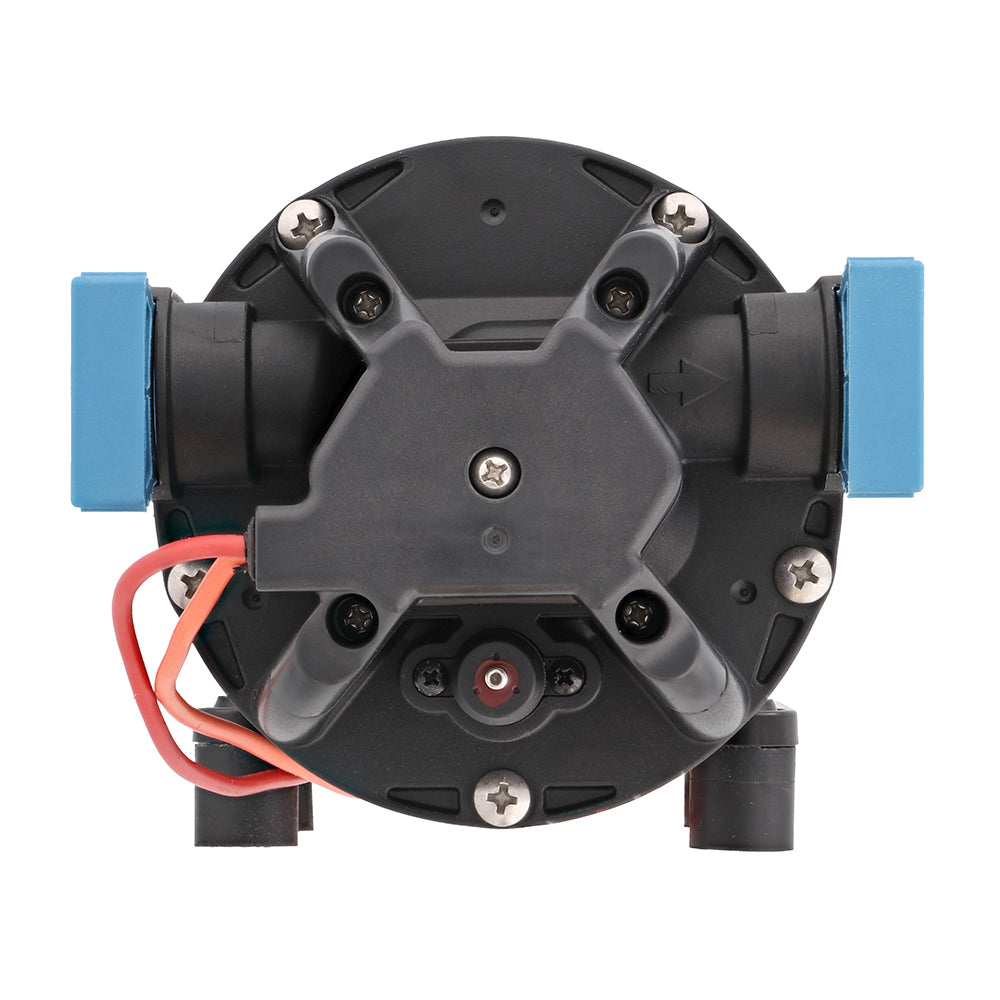

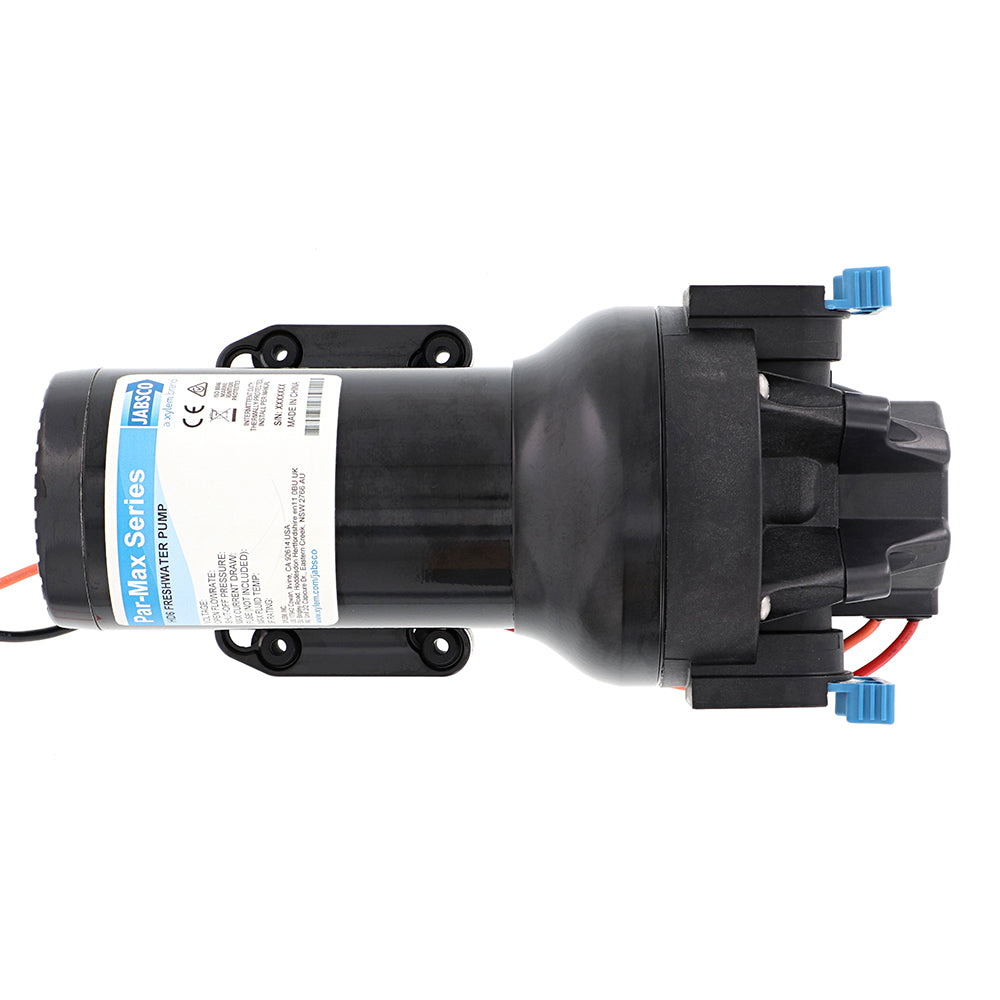

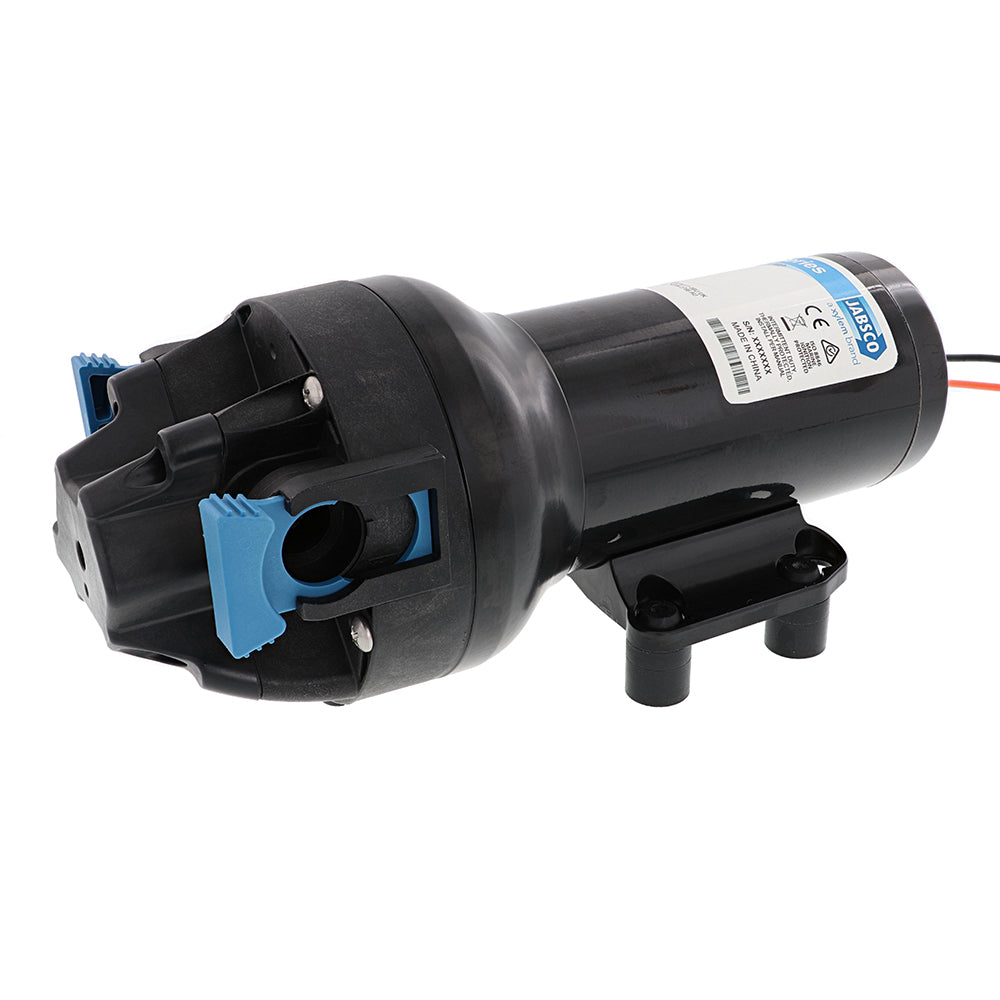

Jabsco Par-Max HD6 Heavy Duty Water Pressure Pump - 24V - 6 GPM - 60 PSI

Jabsco Par-Max HD6 Heavy Duty Water Pressure Pump offers exceptional water pressure performance tailored for marine applications and demanding water systems. With a robust capacity of 6 GPM and 60 PSI, this pump is designed for high efficiency in tough environments.

Key Features:

• Heavy Duty Design: Features a wider diameter motor and cast aluminum endbells for improved durability and pressure capabilities.
• Self-Priming Capability: Installs easily with a dry self-priming ability of up to 7 feet, providing installation versatility.
• Efficient Operation: Integrated pressure switch for on-demand operation, ensuring quiet and reliable performance.

Ideal for boaters and RV enthusiasts, this pump is supported by a commitment to quality, including certifications like CE and ISO8846, ensuring peace of mind during use.

Experience the superior functionality of the Jabsco Par-Max HD6 Heavy Duty Water Pressure Pump and elevate your water system performance today!

Par-Max HD6 Heavy Duty Water Pressure Pump - 24V - 6 GPM - 60 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability
• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32°F – 140°F (0°C – 60°C)
• Dry self-priming capability: 7ft min (2.13m/min)
• Certifications: CE, ISO8846, RCM
• Ingress Protection: IPX6
