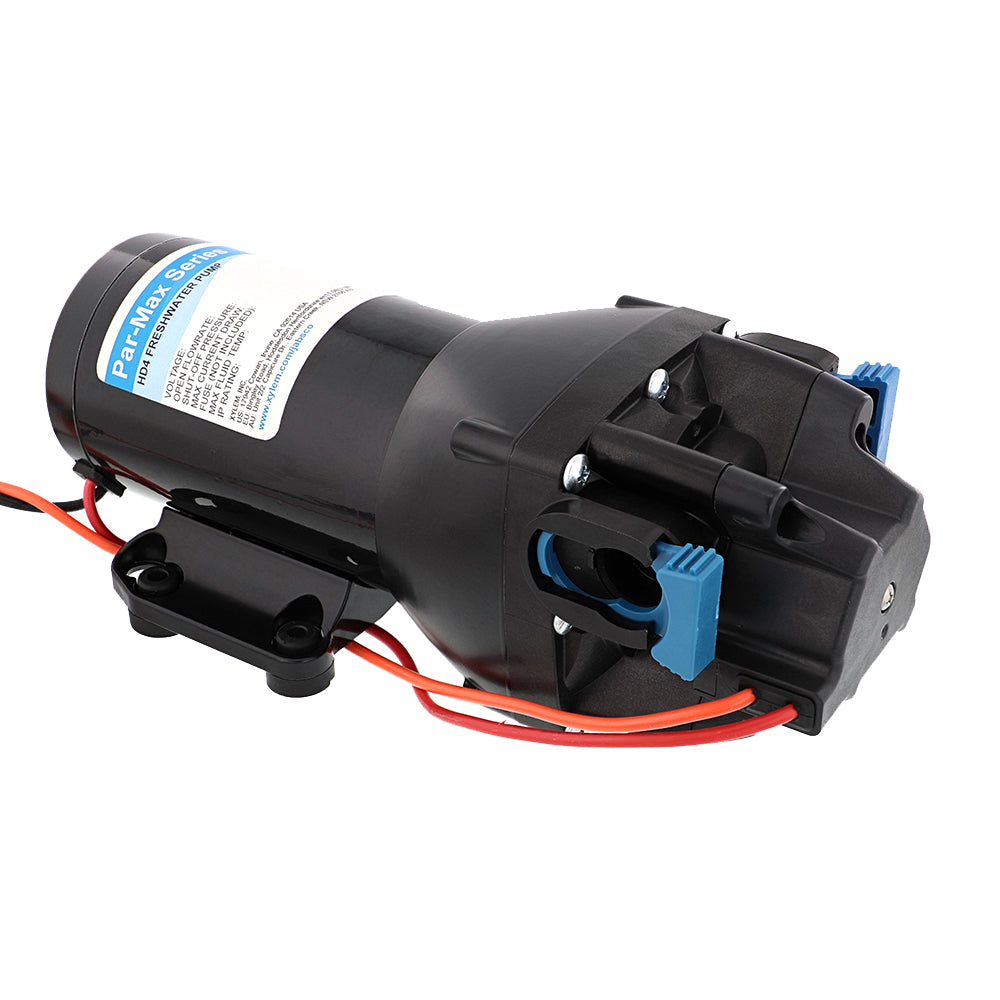

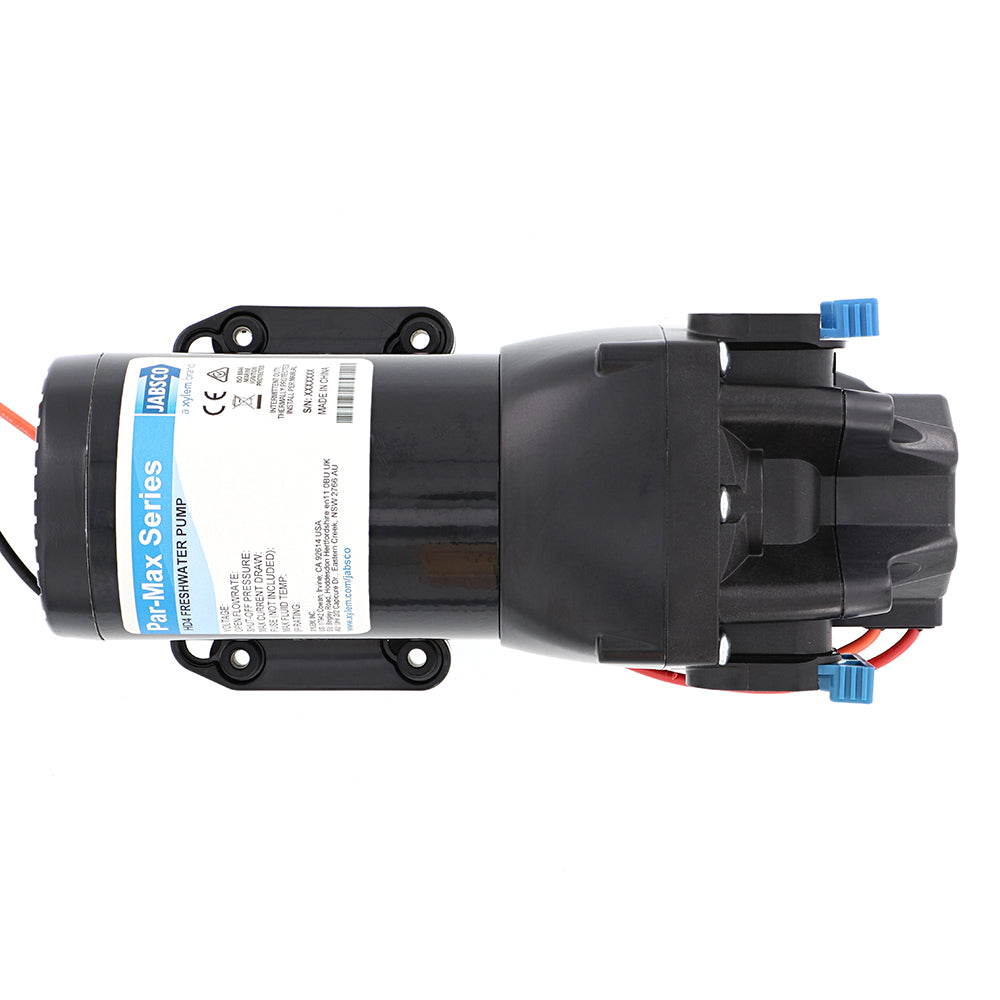

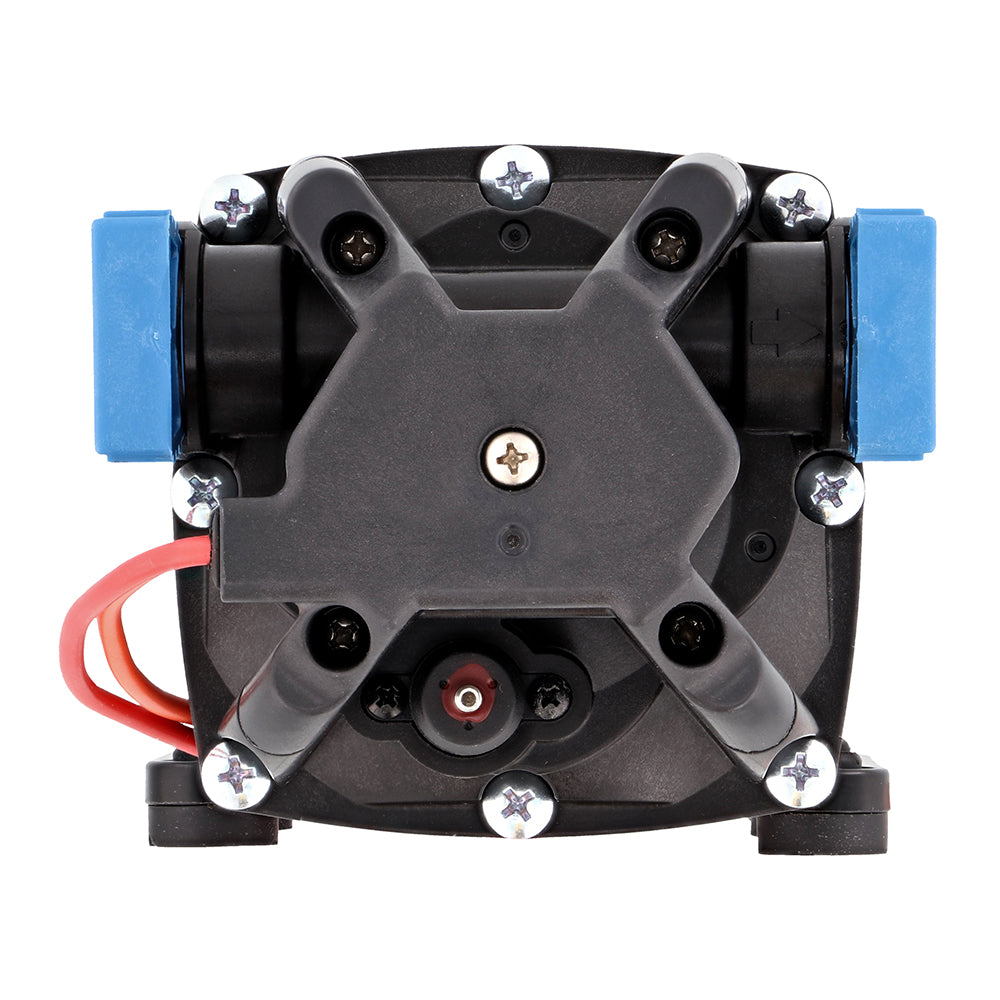

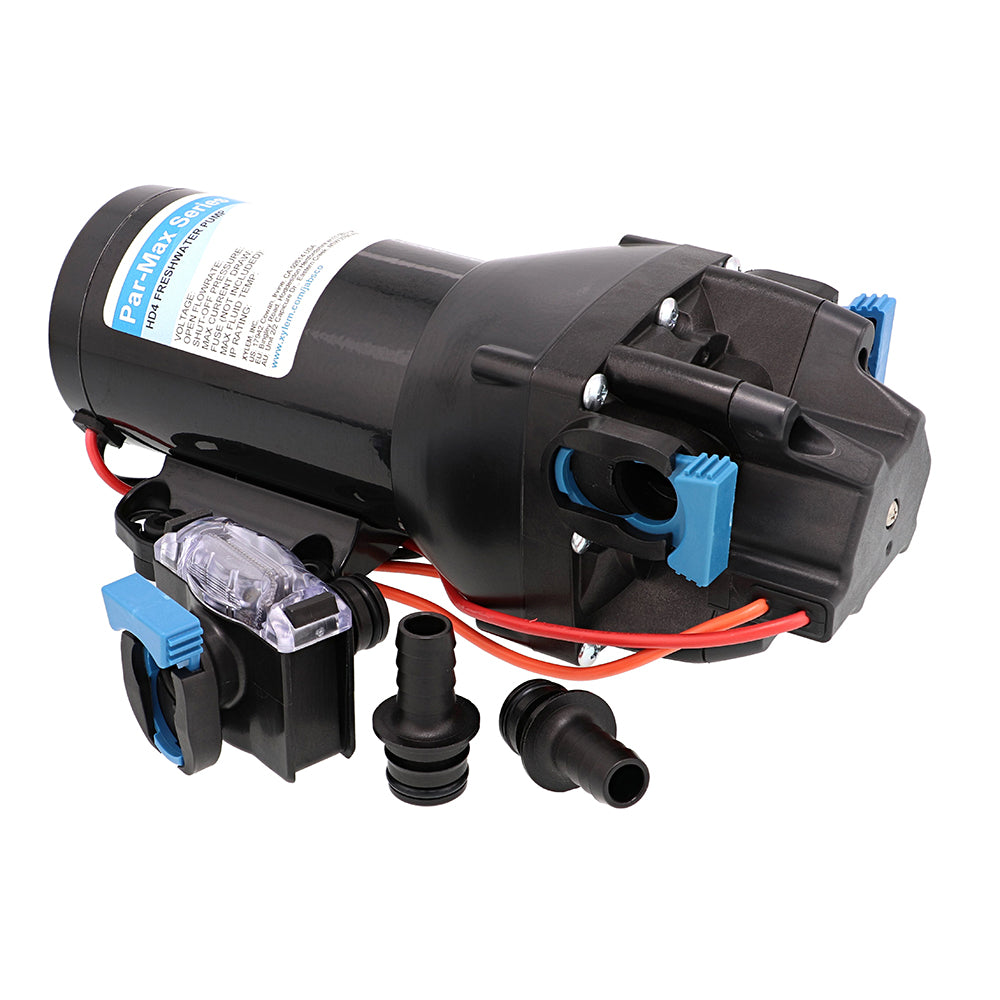

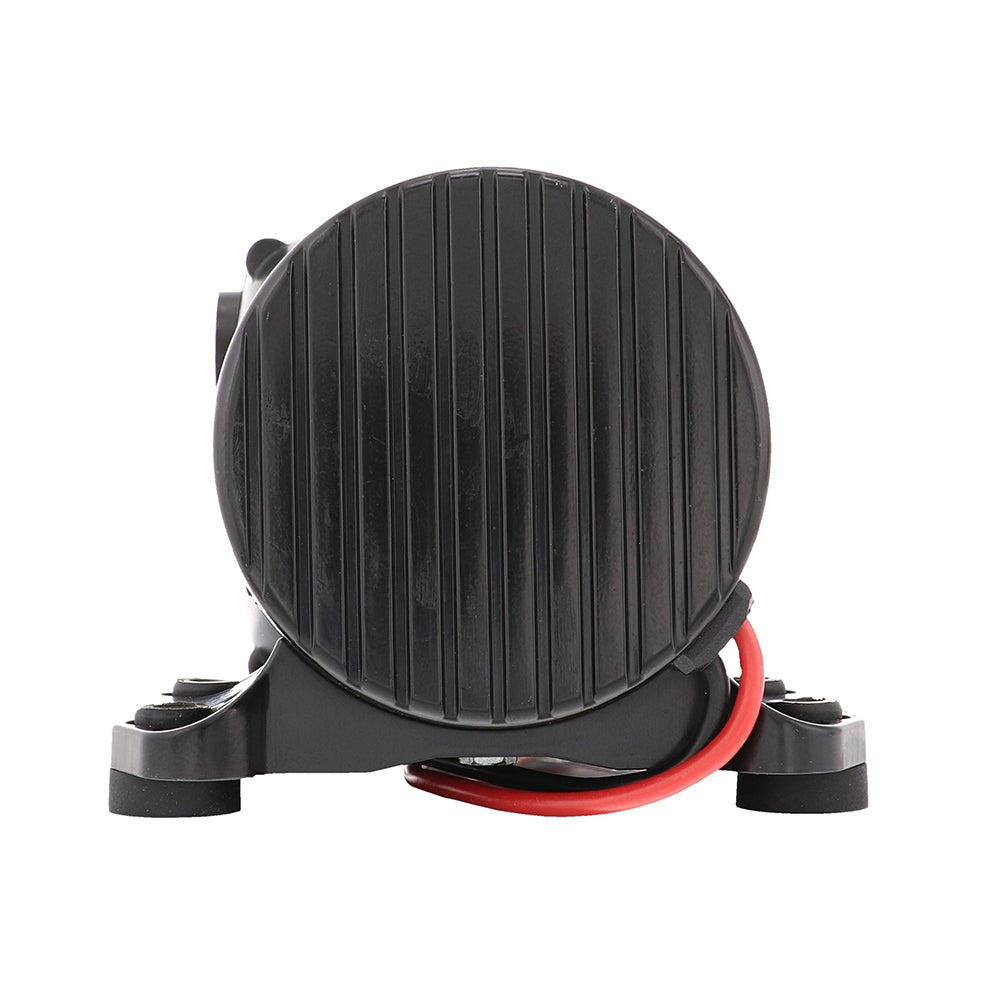

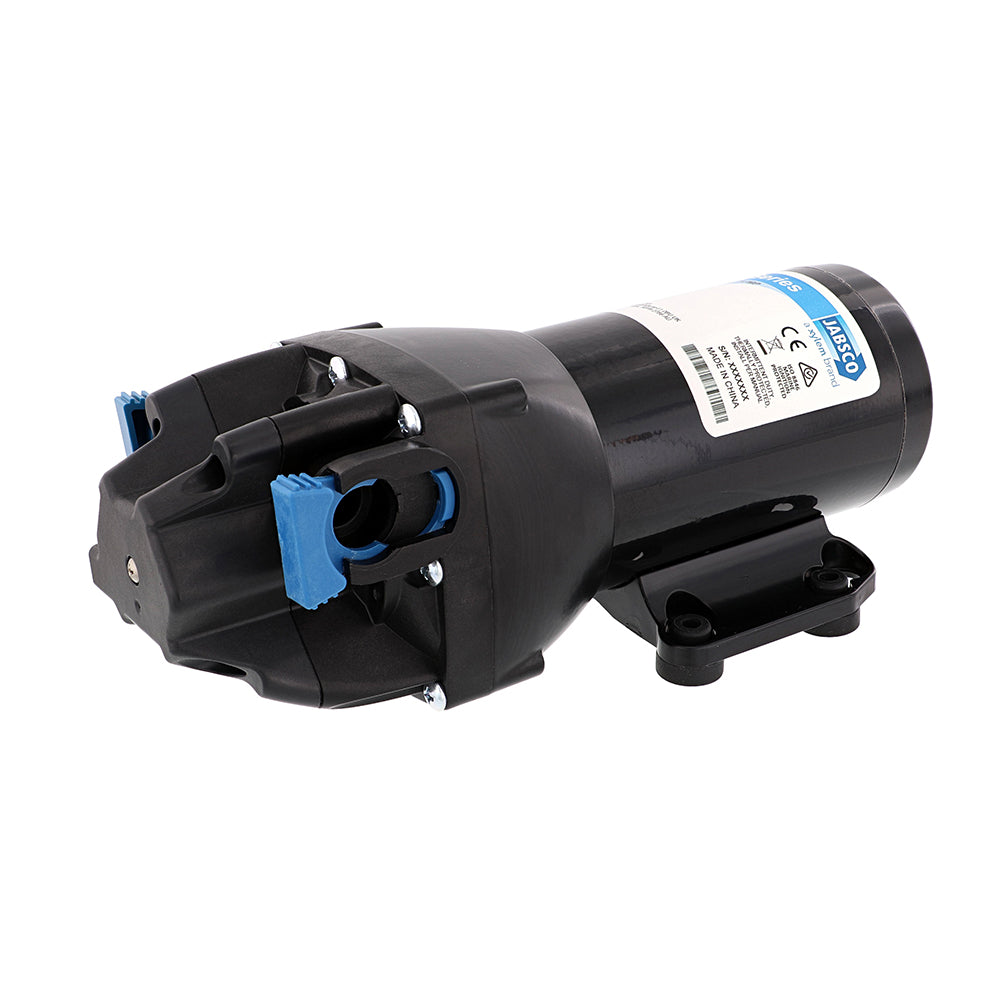

Jabsco Par-Max HD4 Heavy Duty Water Pressure Pump - 24V - 4 GPM - 60 PSI

Jabsco Par-Max HD4 Heavy Duty Water Pressure Pump offers exceptional water pressure performance tailored for marine and RV applications. Designed with a robust 24V system, this pump delivers an impressive 4 GPM (60 PSI) flow rate, making it an ideal choice for vessels needing reliable water pressure.

Key Features:

• Heavy Duty Construction: Built with a wider diameter motor, cast aluminum lower housing, and a powder-coated shell for improved longevity and pressure capability.
• Co-molded Diaphragm Technology: Ensures long life and durability, even under high pressure conditions.
• Self-Priming Capability: Allows for versatile installation up to 7 feet, making it suitable for various setups.

Ideal for boating enthusiasts and RV owners, this pump is supported by premium quality certifications (CE, ISO8846, RCM) to ensure satisfaction and reliability in performance.

Par-Max HD4 Heavy Duty Water Pressure Pump - 24V - 4 GPM - 60 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability
• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32°F – 140°F (0°C – 60°C)
• Dry self-priming capability: 7ft min (2.13m/min)
• Certifications: CE, ISO8846, RCM
• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
