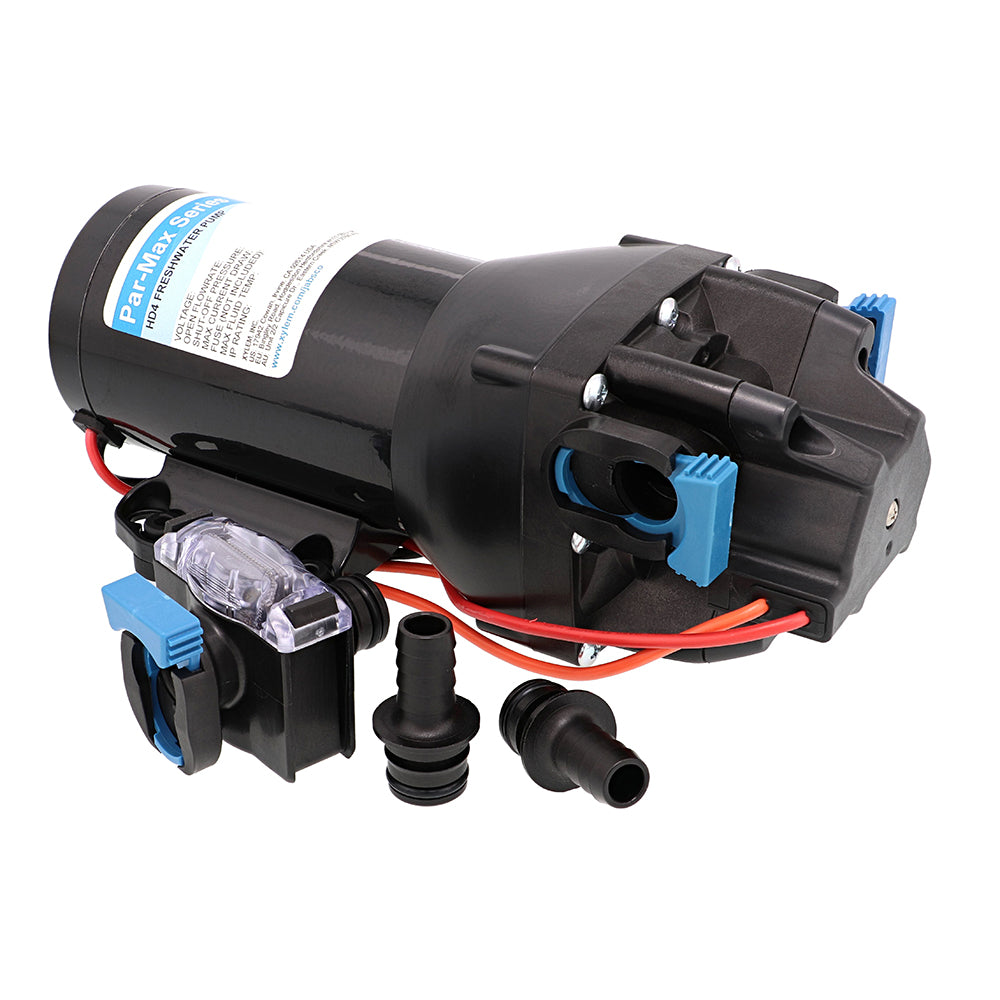

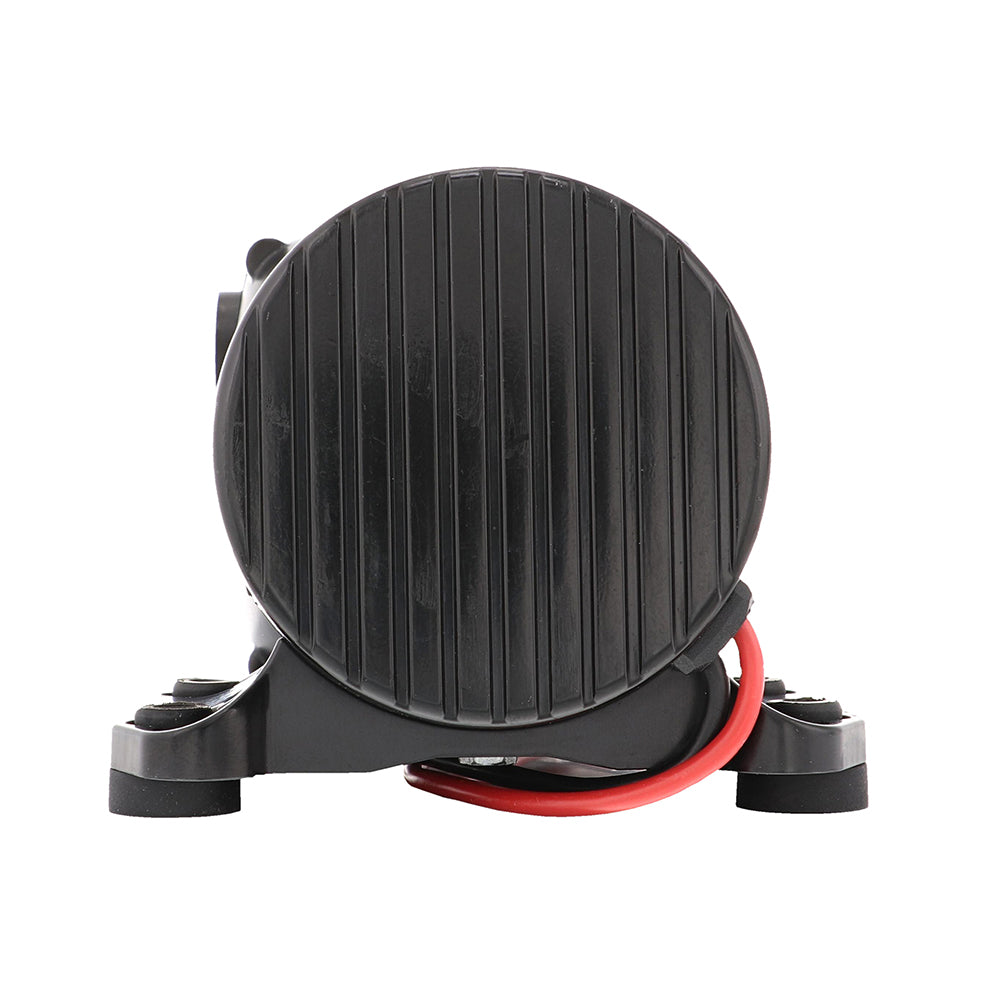

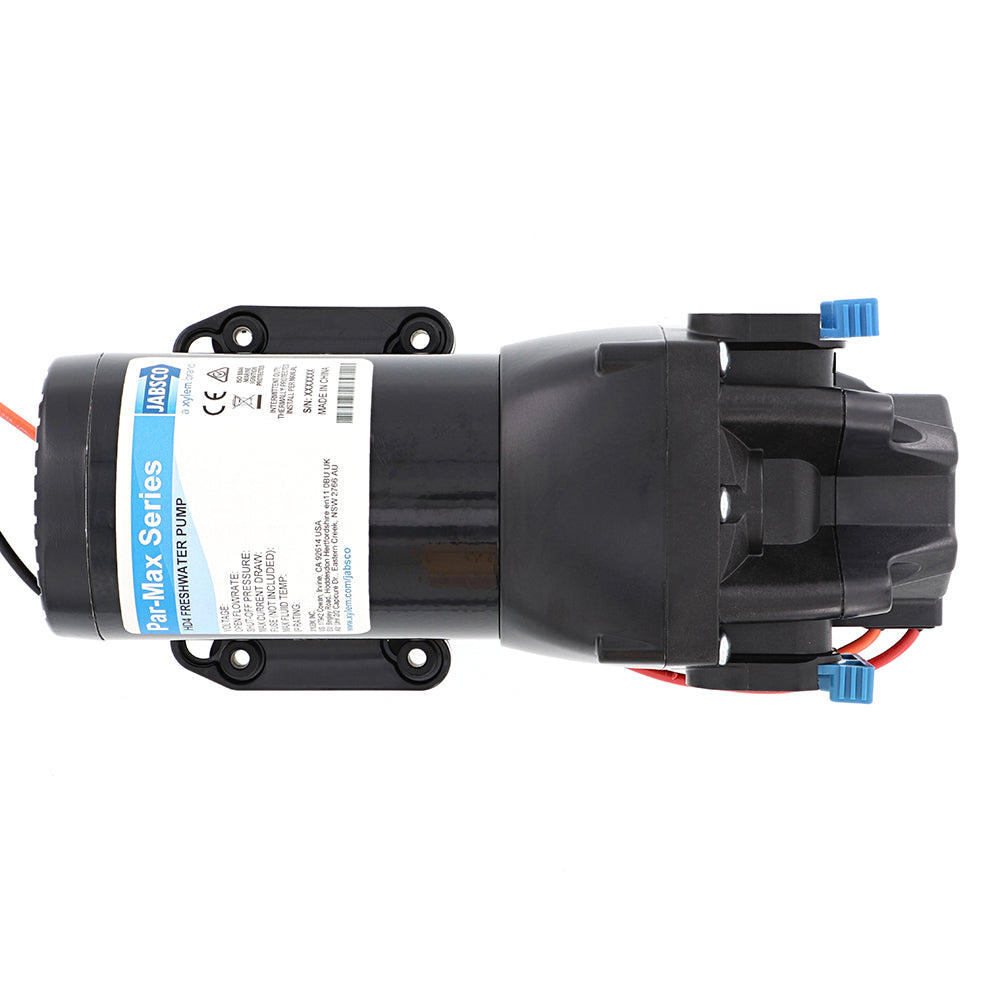

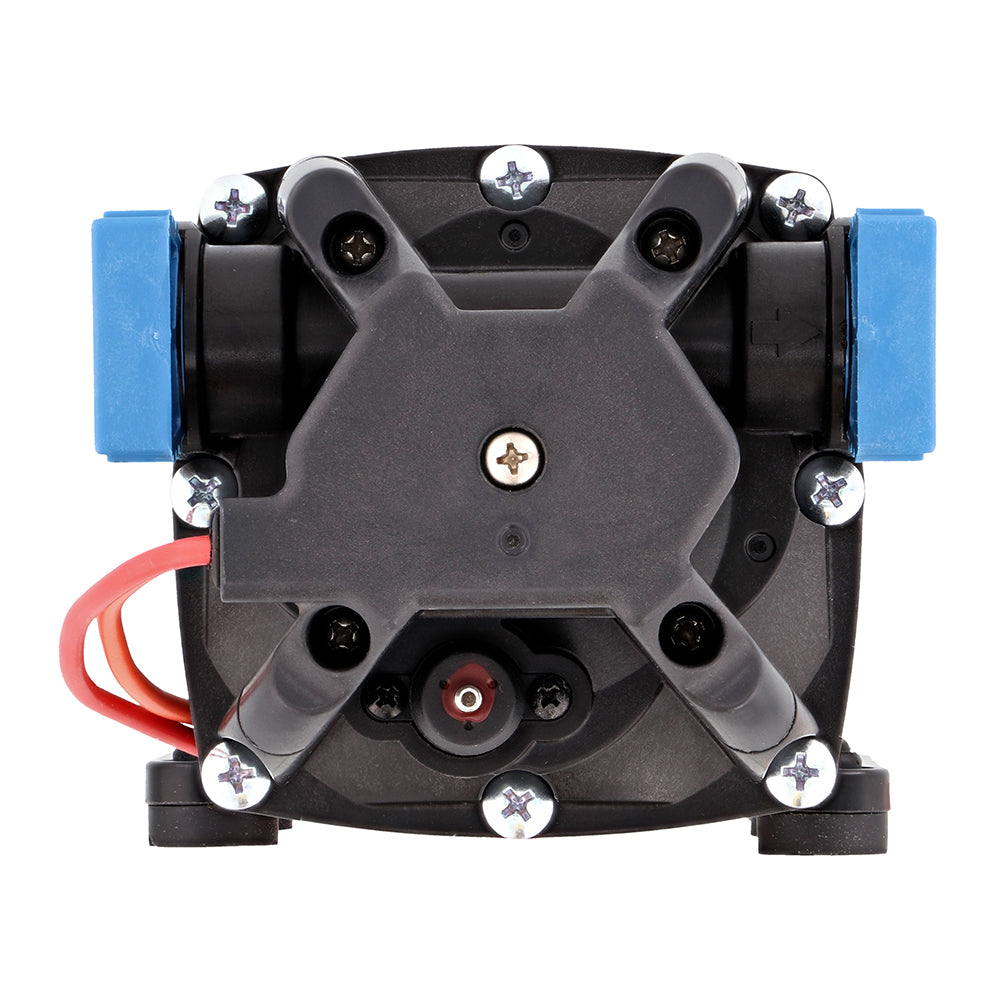

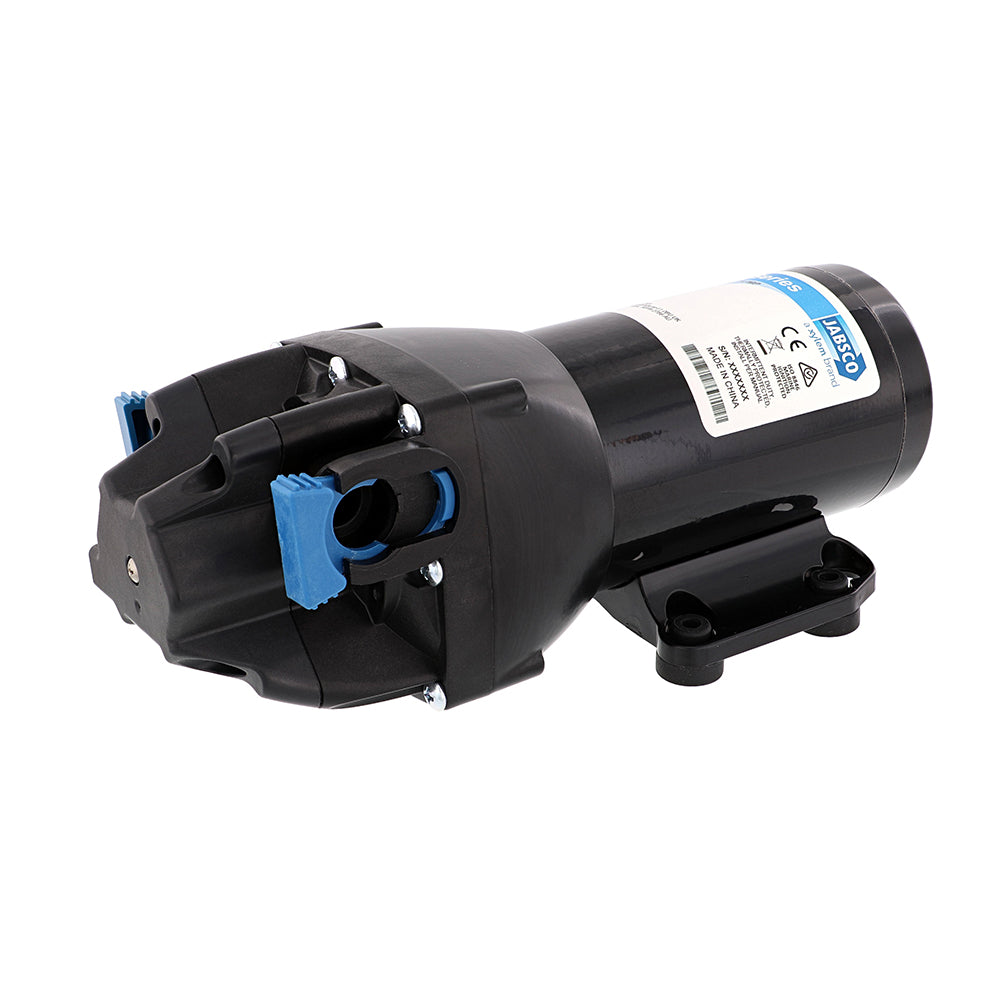

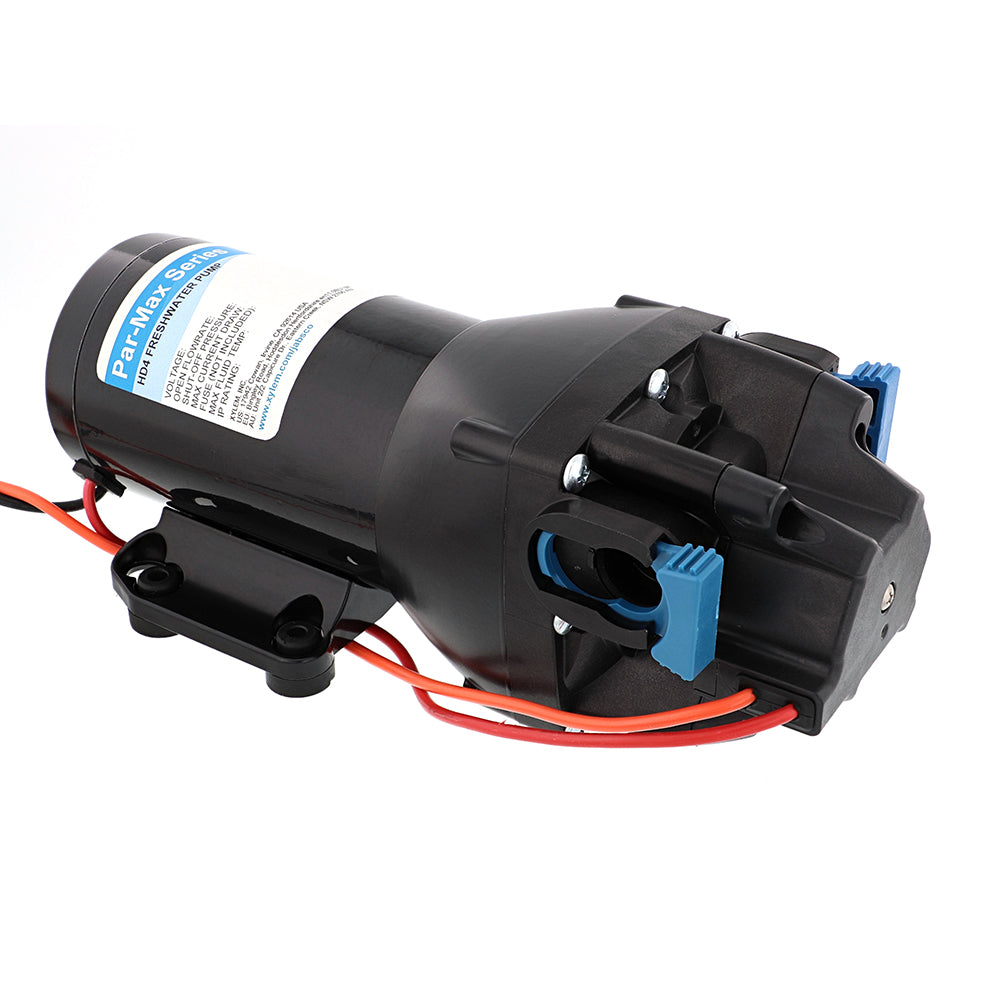

Jabsco Par-Max HD4 Heavy Duty Water Pressure Pump - 12V - 4 GPM - 60 PSI

Jabsco Par-Max HD4 Heavy Duty Water Pressure Pump by Jabsco offers exceptional water pressure performance tailored for marine and RV applications. With a strong 4 GPM flow rate and 60 PSI, this pump is designed for those who demand durability and reliability while on the water.

Key Features:

• Co-molded Diaphragm Technology: Ensures long life and durability even under high pressure.
• Heavy-Duty Construction: Cast aluminum lower housings and powder-coated shells enhance longevity and protect against corrosion.
• Self-Priming Capability: Operates effectively even when the pump is dry, providing installation versatility.

Ideal for boats, RVs, or any water-dependent vessel, this product is supported by quality assurance and certifications such as CE and ISO8846, ensuring optimal performance and peace of mind. Upgrade your water pressure experience with the Jabsco Par-Max HD4 today!

Par-Max HD4 Heavy Duty Water Pressure Pump - 12V - 4 GPM - 60 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability
• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32°F – 140°F (0°C – 60°C)
• Dry self-priming capability: 7ft min (2.13m/min)
• Certifications: CE, ISO8846, RCM
• Ingress Protection: IPX6
