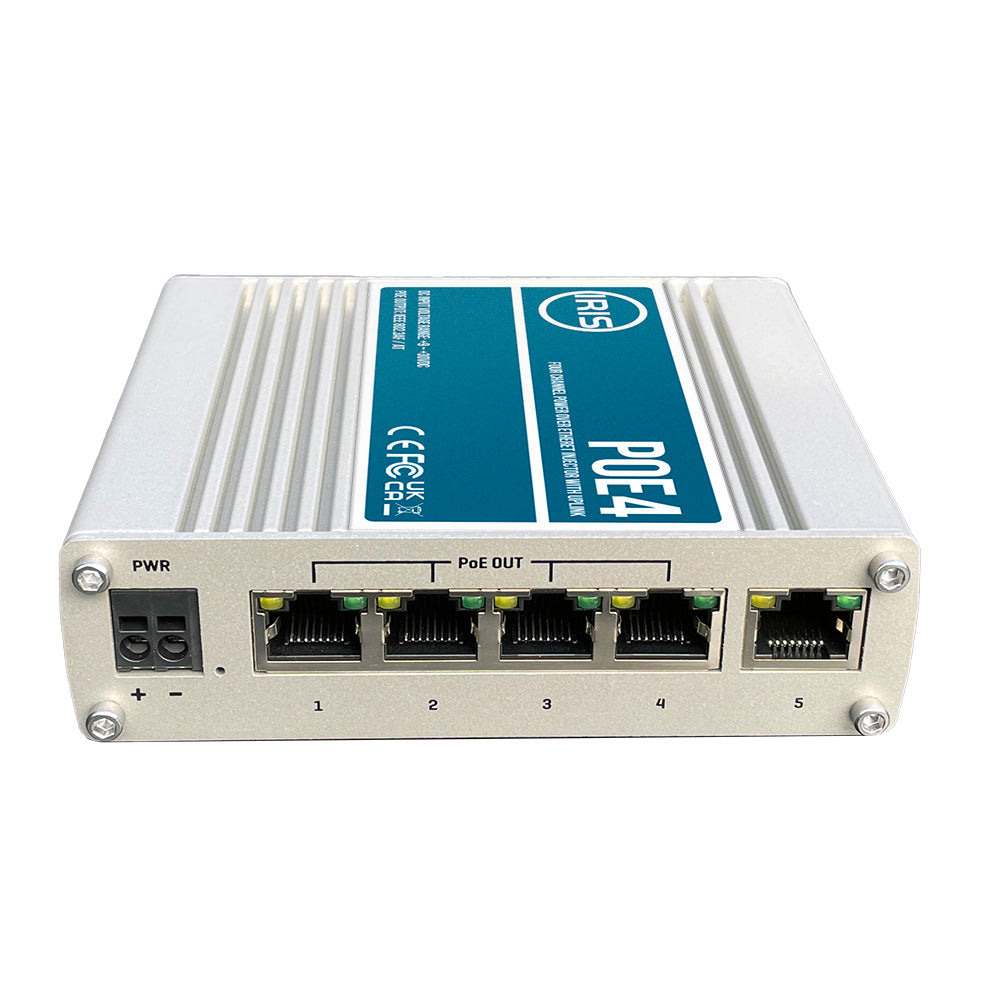

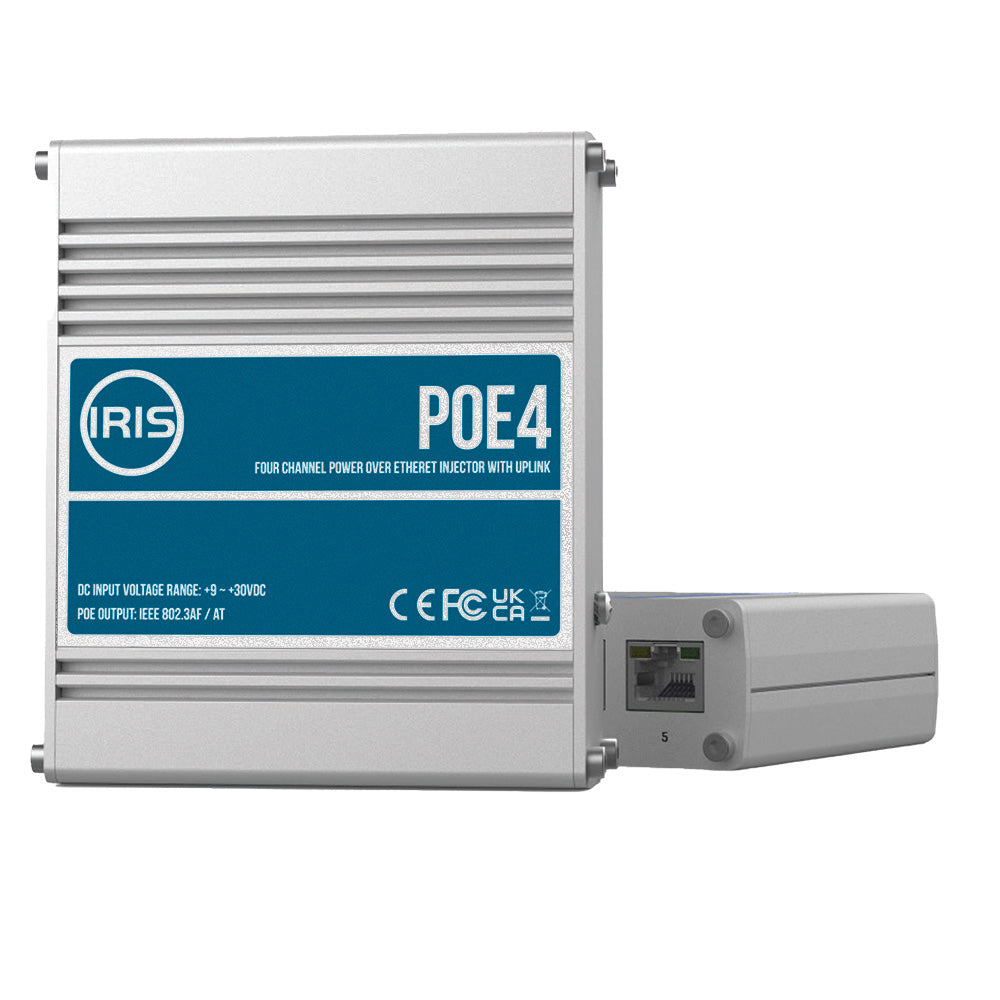

Iris Four Channel Uplink Power Over Ethernet Switch

The Iris Four Channel Uplink Power Over Ethernet Switch offers versatile power solutions tailored for vehicles and boats. Compliant with IEEE802.3af & 3at standards, this switch efficiently powers your devices with a wide input voltage range of 9-30VDC.

Key Features:

• Wide Input Voltage Range: Operates seamlessly between 9-30VDC, perfect for battery-powered applications.
• 60W Power Budget: Supplies up to 30W per port, powering multiple devices simultaneously.
• Plug and Play Design: Simplifies installations with no configuration needed; just connect and power.

Ideal for marine and vehicular applications, this product is supported by CE, FCC, and RoHS certifications, ensuring the highest standards of quality and safety. Experience the ease of a single network cable connection while enjoying reliable power delivery over a cable length of up to 100 meters.

Upgrade your power infrastructure today with the Iris PoE4v2 and enjoy unprecedented convenience!

Four Channel Uplink Power Over Ethernet Switch - IEEE802.3af & 3at Compliant - 9-30VDC Input - 48VDC Output

The new PoE4v2 from Iris Innovations is a four-channel plus uplink power over Ethernet switch that operates over a wide DC input voltage range of 930VDC making it perfect for powering IEEE802.3af/3at devices from battery sources such as boats and vehicles.

The PoE4v2 outputs 48 VDC to your PoE device with a power budget of 60W in total and up to 30W per port, providing power to up to 4 devices at 15W each, 2 devices at 30W each, or 1 device at 30W, and further 2 devices at 15W.

The unit features a passive uplink port to enable connections to other network switch equipment, routers, or modems.

The PoE4v2 simplifies your installation as only a single network cable is required to connect and power your devices, reducing cost and adding convenience.

Features:

• Compact and robust housing
• Wide input voltage range of 930VDC
• Perfect for boats and vehicles
• 60W power budget
• IEEE802.3af / 3at compliant
• Up to 30W per channel
• Plug and play operation - no configuration required
• 48VDC PoE output voltage to your devices
• Provides power to devices up to a 100-meter cable length
• Simplifies installations

Specifications:

• Weight & Dimensions: 0.350 Kg / 115 mm x 32 mm x 95 mm
• Material: Aluminium, soft anodized
• PoE Ports / Standard: Ports 14 IEEE802.3af / 802.3at + 1 Uplink Port (non PoE)
• Total PoE Budget: 60W across 4 PoE Ports
• Maximum Cable Length: 100 Meters
• Approvals / Standards CE, UKCA, FCC, IC, REACH, RoHS, WEEE / EN IEC 62368:12020+A11:2020 EN60945:2002 Section 9 & 10
• Input Voltage Range: 9 30 VDC
• Output Voltage: 48 VDC
• Power Consumption Idle: 0.8W / Max: 2.2W / PoE Max: 106W
• Environmental: IP30 - Install in a dry dust free environment. Do not expose to moisture.
