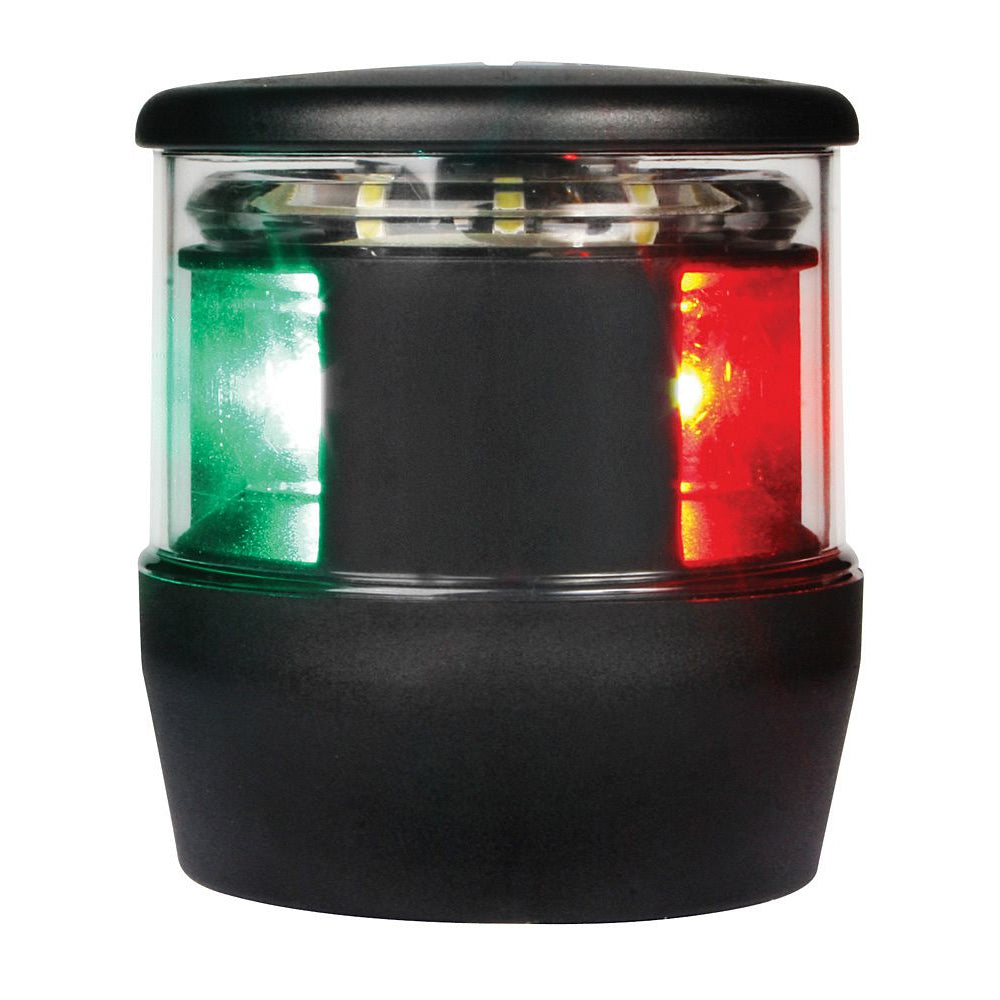

Hella Marine NaviLED TRIO Tri Color Navigation Lamp - 2nm

Hella Marine NaviLED TRIO Tri Color Navigation Lamp offers unparalleled visibility and safety on the water, tailored for boaters and maritime enthusiasts. This LED Tri Color lamp ensures that your vessel is clearly seen during nighttime navigation, with a minimum visible distance of 2 nautical miles.

Key Features:

• Ultra Low Power Consumption: Draws less than 3.5W, providing power savings on board without compromising on brightness.
• Completely Sealed Design: IP 67 certified and impervious to saltwater and contaminants, ensuring longevity and reliability in harsh marine conditions.
• Advanced Material Construction: Features a heavy-duty Grilamid® lens and housing that offers exceptional resistance to vibration and impact, ensuring safety even in the most demanding environments.

Ideal for yachts and recreational vessels, this product is supported by a unique installation system that guarantees secure attachment and reliable connections. Experience peace of mind with the Hella Marine NaviLED TRIO, designed for the serious mariner who values quality and performance.

NaviLED TRIO Tri Color Navigation Lamp - 2nm

LED Tri Color with Anchor navigation lamp.

Advanced materials and state of the art technology for reliability, efficiency and safety at sea.

Ultra low current draw. Power saving on board.

Port, Starboard and Stern draws less than 3.5W

Fully sealed for life. IP 67 Certified.

Completely sealed, impervious to saltwater and contaminants

Safe and highly visible.

Hella marine lens and optics technology ensures ultra precise horizontal and vertical cut-off angles, clearly indicating a vessel’s movement and heading

Ultra durable materials. Ultra long service life.

Advanced heavy duty Grilamid® lens and housing, plus proven Hella marine LED technology combines to provide outstanding resistance to vibration, impact and shock loads. Relentless test programs have helped lift product reliability to new standards for ongoing performance and safety in the most demanding  conditions.

Unique installation and removal system.

The NaviLED®Trio installs on a unique 316 stainless steel mounting shaft for a secure attachment and reliable electrical connections.

Specifications:

• Material Description: UV resistant, high impact nylon
• Lens Material: UV resistant, ultra heavy duty Grilamid lens
• Mounting Shaft: 316 stainless steel
• Minimum Visible Distance: 2 Nautical Miles (Yacht)
• Cable: Pre-wired with 400mm of triple core marine cable
• Operating Voltage: Multivolt 9-33V DC (early version 8-28V DC)
• Voltage Protection: Spike protected to +500 volts Reverse polarity protected to -700 volts
• Power Consumption: Port, Starboard and Stern - Less than 3.5W combined All Round White / Anchor - Less than 1.5W
• Degree of Protection: IP 67 - Completely Sealed
• Weight: 400g (including cable)
• Approvals: BSH, IMO Col Reg 72, USCG, ABYC A-16, Maritime NZ
