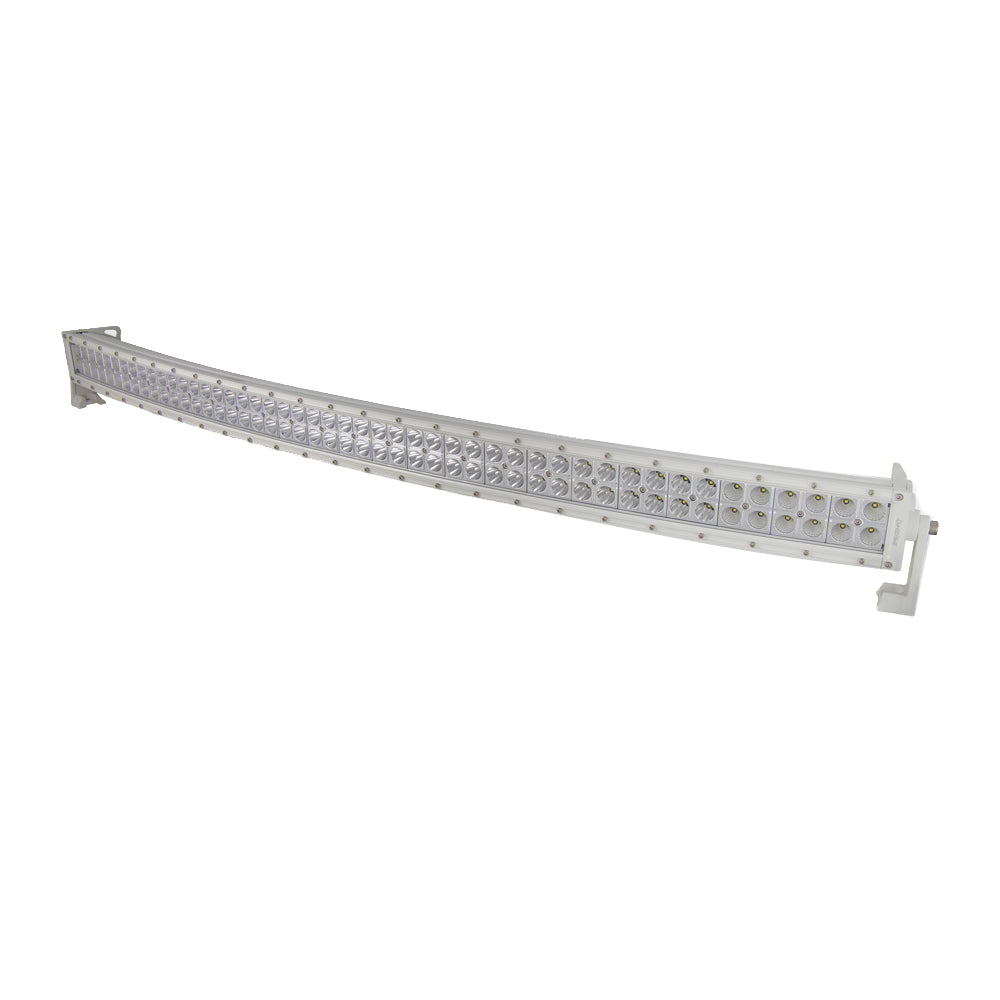

Heise Dual Row Marine Curved LED Light Bar 42 Inch Deluxe

Meet the Heise Dual Row Marine Curved LED Light Bar 42" Deluxe — the premium choice for boaters and off-road enthusiasts who demand superior visibility and rugged reliability.

Engineered for marine environments, this 42-inch curved light bar combines dual rows of high-performance LEDs, delivering broad coverage and long-range brightness where you need it most.

Key Features

• Power Output: 240 W from 80 x 3W CREE LEDs for intense illumination.
• Visibility: Raw lumens 19,200 and 780 lux at 10 meters to illuminate decks, docks, trails, and shoreline.
• Color Temperature: 6000K cool white for crisp color rendition and reduced glare.
• Beam Pattern: 90° combination flood and 8° spot beam for versatile coverage.
• Durable Build: Die-cast aluminum housing with a white coating for corrosion resistance and rugged use.
• Electrical Flexibility: 10-30V DC input, compatible with most marine and automotive systems.
• Size and Profile: 42-inch curved design that minimizes wind resistance while maximizing light spread.

Marine-Ready Performance

Designed for boats, trucks, and off-road vehicles, this deluxe light bar enhances safety and confidence in demanding conditions—whether you're navigating at night, docking in choppy waters, or exploring remote paths. The curved dual-row configuration delivers uniform illumination across the scene, reducing shadows and improving situational awareness.

Specifications

• Voltage: 10-30V DC
• Wattage: 240 W
• LEDs: 80 × 3W CREE LEDs
• Raw Lumens: 19,200
• Lux at 10m: 780
• Color Temperature: 6000K
• Beam Pattern: Combo 90° flood / 8° spot
• Housing: Die-Cast Aluminum
• Finish: White coating
• Length: 42 inches

Dual Row Marine Curved LED Light Bar - 42"

Specs

• Input Voltage: 10-30V DC
• Wattage: 240 W
• (80-3W CREE LEDs)
• Raw Lumens: 19200
• LUX at 10M: 780
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood 90 degrees/Spot 8 degrees

Construction

• Housing Material: Die-Cast Aluminum Housing
• Housing Color: White Coating with UV Inhibitors
• Membrane: Gore®
• Lens Material: PC
• Mounting Bracket: Die-Cast Aluminum
• Hole Dimensions:

• Brackets Turned Inward – 41 inches
• Brackets Turned Outward – 43.5 inches
• Mounting Bolt Drill – 25 inches

• Height of Light Bar Itself: 3 inches
• Depth of Light Bar Itself: 3.5 inches
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

Operation

• Operating Temperature: – 40 degrees C to +60 degrees C
• Current Consumption: 12 Amps at 13.8 Volts
• IP Rating: IP67
• Protections: Reverse Polarity
