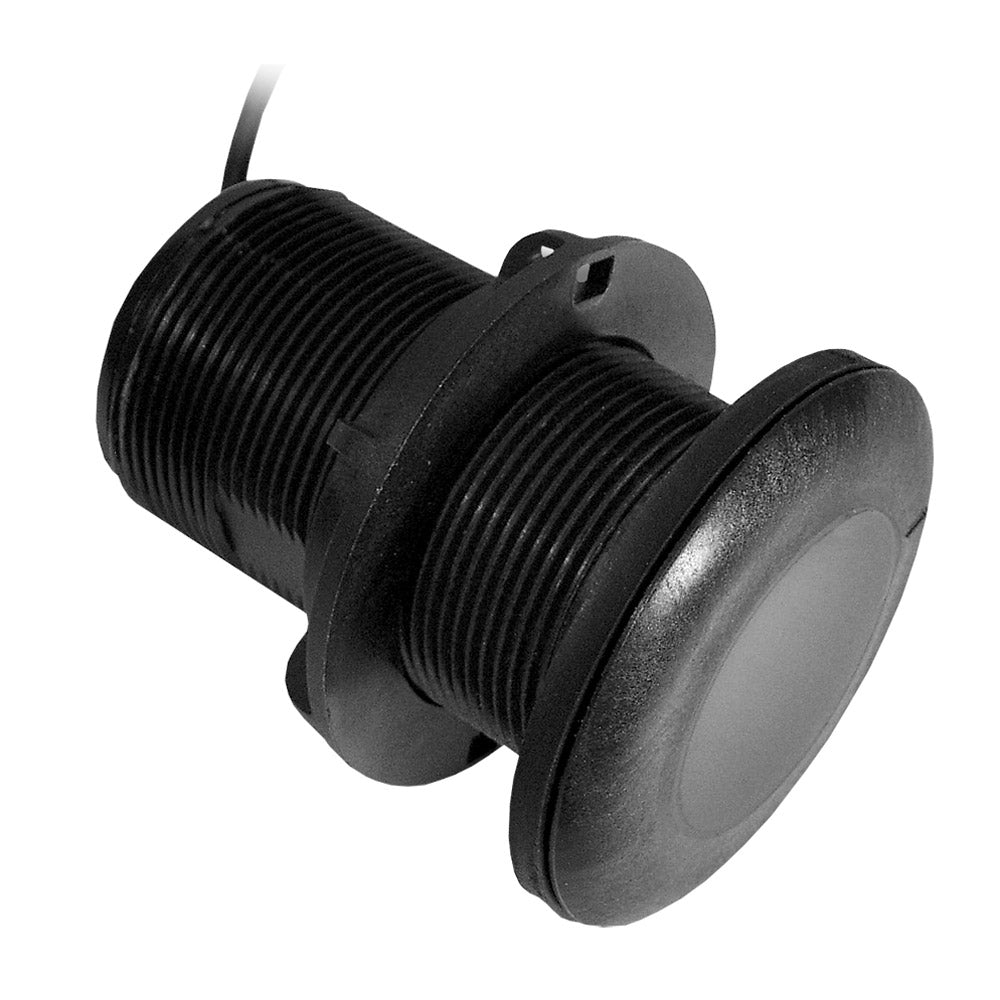

Garmin P19 Nylon 12° Tilt Transducer - 8-Pin

Garmin P19 Nylon 12° Tilt Transducer by Garmin offers exceptional echo returns for accurate depth readings tailored for cruising powerboats and sailboats. With its innovative design, this transducer minimizes drag while providing reliable performance in a compact form.

Key Features:

• Depth and Temperature Options: Choose between depth-only or combined depth and temperature measurements for comprehensive boating data.
• Fixed 12° Tilted Design: Ideal for hull deadrise angles between 8° to 15°, ensuring optimal vertical beam performance without a fairing.
• Robust Construction: Made from durable plastic, this transducer features a right-angle cable exit and includes a rubber washer for secure installation on irregular hull surfaces.

Ideal for boaters seeking reliable performance, this product is supported by Garmin's commitment to quality and satisfaction, ensuring you get the most accurate readings while on the water.

Tilted Element™ Thru-Hull

Minimize Your Drag
The P19 model have been the standard in low-profile models for many years. Their large sensitive ceramics allow deep echosounding up to 206M (700'). These nearly flush units minimize drag as only 5mm (2/10") of the housing extends outside of the hull. The plastic P19 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for moreaccurate depth readings.

Applications

• Cruising powerboats and sailboats

• Sailboats

Features

• Depth only or Depth and temperature

• Fixed 12° tilted versions for 8° to 15° hull deadrise

• Right angle cable exit offers low headroom and protection when transducer is stepped on

• Included rubber washer allows tightening of the hull nut to irregular hull surfaces

• Housings are ABYC H-27 compliant

• Optional temperature sensor

• Plastic housing

• Boat Size: Up to 9M (30')
