Garmin ECHOMAP™ UHD2 93sv LiveScope™ Ice Fishing Bundle w/ECHOMAP™ UHD2 93sv - LiveScope System

ECHOMAP™ UHD2 93sv LiveScope™ Ice Fishing Bundle with ECHOMAP™ UHD2 93sv - LiveScope System

Drill fewer holes and catch more fish with the LiveScope Ice Fishing Bundle. It includes a 9-inch ECHOMAP™ UHD2 combo with an LVS32-IF transducer and swivel pole mount.

Features:

• See up to 200’ in any direction with real-time sonar
• Use LiveScope™ forward mode so you know where to drill
• Use liveScope™ down mode so you can keep an eye on your jig and the fish
• Rugged, portable carrying case
• LiveScope Forward sonar shows up to 200’ all around you and below the ice, so you can locate schools of fish and know where to drill the next hole
• LiveScope Down sonar shows live sonar images of what is below the ice, so you can watch fish respond to your jig

ECHOMAP UHD2 Combo

Revolutionary real-time sonar pairs with a large 9-inch ECHOMAP UHD2 combo touchscreen display with a keyed assist, allowing you to see up to 200’ in any direction.

Two Modes One Transducer

LiveScope System offers two live-scanning sonar modes — Down and Forward. It features a transducer cable that stays flexible, even in freezing conditions

Garmin Navionics+ Maps

You get preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes.

Custom Combos

You can create custom pages that combine sonar, flashers, and maps on your display.

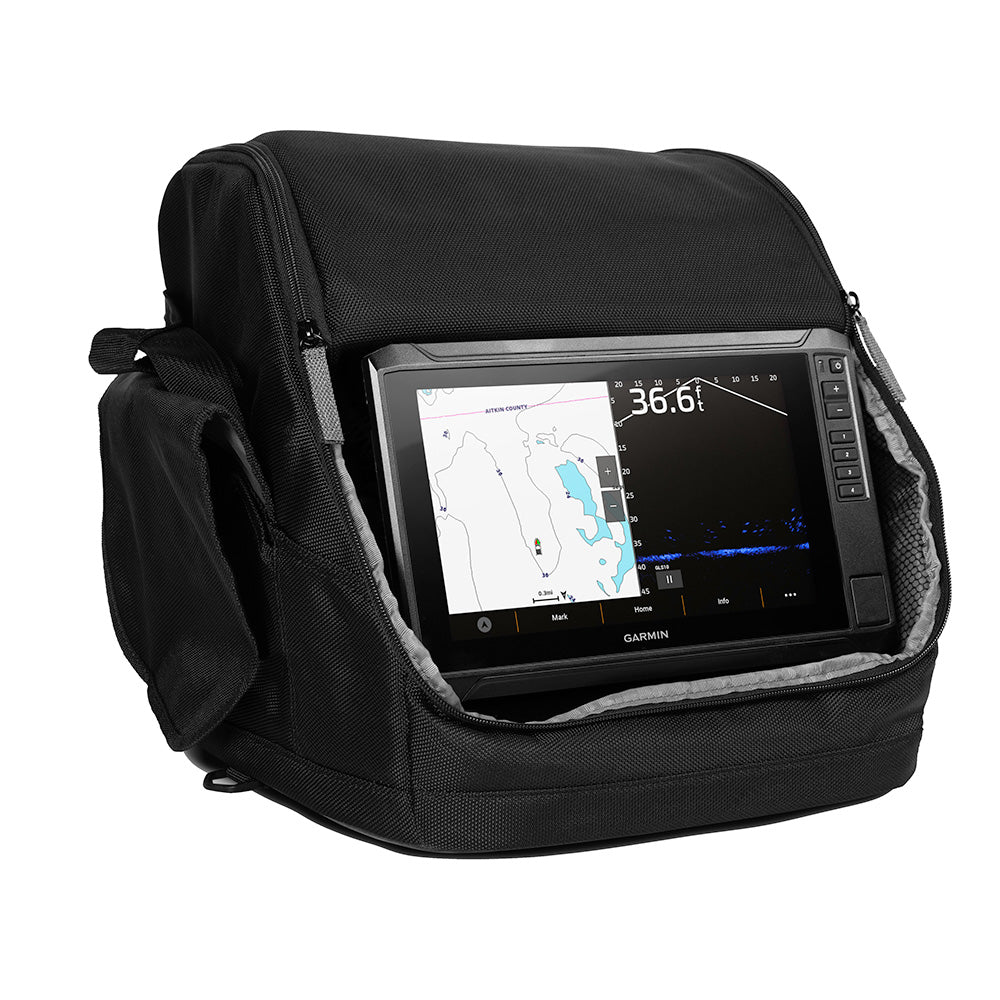

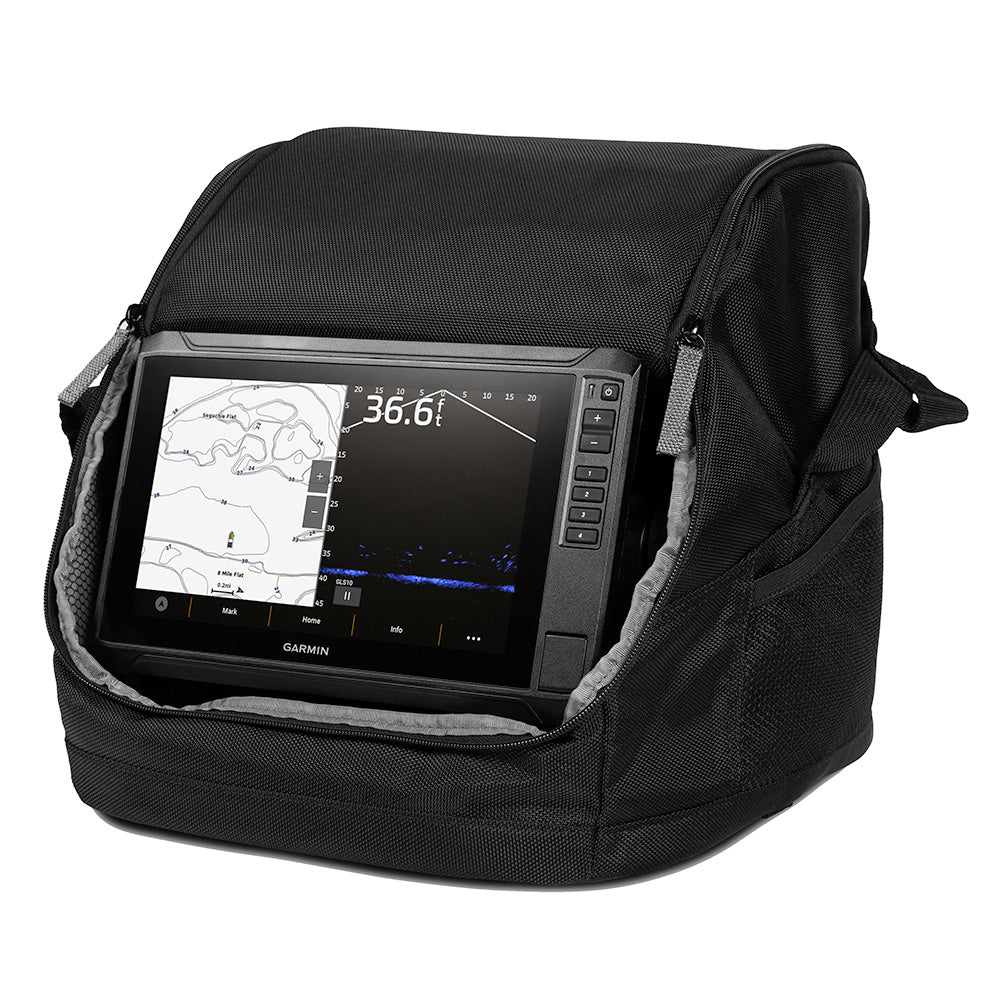

Carrying Case

Where you take your bundle is up to you. But the rugged, glove-friendly portable carrying case lets you easily transport it from hole to hole and season to season.

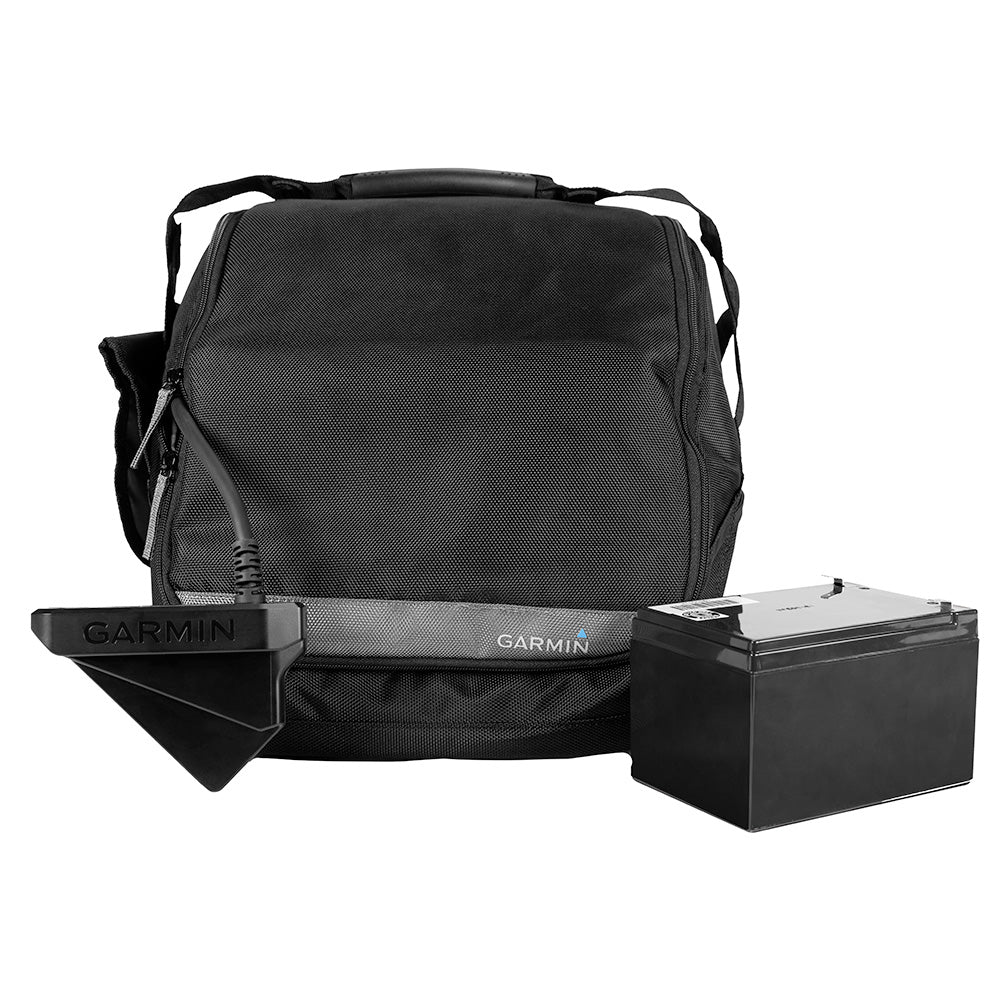

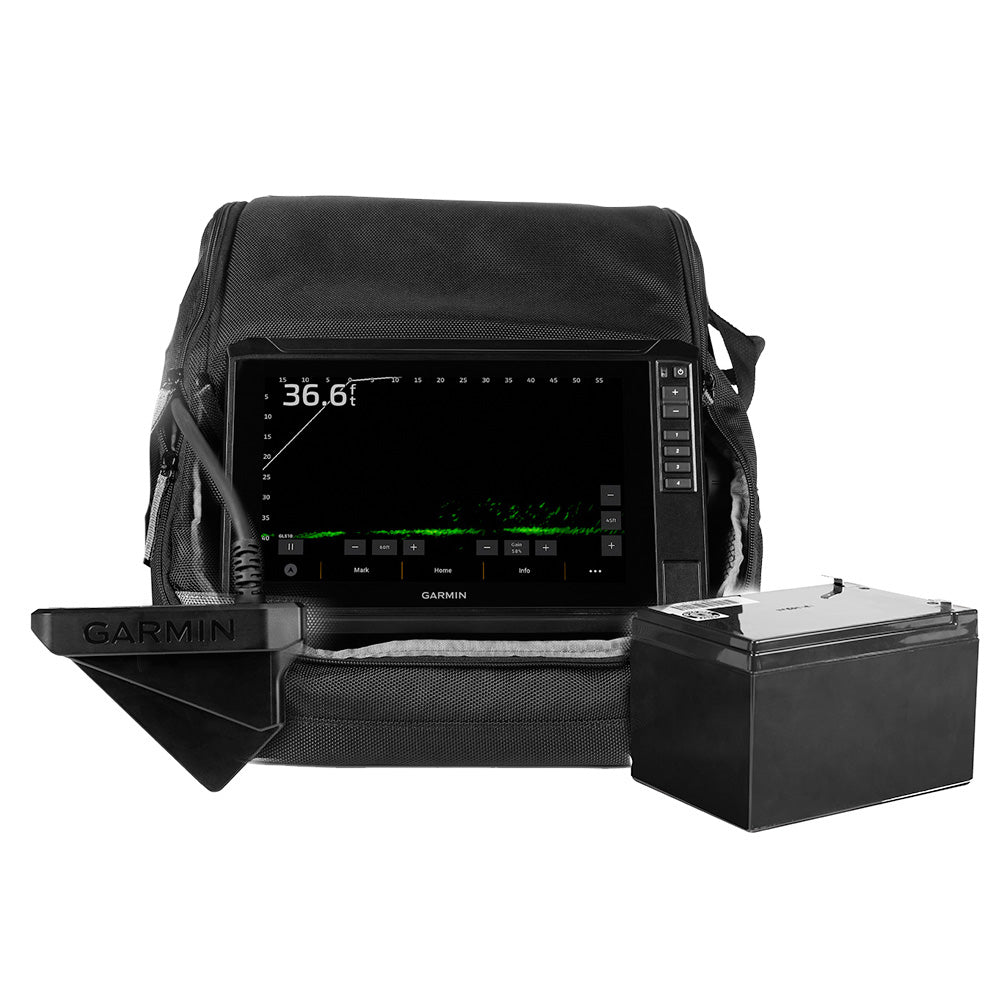

In the Box:

• ECHOMAP™ UHD2 chartplotter (version depends on mapping selected)
• LVS32-IF transducer
• GLS™ 10 sonar module
• Ice fishing pole mount
• Tilt mount
• Power cable
• Portable fishing bag with handle
• Rechargeable battery
• Battery charger
• Documentation

General Specifications:

• Dimensions: 13.8 x 12.2 x 13.0 in. / 35 x 31 x 33 cm
• Touchscreen: Yes
• Input: Touchscreen with Keyed Assist
• Display Size: 7.8 x 4.5, 9.0" in. / 19.5 x 11.5, 22.9 cm
• Display Resolution: 1024 x 600 pixels
• Display Type: WVGA, IPS
• Weight: 26.9 lbs / 12.2 kg
• Waterproof: IPX7

Maps & Memory:

• Accepts Data Cards: 1 microSD™ card; 32 GB maximum size
• Waypoints: 5000
• Track Points: 50,000
• Tracks: 50 saved tracks
• Navigation Routes: 100

Ice Fishing Details:

• Battery Type, Size: SLA, 7Ah
• Bag Size: Extra Large (XL)
• Included Transducer: GT10HN-IF
• Transducer Holding Feature: Foam float

Sensors:

• Has Built-in Receiver: Yes
• Receiver: 10 Hz
• NMEA 2000 Compatible: Yes
• GPS: Yes
• Glonass: Yes
• Galileo: Yes
• Beidou: Yes
• Supports Waas: Yes
• Supports Multi-Band, Multi-Constellation GPS: Yes

Built-in Maps:

• Built-in Auto Guidance+: Yes (downloadable via ActiveCaptain app)
• Garmin Navionics+ Inland & Coastal: Yes (see Additional)
• Garmin Navionics+ (Inland): Yes (see Additional)

Optional Map Support:

• Garmin Navionics+: Yes
• Garmin Navionics+ VIision+™: Yes
• TOPO: Yes
• Standrad Mapping: Yes
• Garmin Quickdraw Contours: Yes

Chartplotter Features:

• ActiveCaptain® Compatable: Yes

Electrical Features:

• Power Input: 9 to 18 Vdc

Sonar Features & Specifications:

• Displays Sonar: Yes
• Power Output: 500 W
• Traditional Sonar (Dual Frequency/Beam): Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
• ClearVü™: Built-in 260/455/800/1000/1200 kHz
• SideVü™: Built-in 260/455/800/1000/1200 kHz
• Panoptix™ Sonar: Yes
• Livescope; Yes

Connections:

• NMEA 2000® Ports: Yes
• Garmin Marine Network Ports: 1
• 12-Pin Transducer Ports: 1
• Bluetooth® Pairing: Yes
• Ant+ (Connectivity): Yes
• Garmin Wi-Fi Network (Local Connection): Yes

Additional:

• Garmin Navionics+ Inland & Coastal: 95sv Canada
• Garmin Navionics + (Inland): 95sv U.S. Lakes
