em-trak B953 Class B AIS Transceiver - 5W SOTDMA w/VHF Antenna Splitter

The em-trak B953 Class B AIS Transceiver offers unparalleled transmit power and performance tailored for maritime navigation and safety. This innovative device is ideal for commercial vessels, leisure boats, and marine enthusiasts seeking reliable AIS communication and enhanced situational awareness on the water.

Key Features:

• High Transmit Power (5W SOTDMA): Experience superior AIS receive and transmit performance, allowing you to detect more AIS information and targets at maximum range.
• Integrated VHF Antenna Splitter: Share your existing VHF antenna without performance loss, ensuring seamless communication.
• Compact and Lightweight Design: Weighing just 415g and featuring a FLEXI-FIT bracket system, installation is simple and secure, making it perfect for any vessel.

Ideal for boaters and marine professionals, this product is supported by global certifications including USCG, FCC, and Canada, ensuring top-notch quality and satisfaction.

Upgrade your marine safety with the em-trak B953 Class B AIS Transceiver and enjoy the peace of mind that comes with guaranteed connectivity and interoperability with any chart plotter or PC. Don't miss out on this essential upgrade for your vessel—order yours today!

B953 Class B AIS Transceiver - 5W SOTDMA with VHF Antenna Splitter

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

The B953 is a high transmit power (5W SOTDMA) AIS Class B transceiver that is small, and lightweight, yet delivers the very best AIS receive and transmit performance so you see more AIS information and targets at maximum range – all achieved with the least power consumption.

The B953 has an integrated VHF antenna splitter which enables the transceiver to share your existing VHF antenna without any loss of performance. With built-in intelligent connectivity, integrated next-generation GPS receiver & antenna, and a unique FLEXI-FIT bracket system, safe and secure installation is simple.

Features:

• Certified AIS Class B – 5W SOTDMA
• Integrated VHF antenna splitter
• Global certification - USCG / FCC / Canada / Europe
• SRT-AIS™ Transceiver Engine for superlative proven performance
• FLEXI-FIT™ bracket system for easy, convenient, and secure installation
• Internal high-performance GPS receiver and antenna (external antenna optional)
• Water, pressure spray, and damp proof (IPx6, IPx7 certified)
• Protected from vibration, shock, and extreme temperatures
• Small and lightweight
• Ultra-low power consumption – best in class
• Guaranteed connectivity and interoperability with any chart plotter or PC
• NMEA 0183 & NMEA 2000
• Automated health and performance monitoring
• Silent mode (transmit-off) function
• Enhanced RF screening to protect against electromagnetic interference
• Built-in power surge protection
• Fail-safe VHF radio operation

Physical & Environmental Specifications:

• Size (H x W x D): 150 x 115 x 45mm
• Weight: 415kg
• Operating temperature: -25°C to +55°C
• Storage temperature: -25°C to +70°C
• Ingress protection: IPx6 and IPx7

Electrical Specifications:

• Supply voltage: 12V or 24V DC
• Supply voltage range: 9.6V - 31.2V DC
• Average current (at 12V): 245mA
• Peak current: 2.5A
• Average power consumption (at 12V): 2.9W
• Galvanic isolation: NMEA 0183 inputs only, NMEA 2000, VHF antenna port

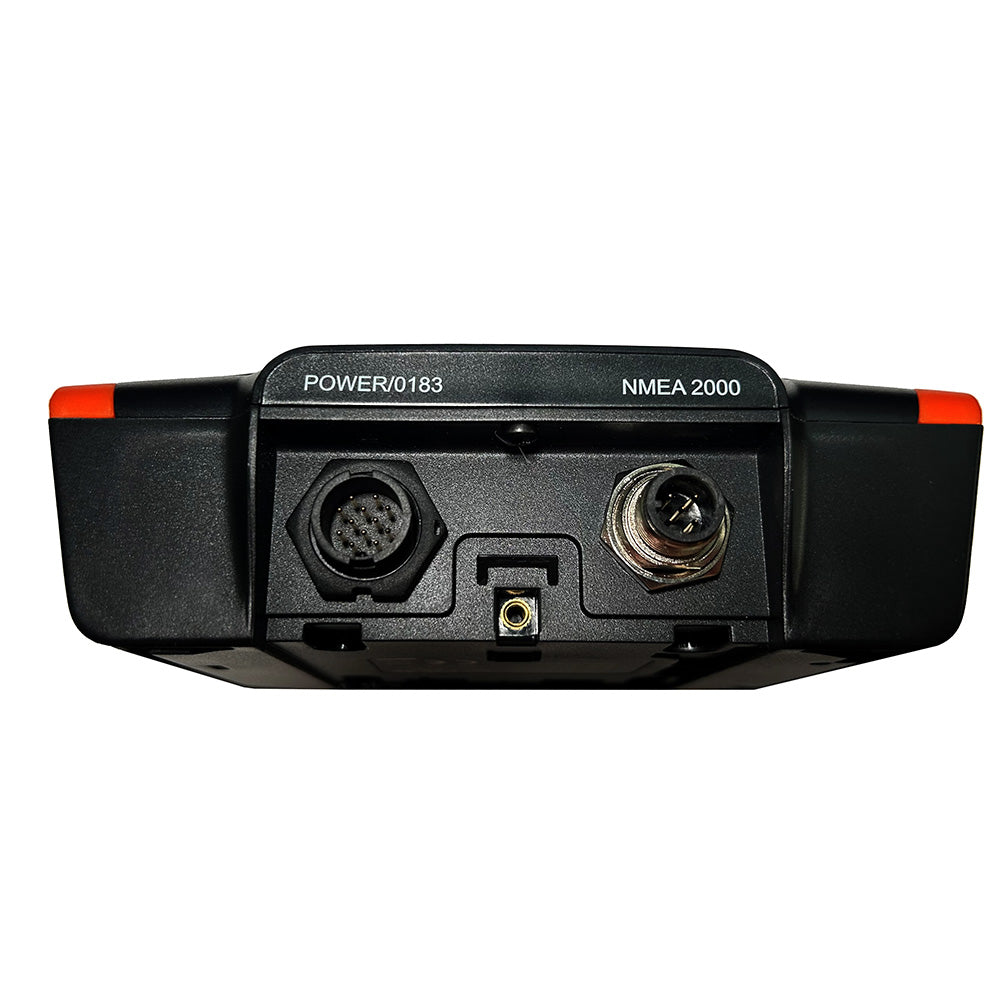

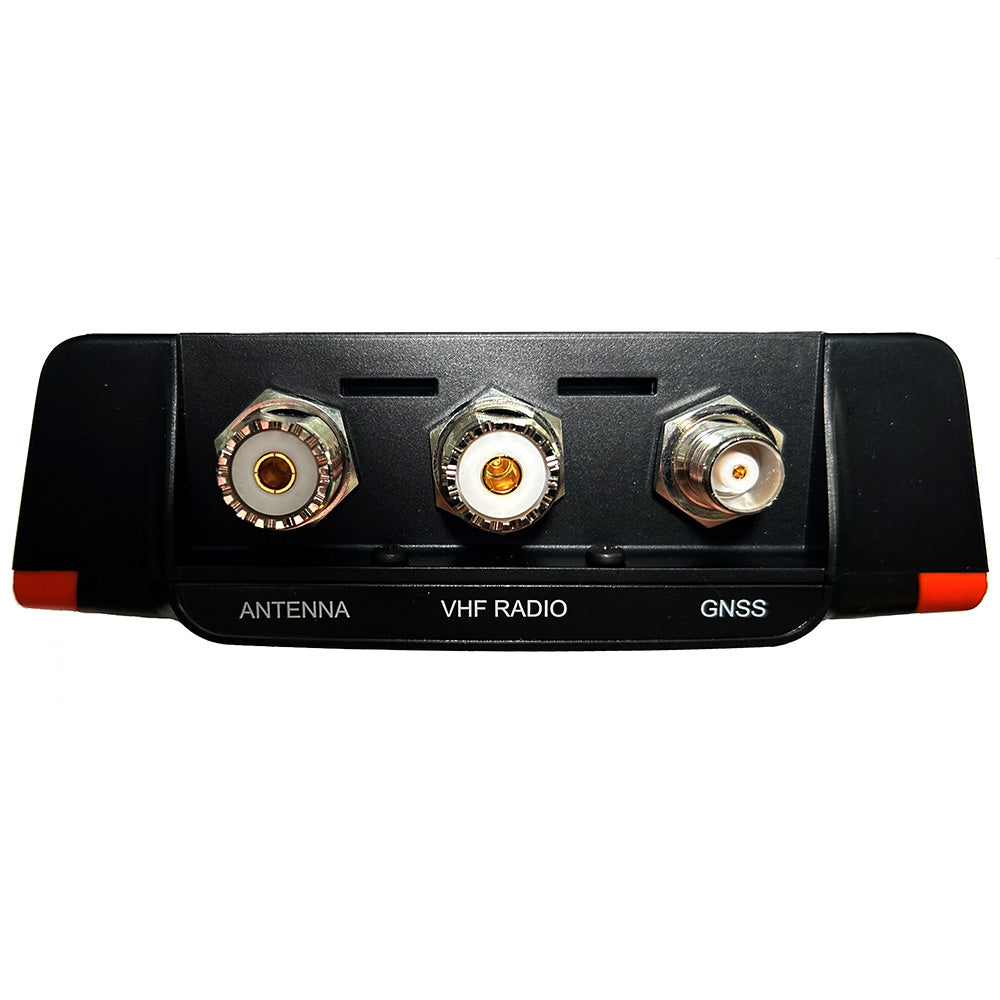

Connectors:

• VHF antenna: SO-239
• GNSS: TNC
• Power: 12-way circular multipole
• NMEA 2000: 5-way Micro-C connector
• USB: USB Micro-B

Data Interfaces:

• NMEA 0183: 2 x bi-directional ports
• NMEA 2000: NMEA 2000 Ed 3.101, LEN=1
• USB: PC virtual com port for NMEA 0183 data

Standards Compliance:

• AIS standards: IEC 62287-2 Ed. 2, ITU-R M.1371.5
• Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008
• Environmental standards: IEC 60945 Ed. 4
• Serial data interface standards: IEC 61162-1 Ed 5.0, IEC 61162-2 Ed 1.0
• NMEA 2000: NMEA 2000 Ed 3.101
• GNSS performance standards: IEC 61108-1 Ed 2.0, IEC 61108-02 Ed 1.0

GNSS:

• Systems supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo)
• Channels: 72
• Internal/external antenna: Internal or optional external antenna
• Time to first fix from the cold start: 26s

VHF Transceiver:

• VDL access scheme: SOTDMA
• Operating frequency: 156.025MHz - 162.025MHz
• Channel bandwidth: 25kHz
• Receivers/transmitters: 2 x receivers, 1 x transmitter
• AIS receiver sensitivity (20% PER): -111dBm
• AIS transmitter power: 5W (+37dBm)

User Interface:

• Indicators: Power, transmit timeout, error, silent mode

In the Box:

• 1 x AIS transceiver
• 1 x Power and data cable (2M)
• 1 x VHF radio accessory cable
• 1 x FLEXI-FIT™ mounting bracket
• Complete with screws & optional fixing tape
