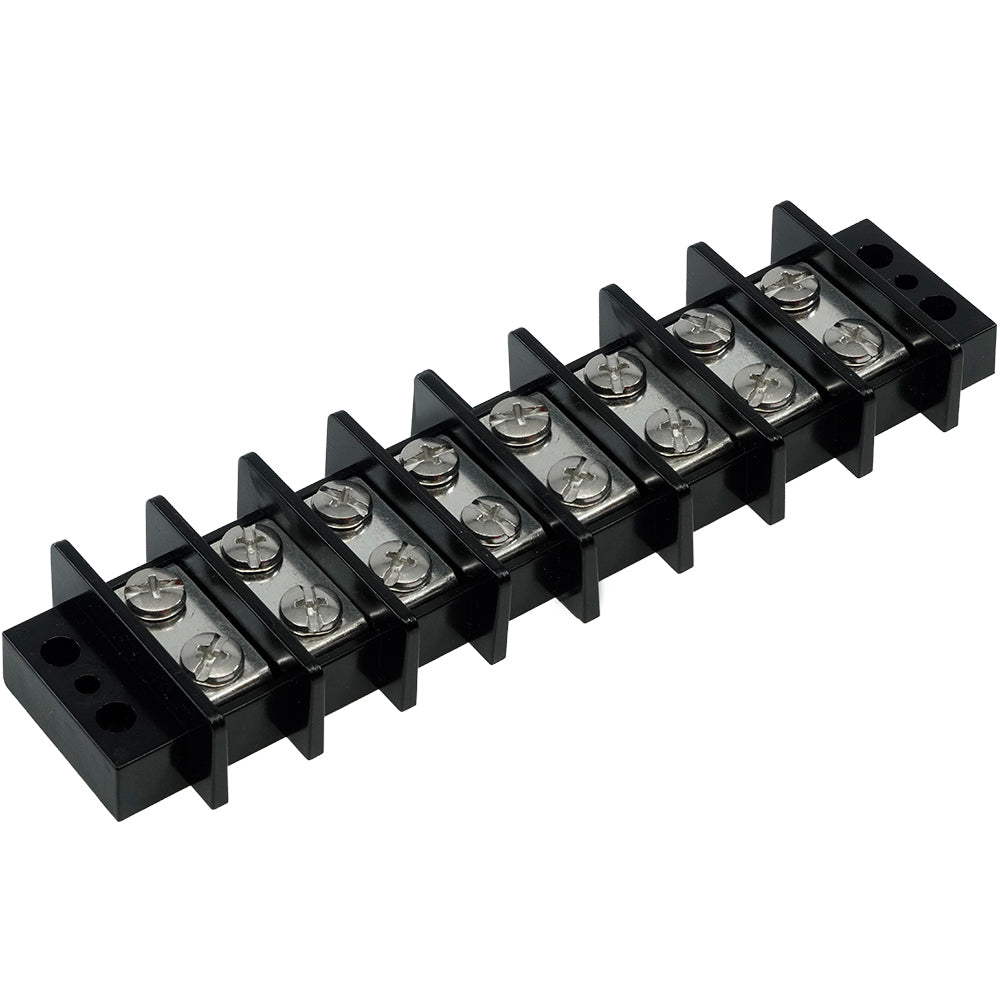

Egis Terminal Block 65 Amp 8 Circuit - Superior Marine Grade Reliability

Discover the Egis Terminal Block 65 Amp 8 Circuit, designed for exceptional performance in harsh marine environments. Constructed from marine-grade materials, this terminal block ensures long-lasting reliability, making it a must-have for all your electrical needs in marine applications.

With a robust design, the Egis terminal block features:

• 65 Amp Capacity: Perfect for high-demand applications.
• 8 Circuit Design: Easily manage multiple circuits with one compact unit.
• Screw Terminal Connections: Each circuit provides one input and one output, securely connected to separate copper alloy bus bars, ensuring reliable connections.
• 125 Volt AC or DC Rated: Versatile enough to handle both AC and DC applications, ensuring compatibility with various electrical setups.

What sets the Egis Terminal Block apart from typical fuse blocks & fuses is its commitment to quality and durability. As a trusted product from Egis Mobile Electric, you can be assured of optimal performance and safety in any marine condition.

Upgrade your marine electrical system today with the Egis Terminal Block, and experience peace of mind knowing your connections are built to last in the most demanding environments. Order now to enhance your setup with this reliable terminal block!

Terminal Block - 65 Amp - 8 Circuit

• Marine-grade materials ensure long-lasting reliability in harsh environment applications
• Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair
• 125 Volt AC or DC rated easily supports 12, 24, 36, & 48 Vdc systems, as well as 120/240 Vac applications

Features:

• Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs.
• Marine-grade materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.
• 125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.
• Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
• Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.
• Bullet-proof Construction: High-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.
• 4-Year Warranty: We stand behind our product's ability to meet your needs.

Specifications:

• Continuous Current (Amps): 65
• Max Voltage (Vac/Vdc): 250
• Dielectric Strength: 2000Vac
• Hardware Material: Stainless Steel
• CE Marked: Yes
• ROHS Compliant: Yes
