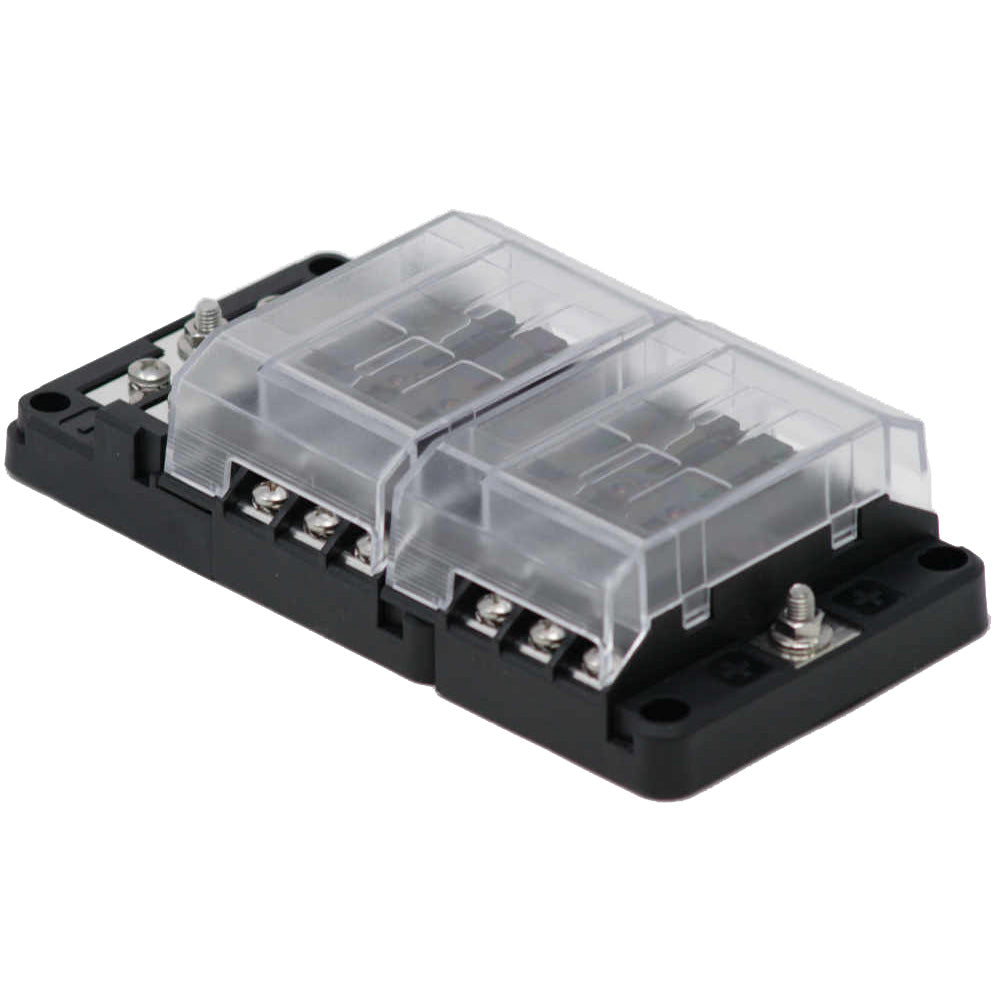

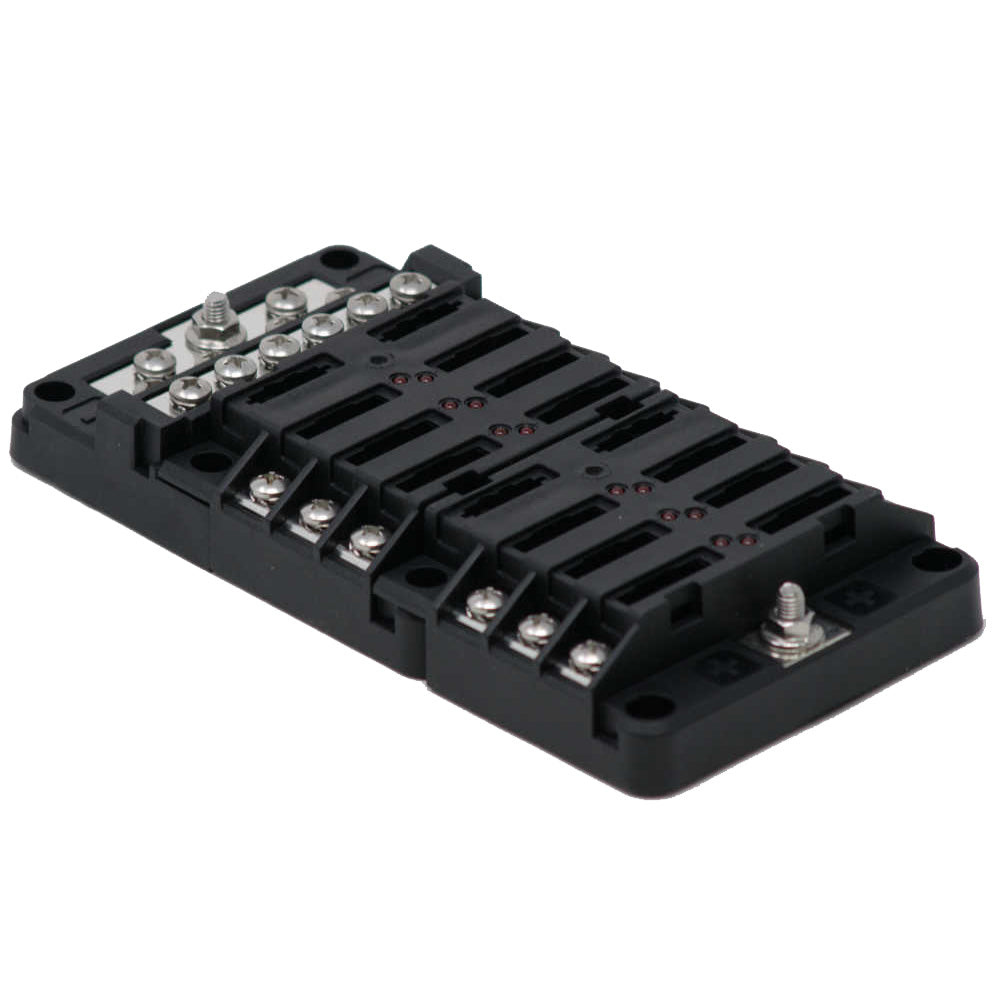

Egis RT Fuse Block 12 Position w/Ground & LED Indication

Egis RT Fuse Block 12 Position w/Ground & LED Indication offers superior circuit protection tailored for robust vehicle electrical systems. With a modular design, this fuse block can create seven unique configurations, reducing the part numbers you need to stock while providing exceptional functionality.

Key Features:

• Bullet-Proof Construction: Made with high-temperature materials and stainless steel self-locking hardware, this fuse block can be mounted anywhere on the vehicle without fear of damage.
• LED Fuse Diagnostics: Blown fuse LEDs provide instant visual alerts for faulty circuits, significantly speeding up troubleshooting and system fault corrections.
• Ground Block Included: Features a 12-position ground return block with low amp terminal screws, allowing for improved installation options in challenging environments.

Ideal for automotive enthusiasts and professionals, the Egis RT Fuse Block is designed for harsh conditions and supports SAE circuit protection standards. Rest assured, it is constructed with 100% non-ferrous, corrosion-resistant materials for lasting performance. Upgrade your vehicle's electrical system today and experience the exceptional quality and reliability that comes with Egis products!

This HTML product description is engaging, structured, and focused on both SEO and conversion. It effectively highlights the benefits, features, and unique selling points of the Egis RT Fuse Block, while also being scannable and easy to read.

RT Fuse Block 12 Position with Ground & LED Indication

This 12-position fuse block has a modular design that can produce seven (7) unique configurations from Egis 8028 & 8030 and reduce part numbers to stock for all build requirements. Also, this fuse block has a ground and LED indication.

Applications:

• Blown fuse LEDs speed up the correction of system faults and improve the ability to remotely diagnose customer issues.
• Harsh environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options.

Features:

• Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware allows mounting anywhere on the vehicle
• Protects branch circuits by accepting ATO style fuses ranging from 1 through 40 Amps
• Supports SAE circuit protection standards for thermal/short circuit events

Specifications:

• Maximum Current (Entire Block) Amps: 10
• Maximum Current (Per Circuit) Amps: 30
• Max Output Wire Size: #10 AWG
• Voltage Range VDC: 0-36
• Number of Fuse Positions: 12
• Compatible Fuse Types: ATO / ATC / ATF

Focal Features:

Spare Fuse Locations

Two locations per 6 circuits for spare or test resistors to reduce siren volumes during evaluation.

Stainless Steel Self-Locking Hardware

100 % non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.

LED Fuse Diagnostics

Blown fuse LED indication for each output circuit provides a clear indication of faulty circuits and eases troubleshooting issues remotely.

Cover/ Label Recesses

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

Ground Block Included

Includes a 12-position ground return block with multi-level low amp terminal screws for improved mounting.

Ground Block Separates

The ground block section optionally separates from the fuse block section, affording increased deployment options for challenging installations.
