Egis MRBF Terminal Fuse 50 Amp - The Ultimate Circuit Protection Solution
Introducing the Egis MRBF Terminal Fuse 50 Amp, designed specifically for those who demand superior performance and reliability in their electrical systems. This high-quality fuse is perfect for protecting circuits in larger battery banks, ensuring your electrical systems remain safe and efficient. With its ignition-protected design adhering to SAE/J1171-ISO8846 standards, you can trust that your circuits are in good hands.
Featuring a high interrupt rating, the Egis MRBF Terminal Fuse satisfies ABYC requirements, providing robust protection for DC main circuits. The transparency of the fuse allows for an easy visual check of the fuse status, enabling quick assessments without hassle.
- Color-Coded Amperage Rating: Easily identify the amp rating with clear color coding, streamlining your installation and maintenance processes.
- High Interrupt Rating: Meets rigorous safety standards, perfect for larger battery banks and demanding applications.
- Ignition Protected: Designed with safety in mind, preventing potential hazards in ignition-sensitive environments.
- Simple Installation: Engineered for easy integration into existing systems, making it an ideal choice for both professionals and DIY enthusiasts.
As a trusted product from Egis Mobile Electric, known for delivering exceptional electrical solutions, the MRBF Terminal Fuse stands out in the category of Fuse Blocks & Fuses. Equip your battery systems with this reliable fuse to ensure optimal performance and safety. Don't compromise on quality—invest in the Egis MRBF Terminal Fuse today!
Order now and enhance your electrical system's safety with the Egis MRBF Terminal Fuse 50 Amp!

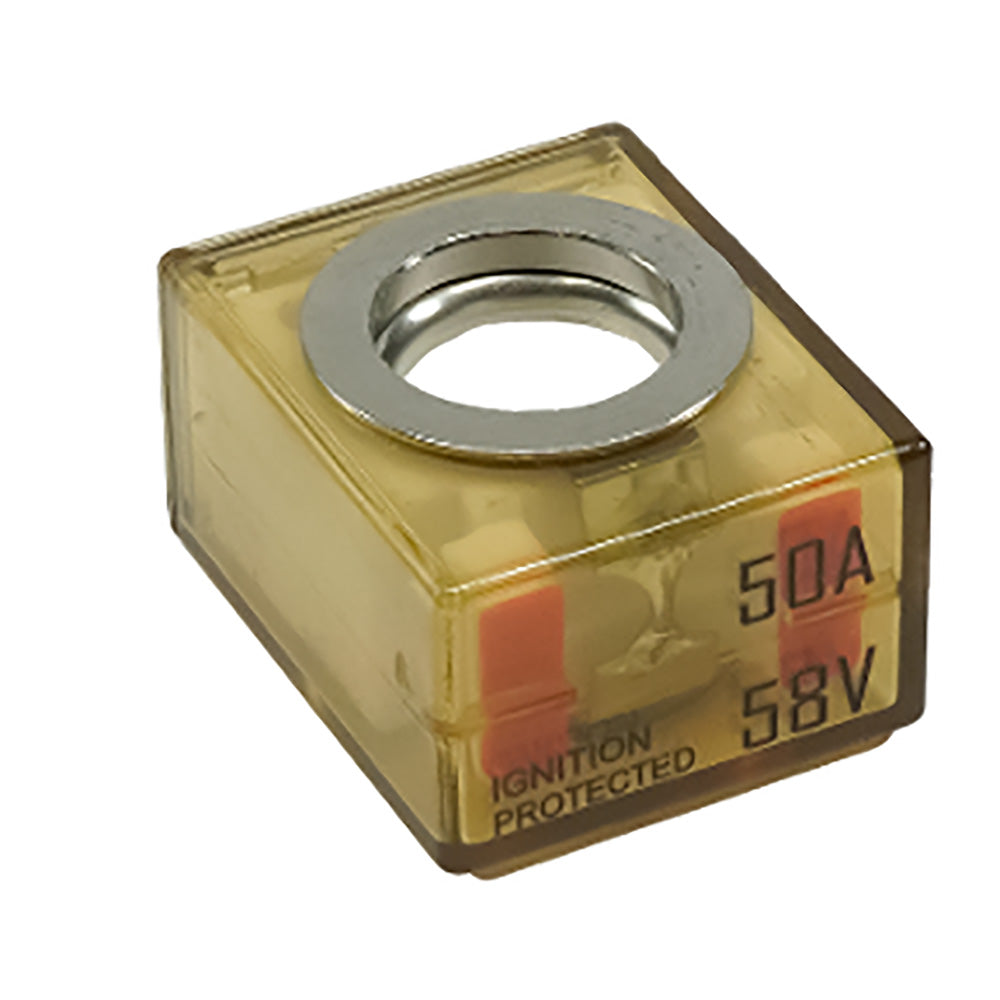

MRBF Terminal Fuse - 50 Amp
- Transparent easy visual of fuse status
- Ignition-protected SAE/J1171-ISO8846
- High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks
- Color-coded for easy ID of amperage rating
Features:
- Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
- High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power
- Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.
- Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
- 58 Vdc Rating: easily supports 12 to 48V nominal applications.
- High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
- 4-Year Warranty: We stand behind our product's ability to meet your needs.
Specifications:
- Continuous Current (Amps): 50
- Max Voltage (VDC): 58
- Interrupt Rating @ 14 VDC (Amps): 10,000
- Interrupt Rating @ 48Vdc (Amps): 5,000
- Interrupt Rating @ 58Vdc (Amps): 2,000
- Ingress Protection: IP66
