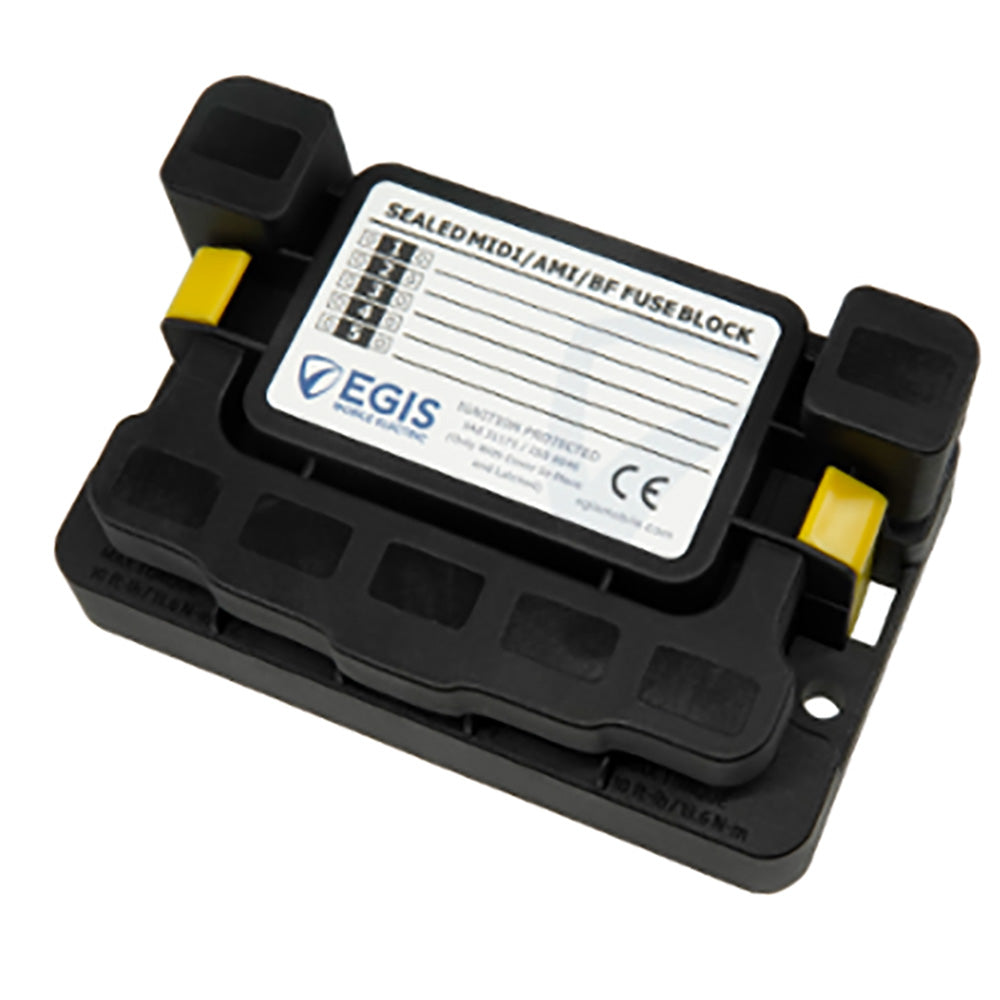

Egis MIDI 5x Fuse Block With Sealed Cover Marine Grade
Sealed marine grade fuse block designed to protect vital circuits aboard boats and other vessels. The Egis MIDI 5x Fuse Block supports 5 MIDI/AMI/BF type fuses, delivering reliable, dedicated protection for each connected load.
Key benefits include:
- Sealed, corrosion-resistant housing: Built to withstand salt air, humidity, and splashes, keeping connections secure.
- Five fused outputs: Protects add-on circuits from accidental shorts to frame ground or battery negative, and guards against overload events.
- Watertight sealed cover: Maintains a clean, safe electrical bay and simplifies service.
- Expandable design with busbars: Dual, triple, and quad link busbars let you scale power distribution as your marine system grows.
- Broad compatibility: Supports MIDI/AMI/BF fuse types for flexible integration into existing panels.
Ideal for boats, yachts, and other marine installations where reliability and protection are paramount. Invest in a rugged, expandable fuse block that stands up to the elements while safeguarding your critical electronics.
MIDI 5x Fuse Block with Sealed Cover
- Sealed marine grade construction fuse block compatible with 5 MIDI/AMI/BF type fused outputs
- Protects add-on circuits from accidental short circuits to frame ground or battery negative, or from overload events
- Expandable with dual, triple, and quad link busbars for plug-and-play install and complete switching/protection solutions
Features:
- Reduce Installation Space when combined with other Egis Mobile Electric power management devices and other sealed circuit breaker/fuse blocks.
- Expandable with Dual, Triple, and Quad Link Busbars for Plug and Play installation and Complete Switching/Protection Solutions.
- Bullet-proof Construction: Sealed to IP66/IP6K9K, high-temperature materials, Gore-Tex vent allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
- Protective Cover Stored 2 (Two) spare fuses and 4 (Four) screws. Easy to operate latching mechanism holds cover on securely.
Specifications:
- Total Continuous Current Amps: 500
- Max MIDI?AMI Fuse Value (Amps): 200
- Ingress Protection Rating: IP67
- Ignition Protected (SEA J1171)? Yes
- Output Stud Size: M6
- Input Stud Size: M8
