Dometic EnviroComfort ECD6KZ-HV AC Retrofit Kit - 6,000 BTU - 230V

The Dometic EnviroComfort ECD6KZ-HV AC Retrofit Kit offers year-round comfort with its reverse-cycle cooling and heating capability, tailored for marine environments. This compact air conditioning unit is designed to replace older systems in the 5,000 to 7,000 BTU range, ensuring seamless installation and enhanced efficiency.

Key Features:

• High-Velocity Blower: Features a rotatable design for both horizontal and vertical installation, maximizing space efficiency.
• Environmentally Friendly Refrigerant: Utilizes R-410A refrigerant for optimal cooling performance while being eco-conscious.
• Easy-to-Use Digital Control: Comes with the Dometic Passport I/O digital control and display, simplifying temperature management.

Ideal for boat owners and marine enthusiasts, this product is supported by a stainless-steel drain pan and a removable return-air filter, ensuring quality and satisfaction. With dimensions of 11.25" height x 16" width x 9" depth, the Dometic ECD6KZ-HV is space-saving and perfect for your vessel.

Upgrade your comfort on the water with the Dometic EnviroComfort Retrofit Kit today!

EnviroComfort ECD6KZ-HV AC Retrofit Kit - 6,000 BTU - 230V

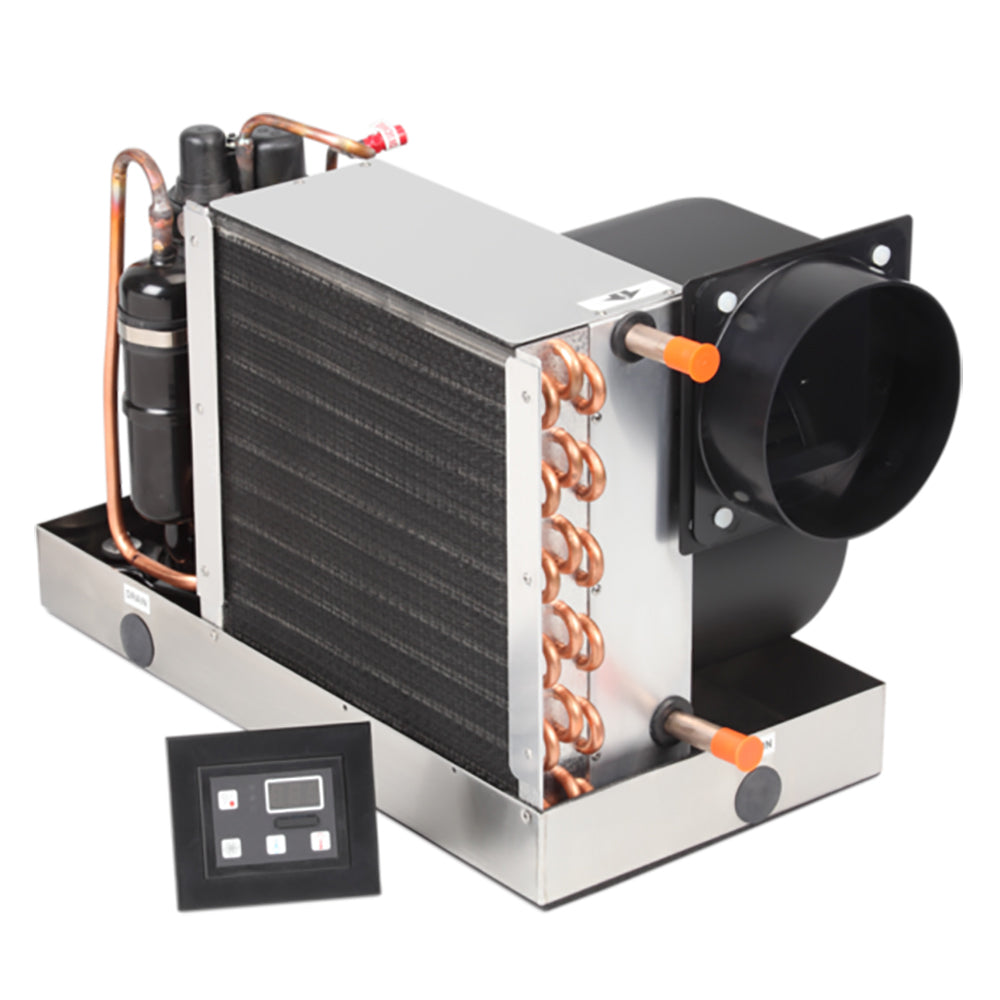

The Dometic Marine Air 6,000 BTU EnviroComfort Air Conditioning Retrofit Kit provides reverse-cycle cooling and heating capability so you stay comfortable onboard year-round.  This 6,000 BTU unit replaces an older self-contained air conditioner of comparable capacity in the 5,000 to 7,000 BTU range.

All units have high-velocity blowers with internal motors for a more compact installation footprint.  The blower can be rotated to a horizontal or vertical position for greater installation flexibility.  Units are built on an easy-to-plumb stainless-steel drain pan, and the pre-installed return-air filter is removable for cleaning.

ECD kits are ideal for replacing an existing air conditioning system or for a new air conditioning installation.  The Retrofit Kit includes the ECD self-contained air conditioning unit and digital control with bezel and is intended to replace an older self-contained air conditioner of comparable capacity.

Legacy Part Number - 207500307

Features:

• High-velocity, rotatable blower for horizontal or vertical installation
• Environmentally friendly R-410A refrigerant
• Easy to use Dometic Passport I/O digital control and display (P/N 9600005997)
• Plastic remote electrical box for convenience in mounting
• Stainless-steel drain pan
• Pre-installed return-air filter, easily removable and cleanable
• Small, compact, space-saving design

Specifications:

• Input voltage - 230 V
• Starting amps - 34 A
• Fuse Max. / Min. - 20 A/12 A
• Input frequency 50/60 Hz
• Refrigerant type - R410A
• Colling capacity - 6,000 BTU
• Min. supply duct size - 4"
• Seawater inlet connection - .625"
• Dimensions - Height 11.25" x Width 16" x Depth 9"

In the Box:

• Self-contained AC unit
• Digital control w/bezel and 15' cable
• Instruction manual

*Sold as an Individual
