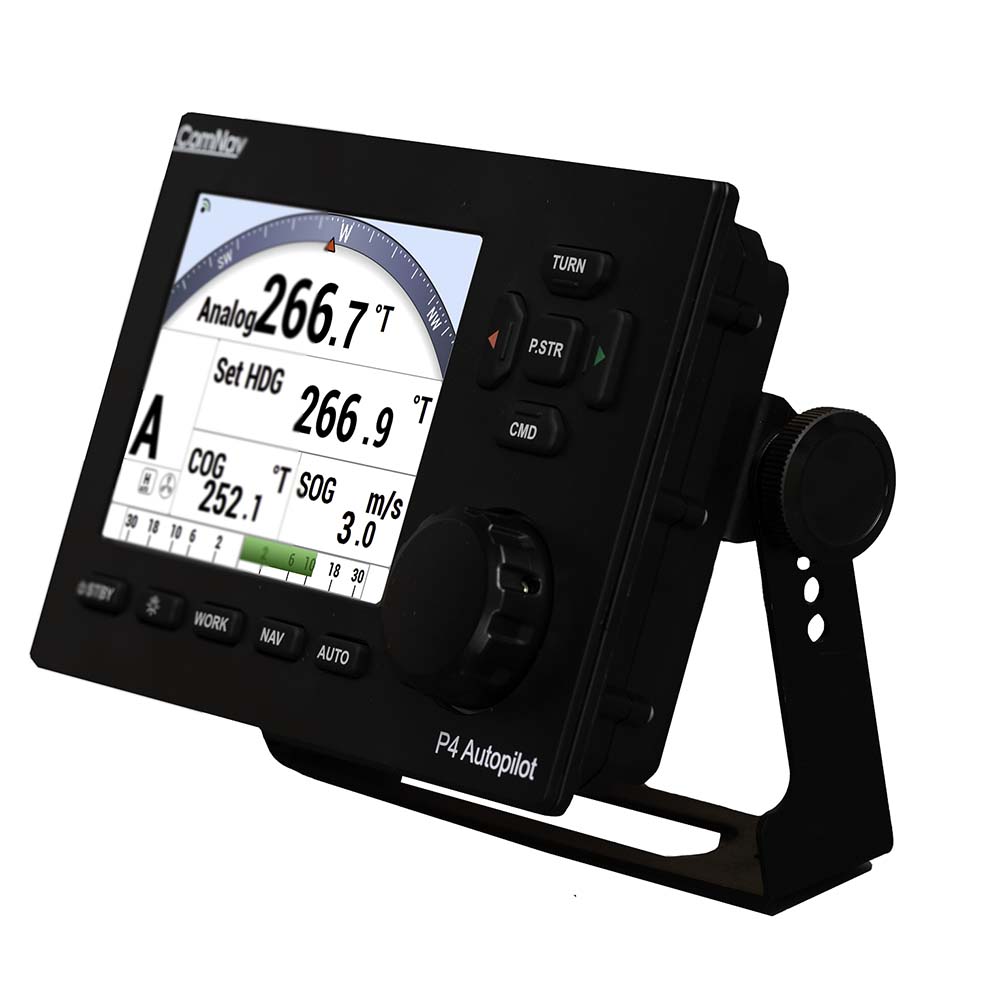

ComNav P4 Color Pack - Fluxgate Compass & Rotary Feedback f/Commercial Boats *Deck Mount Bracket Optional

P4 Color Pack - Fluxgate Compass & Rotary Feedback for Commercial Boats *Deck Mount Bracket Optional

Features:

• IST – Intelligent Steering Technology provides superior vessel steering capability
• ADAPTIVE steering for sea conditions and varying vessel speeds
• AUTO-SETUP – allows auto-drive detection, rudder response time, compass detection and calibration
• WORK Mode suitable for Towboats and Workboats
• NMEA 2000, ETHERNET, and NMEA 0183 interface
• Configurable for Fishing, Offshore Vessels, Workboats, Towboats and Yachts
• PRC- Proportional Rate Control feature provides gentle smooth response
• Multi-Station capability with security station lock
• SUNLIGHT viewable LED backlit 5.7” TFT LCD 640 x 480 display
• NAV Mode provide adaptive precise track steering
• ALC – Automatic Leeway Compensation for Drift, Tide & Wind
• Fully compatible with onboard instruments and steering systems
• Z-Drive interface allows 360 ͦAzimuth drive interface using +/- 10 Volts /4-20 milliamps analog signal (optional)
• Auto Thrust-assist for Dead-ahead slow or station keeping (optional)
• Multi-Language capability: English, Chinese, French, German, Norwegian, Spanish, Italian, Icelandic, and more
• Standard Mounting bracket – Flush Mount, Swivel mount bracket is optional
• IP67 Waterproof – Control Head, TS4, NF4 and WS4
• RoHS & CE compliance for EMI and RFI immunity

Additional Features:

• 9 level backlit LCD display
• Colour head gives you Red Night Vision mode for comfortable viewing in all conditions
• Pre-defined parameter sets for full or semi-displacement,planning hulls, stern drives and sailboats
• Multiple steering capability for Fast, Slow and Work modes
• Simple to use course knob with mechanical detent
• Multi-station capability with security station lock
• Automatic trim
• Adjustable yaw, turn rate and rudder settings
• PORT and STBD dodge buttons for collision avoidance
• Output for optional analog rudder angle indicator, up to 4 stations
• Fully compatible with onboard NMEA instruments and most steering systems

Specifications:

• Operating Voltage: 10 to 30 VDC
• Power Consumption: Average 0.5 Amps, 3 Amps Peak (Lower consumption capability with low backlight setting) Drive Output: 20 Amps
• Network: NMEA 2000
• Navigational Interface: NMEA 0183 inputs
• NMEA 0183 Output: Heading (10x per sec), Autopilot Status (1x per sec)
• Heading Reference: Fluxgate, Magnetic Compass, NMEA Compass or Heading Sensor GNSS compass
• Course Resolution: 1°
• Course Detection: 0.5°
• Control Head: Sunlight viewable high contrast LCD is 5.7” TFT LCD 640 x 480 VGA high resolution display
