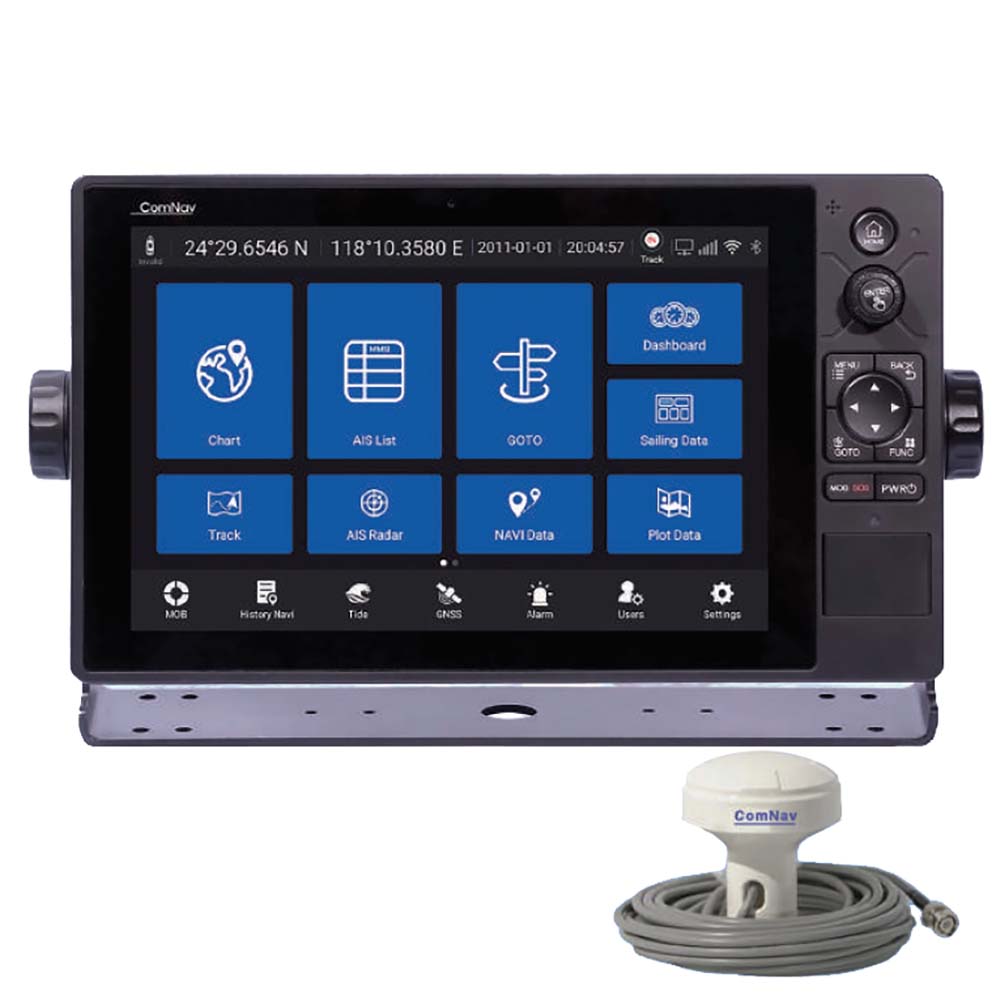

M10 DGPS Chartplotter with Integrated Class B AIS Transceiver
The Comnav M10 DGPS uses the ephemeris combined with a histogram to show the GNSS satellite situation and signal strength. It supports GPS and BDS positioning systems running together to improve accuracy.
The new digital repeater dial provides an easy-to-read and visualizable image for HDT, COG, SOG, BRG, RNG, Longitude, Latitude, XTE, ETA, DPT, TEMP, Wind, and Date.
Chartplotter Specifications:
- Operation System - Android 5.1 with OpenGL ES .0 & OpenCL 1.1
- CPU - Cortex-A17 Quad Core
- CPU Speed - 1.8GHz Bit
- RAM - 2GB DDR3 1333MHz
- Flash Memory - 16GB
- Video Engine - Mali-T764
- Keyboard - 1 Knob Encoder and 9 Function Keys
- Touch Panel - Capacitive Multi-Touch Screen
- Size - 10.1"
- Brightness - 800 cd/m2 (Max)
- Viewing Angle - Capacitive Multi-Touch Screen
- Resolution - 1280x800
- Power Voltage - DC 10v-36v
- Power Consumption - 14W or less (24 VDC)
- Audio - 1W
- Micro SD Card Slot - Supports Two 128G High Speed Micro-SD Cards
AIS Transceiver Specifications:
- Frequency - 156.025 - 162.025MHz
- Bandwidth - 25KHz
- Modulation - GMSK/FM
- Data Rate - 9600bps
- Number of AIS Transmitters - 1
- Number of AIS Receivers - 2 Channels: Channel A CH87B (161.975MHz), Channel B CH88B (162.025MHz)
- Transmitting Power - 2W
- Rx Sensitivity - <-107 dBm @ 20% PER
