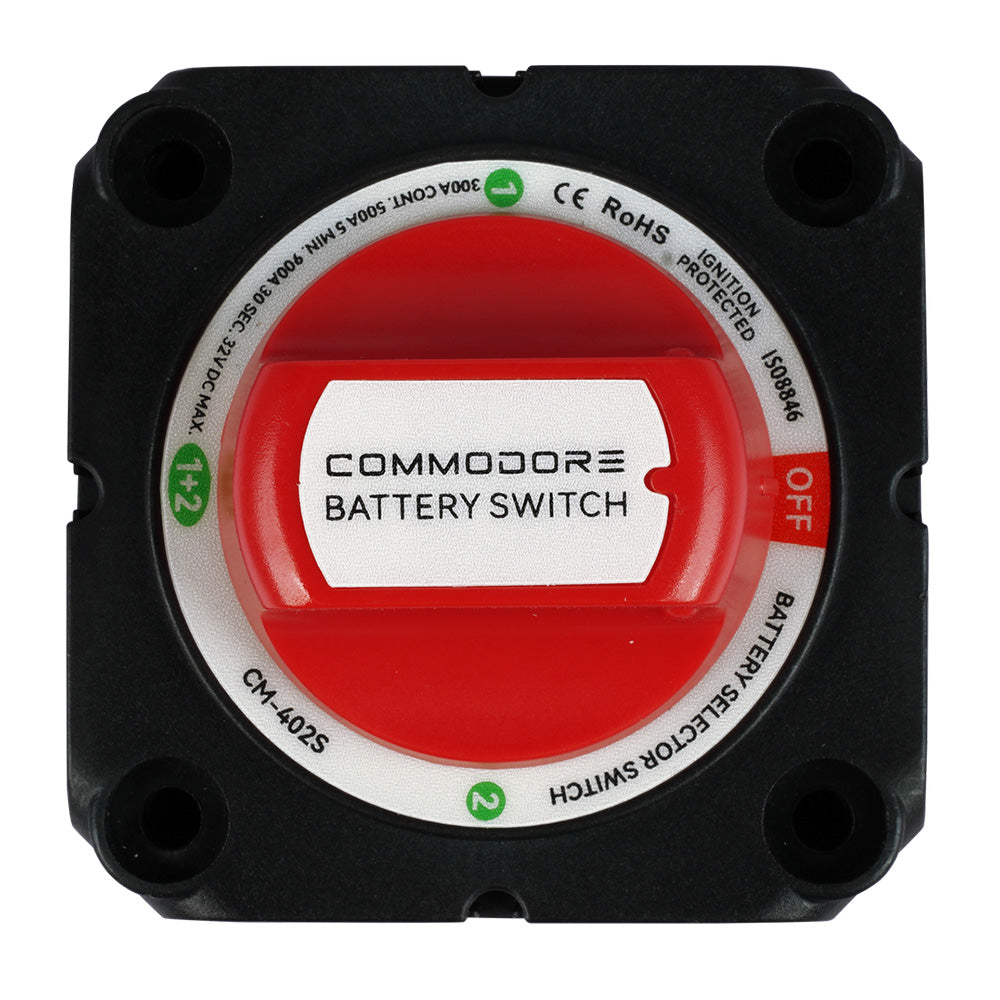

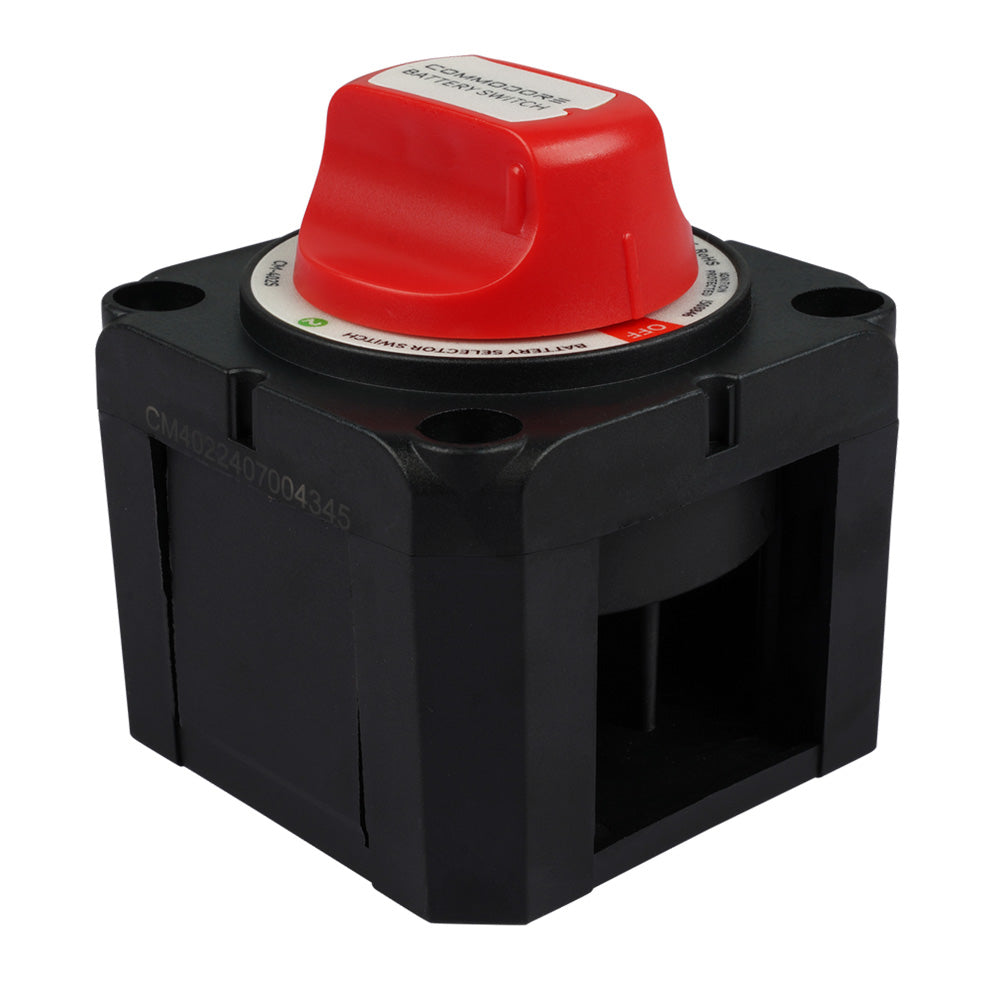

Commodore 4 Position Compact Dual Battery Selector Switch

The Commodore 4 Position Compact Dual Battery Selector Switch is the ultimate solution for efficient battery management in marine and RV electrical systems. Designed to support 12V to 32V applications, this versatile switch empowers you to easily isolate battery banks, combine them, or direct power as needed, ensuring you have the flexibility required for your adventures.

Engineered for durability and reliability, this battery selector switch stands out in the market with its compact design, making it an ideal choice for limited spaces. Here are some key features:

• 4-Position Functionality: Effortlessly switch between Multiple battery configurations for enhanced control.
• Compact Size: Fits perfectly in tight spaces while maintaining high performance.
• Robust Construction: Built to withstand harsh marine environments, ensuring longevity and reliability.
• Easy Installation: Designed with simplicity in mind, making it accessible for all users.

The Commodore brand is synonymous with quality, and this 4 Position Battery Selector Switch is no exception. By choosing this product, you are investing in a reliable solution that enhances the efficiency of your electrical system while safeguarding your batteries.

Don't compromise on your power management needs—opt for the Commodore 4 Position Compact Dual Battery Selector Switch today and experience the convenience of superior battery management!

Order now to take control of your battery systems and ensure optimal performance on your next journey!

4-Position Compact Dual Battery Selector Switch

The 4-Position Battery Selector Switch is the ultimate solution for managing multiple battery banks in marine or RV electrical systems. Designed for 12V to 32V applications, this switch allows you to isolate battery banks, combine them, or direct power to all loads with a simple turn. Engineered with tin-plated copper studs, the switch ensures maximum conductivity and corrosion resistance for reliable long-term performance in harsh environments.

This heavy-duty switch is IP66-rated for water resistance and features an ignition-protected design, meeting ISO 8846 and ABYC safety standards. The isolating cover with three snap-off side pieces protects rear contacts while allowing versatile wire access in any direction. With its robust one-piece terminal stud design and user-friendly operation, this battery switch is ideal for boats, RVs, and other off-grid applications requiring efficient power management.

Features:

• Switches Between 4 Positions: Allows flexible power management by isolating battery banks, combining them, or directing power to all loads for maximum versatility.
• Tin-plated copper Studs: Provides exceptional conductivity and corrosion resistance, ensuring efficient operation in harsh marine or RV environments.
• Durable One-Piece Terminal Stud Design: Prevents loosening over time, ensuring a secure connection and stable performance for extended use.
• Isolating Cover with Snap-Off Sides: Protects rear contacts while allowing easy wire access from any direction, making installation quick and hassle-free.
• IP66 Water-Resistant Rating: Built to withstand powerful water jets, making it perfect for marine applications or environments exposed to moisture and dust.
• Meets Strict Safety Standards: Certified to ISO 8846 Marine Ignition Protection, ABYC, UL 1500, and SAE J1171, ensuring compliance with industry-leading safety requirements.
• Compact and Lightweight Design: Weighing just 0.83 lbs (0.38 kg), this switch is compact yet robust, saving space while delivering maximum performance.
• High Current Handling Capability: Rated for 300A continuous and 900A cranking, this switch is ideal for high-power applications like engine start and onboard systems.

Specifications:

• Maximum Voltage: 32 VDC
• Switch Type: Selector 4-Position
• Battery Inputs: 1
• Color: Red
• Cable Clearance for 4/0 AWG Cables: 1.12 in (28.45 mm)
• Cable Size to Meet Ratings: 4/0 AWG (120mm2)
• Switch Positions: 4
• Battery Combine: Yes
• Alternator Field Disconnect: No
• Cranking Rating 30 seconds: 900A
• Continuous Rating: 300A
• Intermittent Rating: 500A (5 min)
• Mounting Holes: Accept #10 Screw
• Stud Material: Tinned Copper
• Stud Torque: 120 in-lb (13.56 Nm)
• Terminal Stud Size: 3/8" - 16 (M10)
• Weight: 0.77 lbs (0.35 kg)
