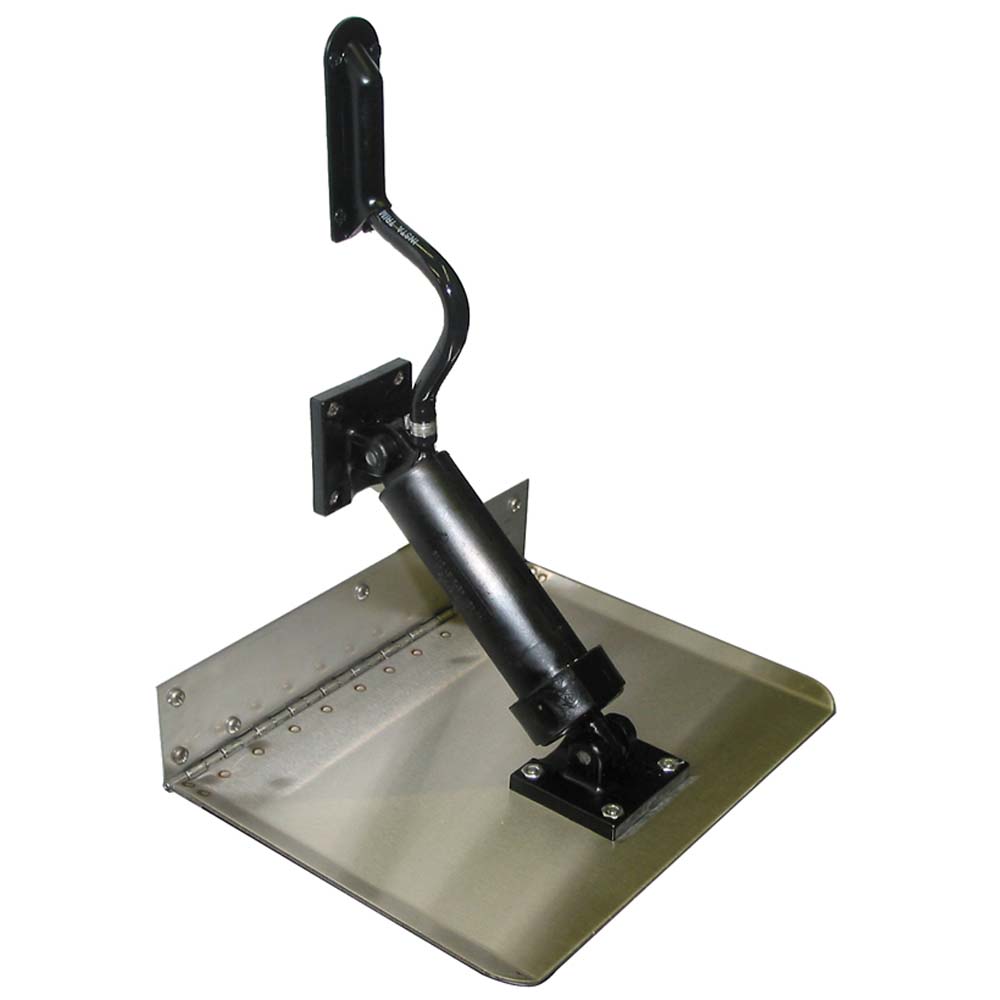

Boat Leveler 18 Inch x 8 Inch Trim Tab Set with Color Coded Wiring and Custom Solenoids

Enhance your boating experience with the Boat Leveler 18 Inch x 8 Inch Trim Tab Set. Perfectly crafted for efficiency, these trim tabs are designed to optimize your boat's performance and stability on the water. With features like color-coded wiring and custom solenoids, this set stands out as a premier choice for boating enthusiasts.

Key Features

• Color-Coded Wiring: Comes with wiring lengths ranging from 25' to 40', ensuring a hassle-free installation process. The clear color coding meets federal standards for heat, pull, and insulation, providing safety and reliability.
• Custom Solenoids: Engineered specifically for the Insta-Trim Boat Leveler Co., these solenoids are epoxy sealed and humidity resistant, effectively preventing short circuits and enhancing longevity.
• Perfect Dimensions: Measuring at 18 inches by 8 inches, these trim tabs are designed to deliver optimal lift and stability, helping you navigate through any water conditions with ease.

Why Choose Boat Leveler Co.?

Boat Leveler Co. is renowned for its commitment to quality and innovation in the marine industry. With their advanced design and attention to detail, you can trust that this trim tab set will perform reliably, ensuring that you have a smooth and enjoyable boating experience.

Benefits of Using Trim Tabs

Utilizing trim tabs not only stabilizes your boat but also enhances overall fuel efficiency and improves handling. Say goodbye to bow rise issues and hello to a more controlled and enjoyable ride.

Ready to elevate your boating experience? Upgrade to the Boat Leveler 18 Inch x 8 Inch Trim Tab Set today and experience the difference in performance and stability.

Features:

Wiring

• Color-coded wiring in 25' to 40' lengths with quick connects fittings, meets federal standards for heat, pull and insulation, making installation easy.

Solenoids

• They are custom designed for Insta-Trim Boat Leveler Co., epoxy sealed and humidity resistant, thereby preventing shorting out. The solenoids lock the tabs in any position, eliminating driftback. Barb type hose fittings provide tight, secure connections.

Motor

• A powerhouse with coated wirings and a thermal overload that resists temperature and amperage build-up. 1 3/4" stack windings and top mounting eliminated oil leakage. The motor is mounted with stainless steel nuts and bolts, and is easily disassembled.

Brackets

• Swivel type brackets allow cylinders to be mounted an adjusted to any angle. Knockout pins act as shear pins it tab strikes an object.

Pump

• Designed and engineered exclusively by Instatrim. The built-in bypass is factory set at 400 P.S.I. tolerance held to .00025. Amperage doesn't exceed 16 because the unit circulates oil, rather than stalling out or trying to pump additional pressure.

Motor Cover

• 4 1/2" D x 6" W x 11"H, high impact ABS plastic cover with a built-in oil reservoir mounts easily with two screws. The filler is located in front. Our cover protects the motor from occasional wash down.

Cylinders

• Impact resistant, fiberglass reinforced nylon cylinders eliminates expansion and resists ultra-violet rays. Two expanding type seals, plus O-ring, eliminates high and low pressure leaks. Barbed cylinder fitting and an inserted tubular rod prevents hose blow-off and breakage.
  A stainless steel spring retracts the cylinder when the boat is not in motion.

Trim Tabs

• 12 gauge 304 stainless steel trim tabs are available in standard and custom lengths. They are guaranteed against electrolysis, remaining strong and secure. Insta-Trim's hinges prevent most spray and can be used for transom or bottom mounting.

Hose

• Designed and manufactured exclusively for Insta-Trim with nylon-reinforced webbing and protective PVC coating. Rated at 2000 lb. burst pressure, 15' of hose is supplied for your system. Entering the transom 6" above the water line, the hoses are held securely with hose trim.
  Stainless steel clamps hold the hose to barb fitting at the solenoid.

Rocker Type Controls

• Mounted on the dash they are easy to operate.

One pint of Insta-Trim biodegradable transmission oil, funnel and mounting hardware is supplied.
