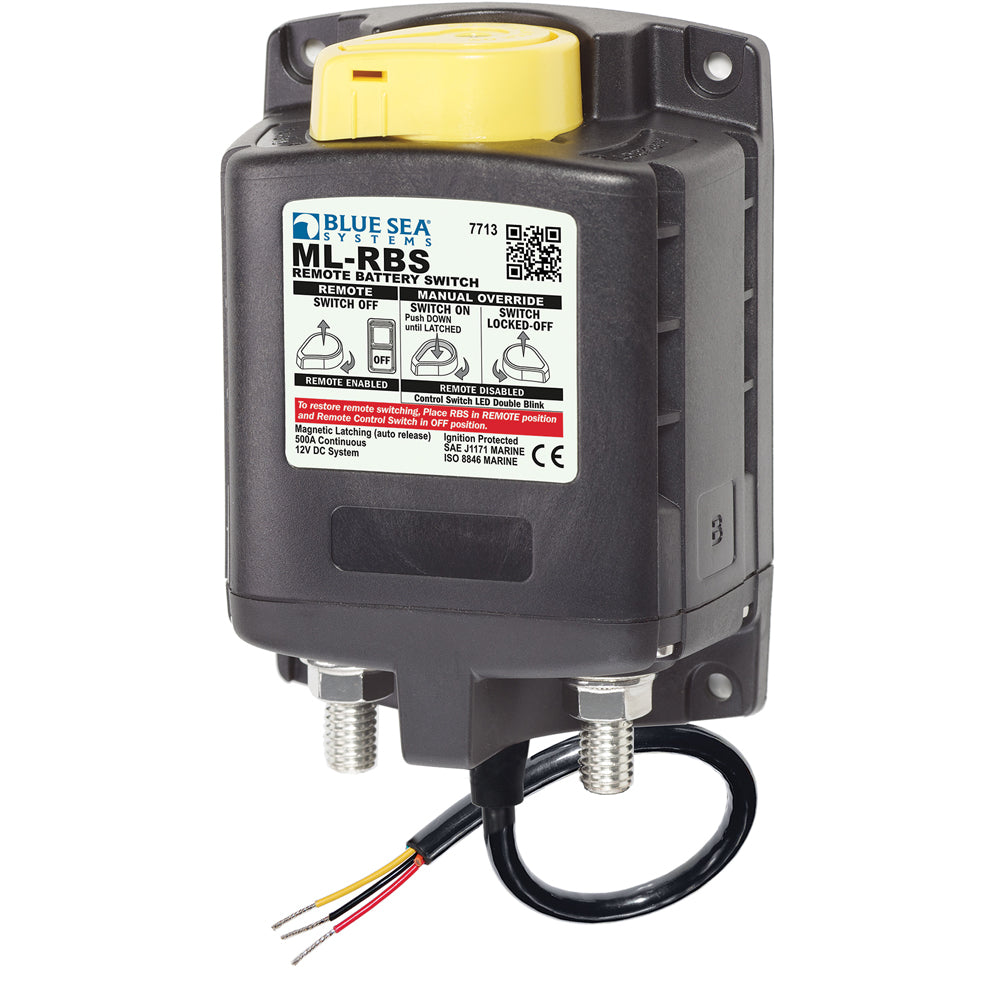

Blue Sea 7713 ML-RBS Remote Battery Switch w/Manual Control Release - 12V

Blue Sea 7713 ML-RBS Remote Battery Switch by Blue Sea Systems offers unparalleled safety and control tailored for marine and automotive applications. This advanced remote battery switch features manual control release for ease of use, ensuring reliable performance even during power outages.

Key Features:

• Manual Override Knob: Provides an added layer of safety, allowing operation with or without power.
• LED Indicator Output: Remotely indicates the switch state for quick accessibility and monitoring.
• High Reliability Contacts: Silver alloy contacts ensure dependable switching of live loads with minimal resistance.

Ideal for marine enthusiasts and automotive professionals, this product is supported by a mechanical endurance of 100,000 cycles, ensuring quality and satisfaction for all your electrical needs.

ML-RBS Remote Battery Switch with Manual Control Auto-Release - 12V

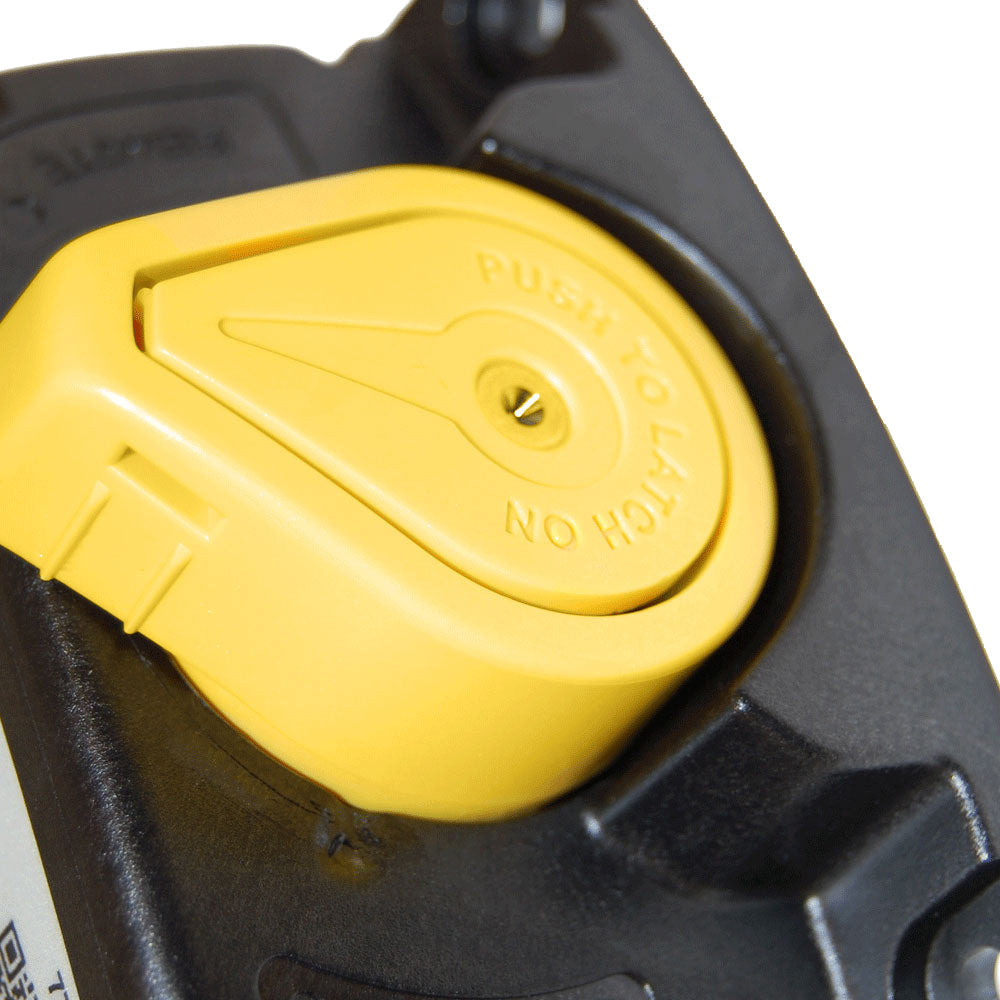

• Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing

• LED output to remotely indicate switch state - requires optional LED

• 3/ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance

• 7/ 8" (22mm) stud length accepts multiple cable terminals

• Label recesses for circuit identification

• Silver alloy contacts provide high reliability for switching live loads

Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired

Specifications
Control Circuit Connection:Tinned Wire
Nominal Voltage:12V DC
Coil Function: Auto releasing
Mounting: #10
Amperage Operating Current:8mA when OFF/13mA when ON
Amperage Operating Current when changing state: <7A (40 ms)
Control Circuit Voltage: 10.1 to 16.5V DC
Continuous Rating: 500A
Intermittent Rating: 700A (5 min)
Cranking Rating: 10 sec 2500A
Cranking Rating: 1 min 1100A
Minimum Operating Temperature: -10° C
Maximum Operating Temperature: 50° C
Cable Size to Meet Ratings: 2x (4/0)
Live Current Switching: 300A @ 12V DC 10,000 Cycles
Master Control Switch Capability: Yes
Mechanical Endurance: 100,000 Cycles
Switching Cycles: 100,000
Terminal Ring Diameter Clearance: 1.18" (29.97mm)
Terminal Stud Length: 0.875" (22.23mm)
Terminal Stud Size: 3/8-16 (M10)
Terminal Stud Torque: 140 in-lb (15.82 Nm)
Weight: 1.75lb (0.79 kg)
