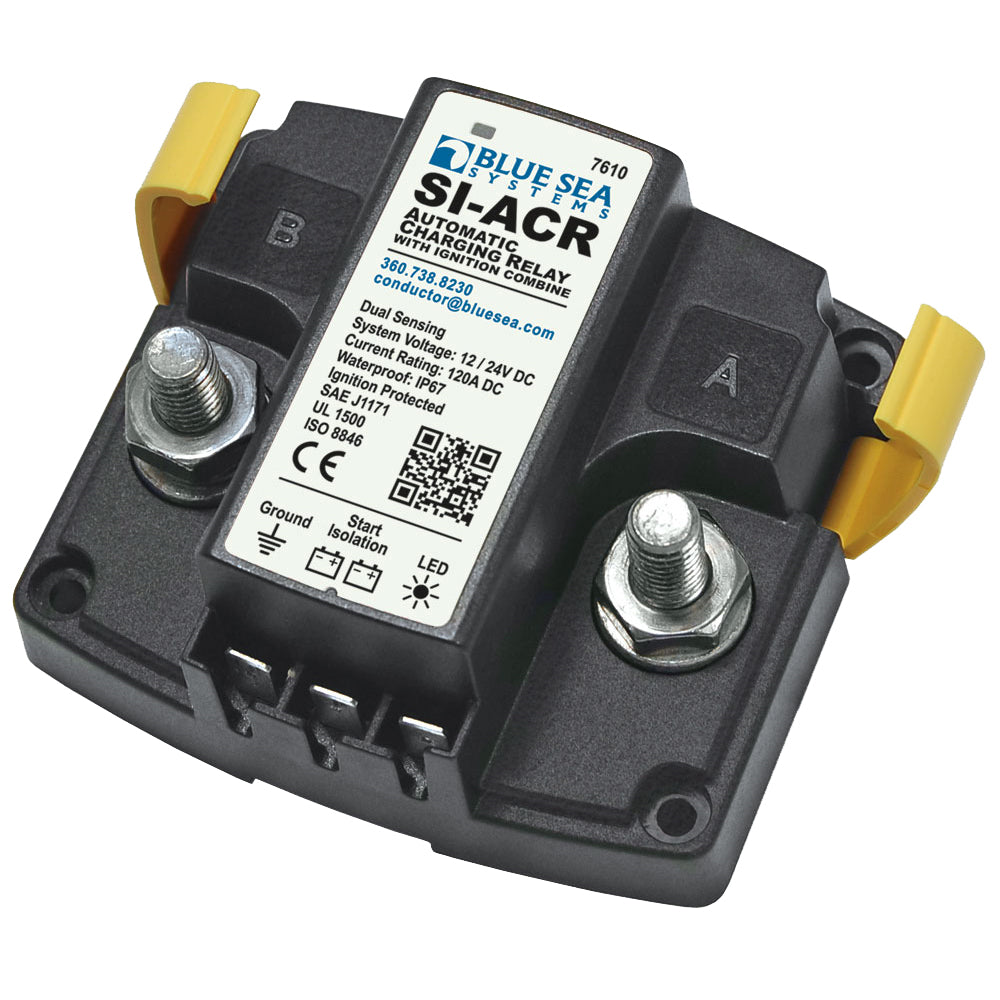

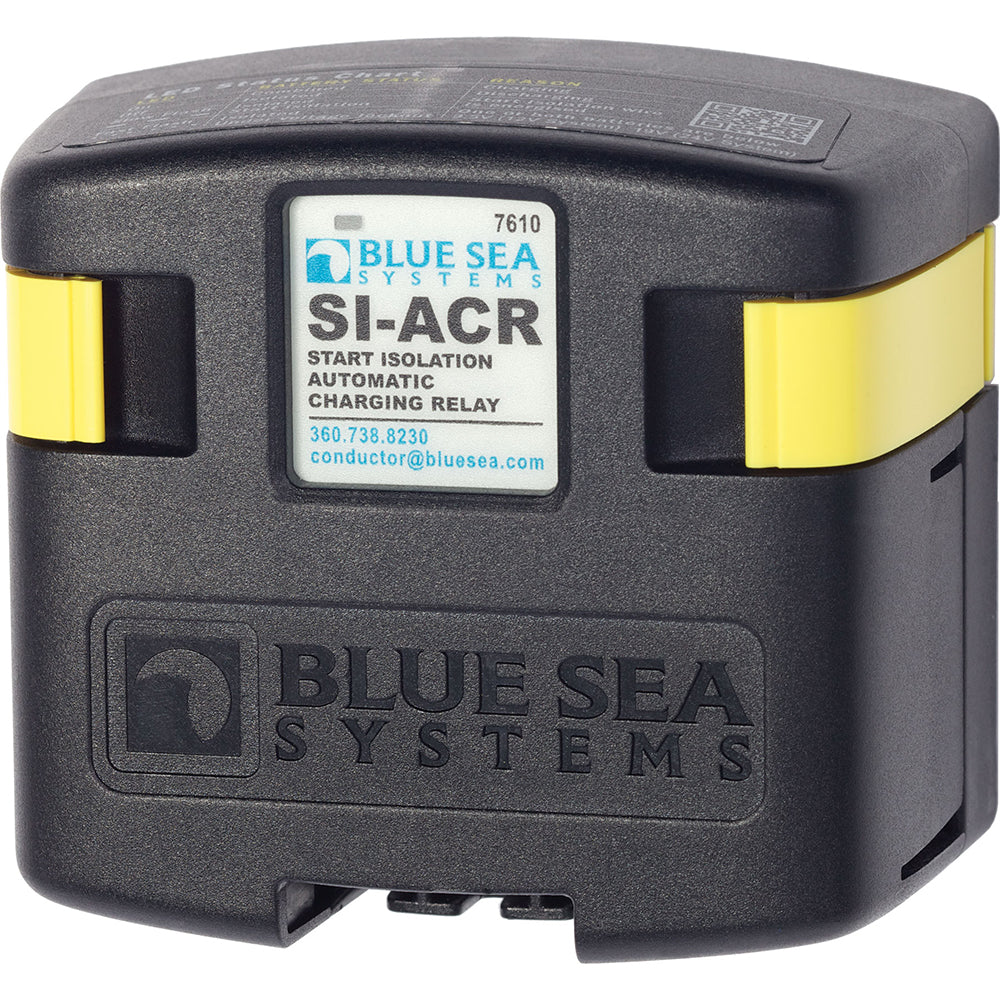

Blue Sea 7610 120 Amp SI-Series Automatic Charging Relay
Blue Sea 7610 120 Amp SI-Series Automatic Charging Relay offers reliable battery management tailored for gasoline-powered boats. This premium product ensures your sensitive electronics are protected during engine cranking while effortlessly managing dual battery banks.
Key Features:
- Automatic Battery Management: Combines battery banks during charging and isolates under discharge for optimal performance.
- Waterproof Design: Rated IP67 for temporary immersion, ensuring durability in marine environments.
- Ignition Protected: Safe installation for gasoline-powered boats; activates from any charging source, including alternators and solar panels.
Ideal for marine enthusiasts and boat owners, this product is supported by Blue Sea's commitment to quality, ensuring safety and reliability on every voyage.
120 Amp SI-Series Automatic Charging Relay
- Allows temporary isolation of house loads from engine circuit during engine cranking to protect sensitive electronics
- Automatically combines battery banks during the charging cycle and isolates under discharge
- 12/24 Volt auto ranging voltage input
- Waterproof rated IP67 - temporary immersion for 30 minutes
- Ignition protected - safe for installation aboard gasoline powered boats
- Remote LED output indicates relay state away from ACR
- LED light indicates when batteries are combined
- LED blinks in undervoltage lockout and starting lockout
- Supports high-output alternators up to 120 Amperes
- Included with the ADD A BATTERY Dual Circuit System
- Automatically combines battery banks during the charging cycle and isolates under discharge
- Ignition protected - safe for installation aboard gasoline-powered boats
- Activates from any charging source - alternators, battery chargers, or solar panels
- Hermetically sealed contacts / vaporproof
- Side and bottom knockouts for power cable connections

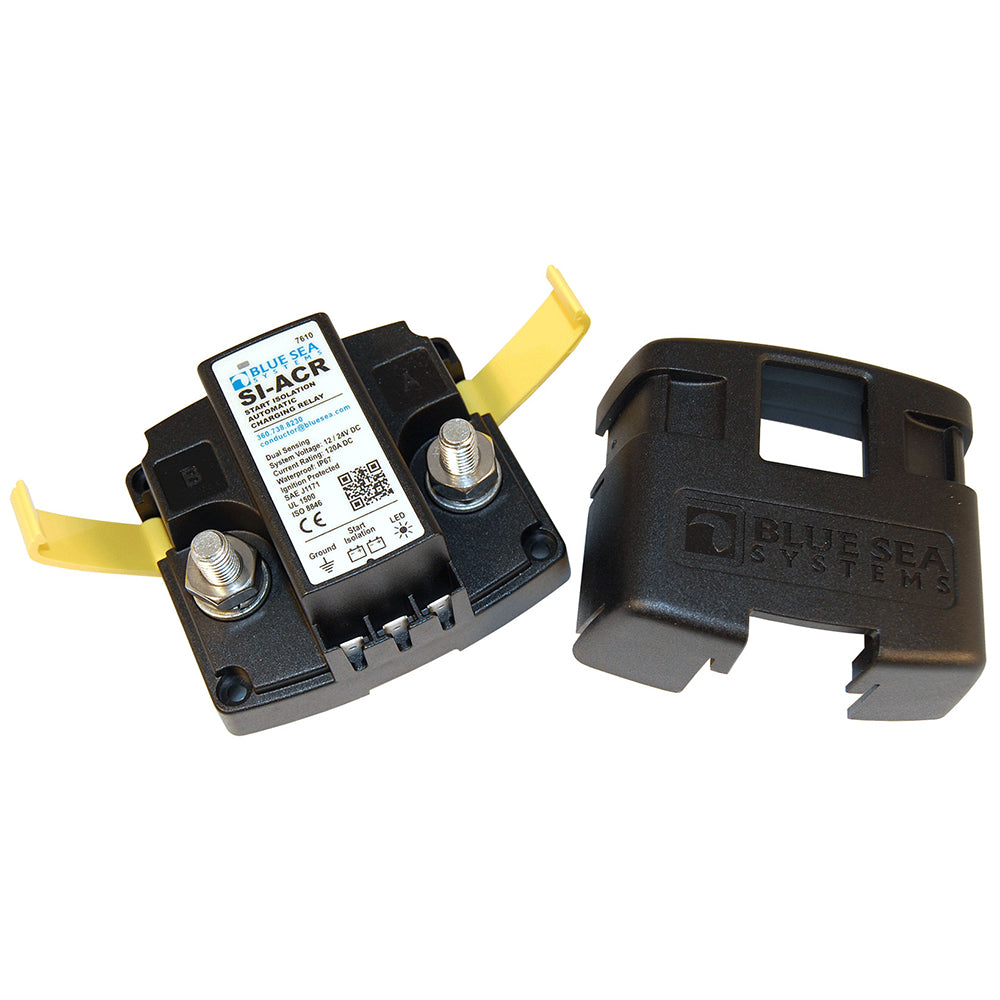

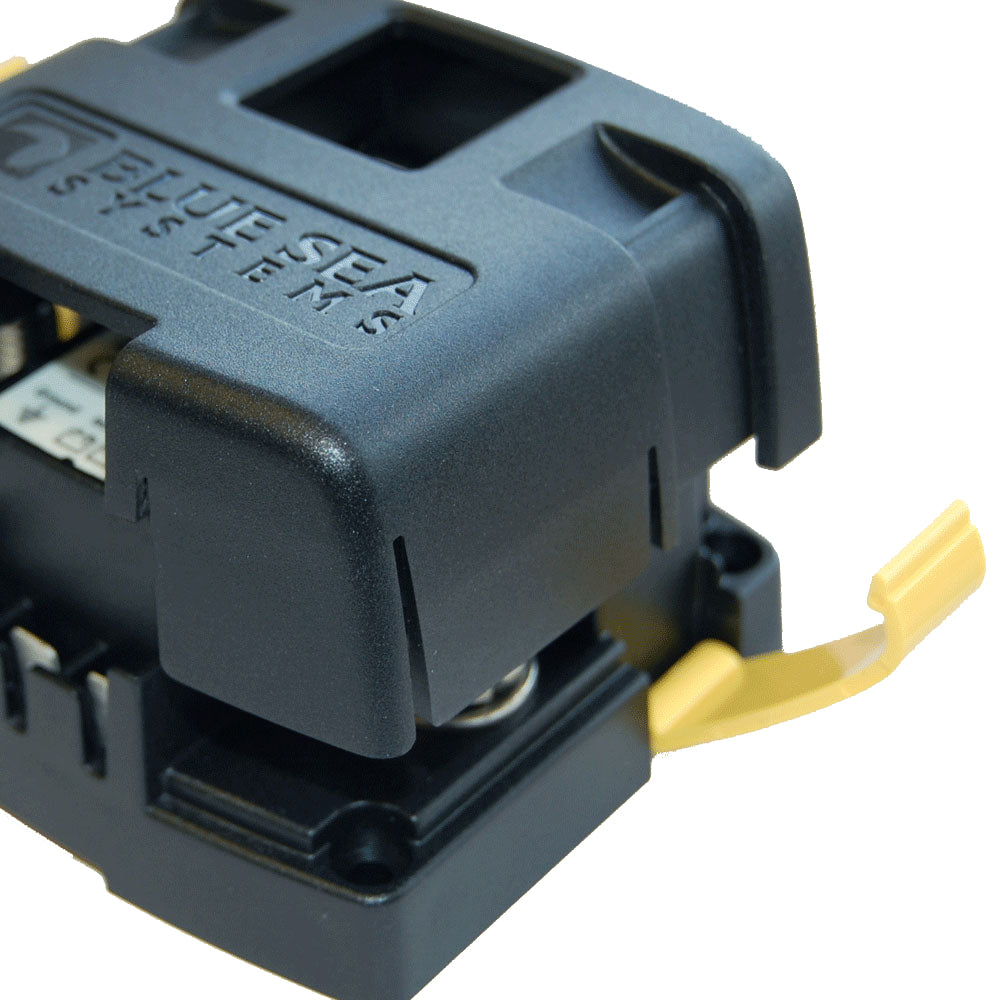

- Clip-on cover protects and insulates terminal connections
- Tin-plated copper studs for maximum corrosion resistance
- 7/8" (22.22mm) stud length to accept multiple cable terminals
- 1/4" x 0.031" male quick connect terminals for ground and remote LED and starting interrupt
