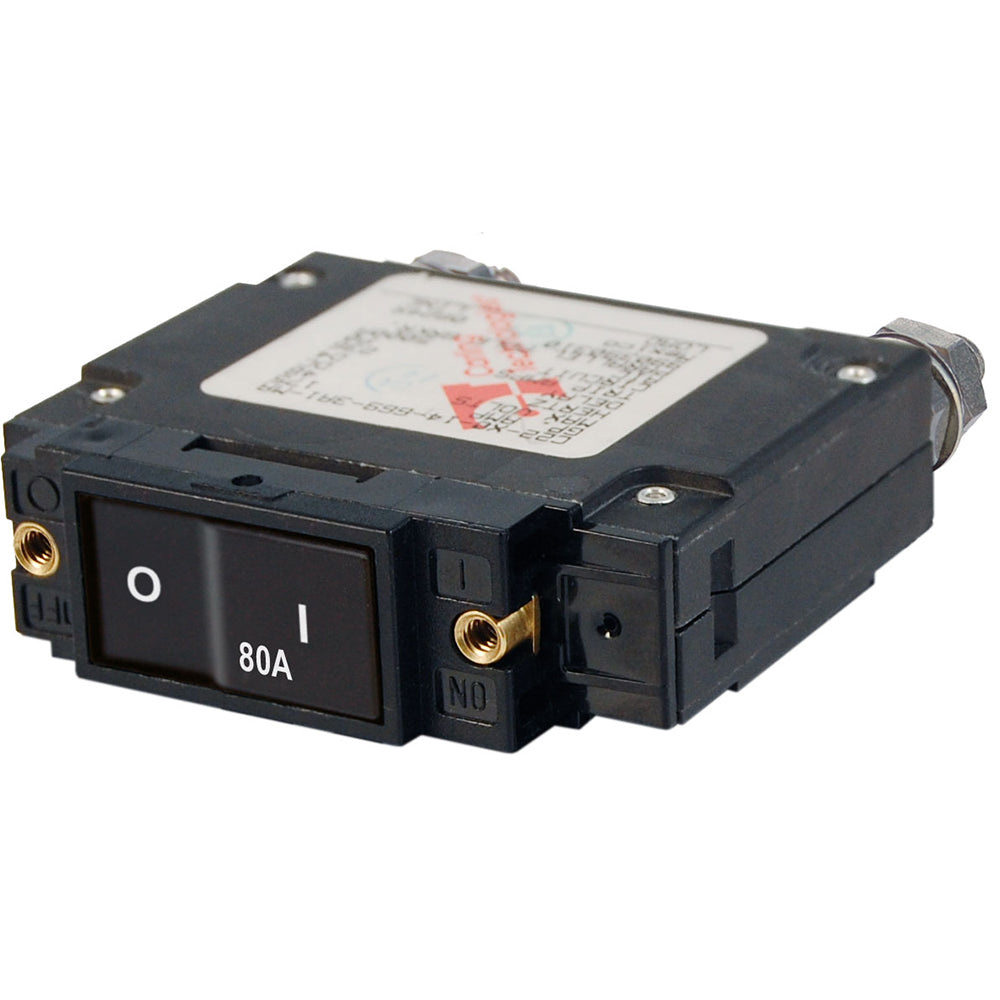

Blue Sea 7548 C-Series Flat Rocker Circuit Breaker - Single Pole - 80A

Blue Sea 7548 C-Series Flat Rocker Circuit Breaker offers superior overcurrent protection tailored for marine applications, such as inverters, bow thrusters, and windlasses. With its innovative design, this circuit breaker ensures safety and efficiency in your boating experience.

Key Features:

• Flush Rocker Actuator: Eliminates accidental switching by being flush in the "ON" position.
• Color Indicator: The actuator color clearly indicates when the device is "OFF", enhancing user awareness.
• Trip Free Design: Once tripped, it cannot be held closed, ensuring immediate disconnection for safety.

Ideal for gasoline powered boats, this product is ignition protected, ensuring quality and reliability in marine environments. With a maximum voltage of 240V AC and the ability to handle high interrupt capacity, the Blue Sea 7548 provides unmatched performance. Rest assured with its 10,000 switching cycles and strong 1/4-20 tin-plated brass terminal stud, making it a durable choice for your marine electrical needs.

Make the smart choice for safety and performance on the water—choose the Blue Sea 7548 C-Series Flat Rocker Circuit Breaker today!

• Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching

• Color actuator indicates "OFF" position

• Provides overcurrent protection for inverters, bow thrusters, and windlasses

• Combines switching and circuit protection into a single device

• "Trip Free" - cannot be held closed after trip

• Ignition protectedsafe for installation aboard gasoline powered boats

• Amperage: 80A AC / 80A DC

• Actuator Style: Flat Rocker

• Poles: 1

• Maximum Voltage: 240V AC / 48V DC

• Circuit Breaker Type: Magnetic Hydraulic - trip free

• Terminal Stud Torque: 35 in-lb (3.95 Nm)
• Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC

• Minimum Operating Temperature: -40° C

• Maximum Operating Temperature: 85° C

• Mounting Screw: #6-32 Stainless Steel

• Mounting Screw Torque: 6 in-lb (0.68 Nm)

• Switching Cycles: 10000

• Terminal Stud: 1/4-20 Tin-Plated Brass

• Weight: 0.38lb (0.17 kg)
