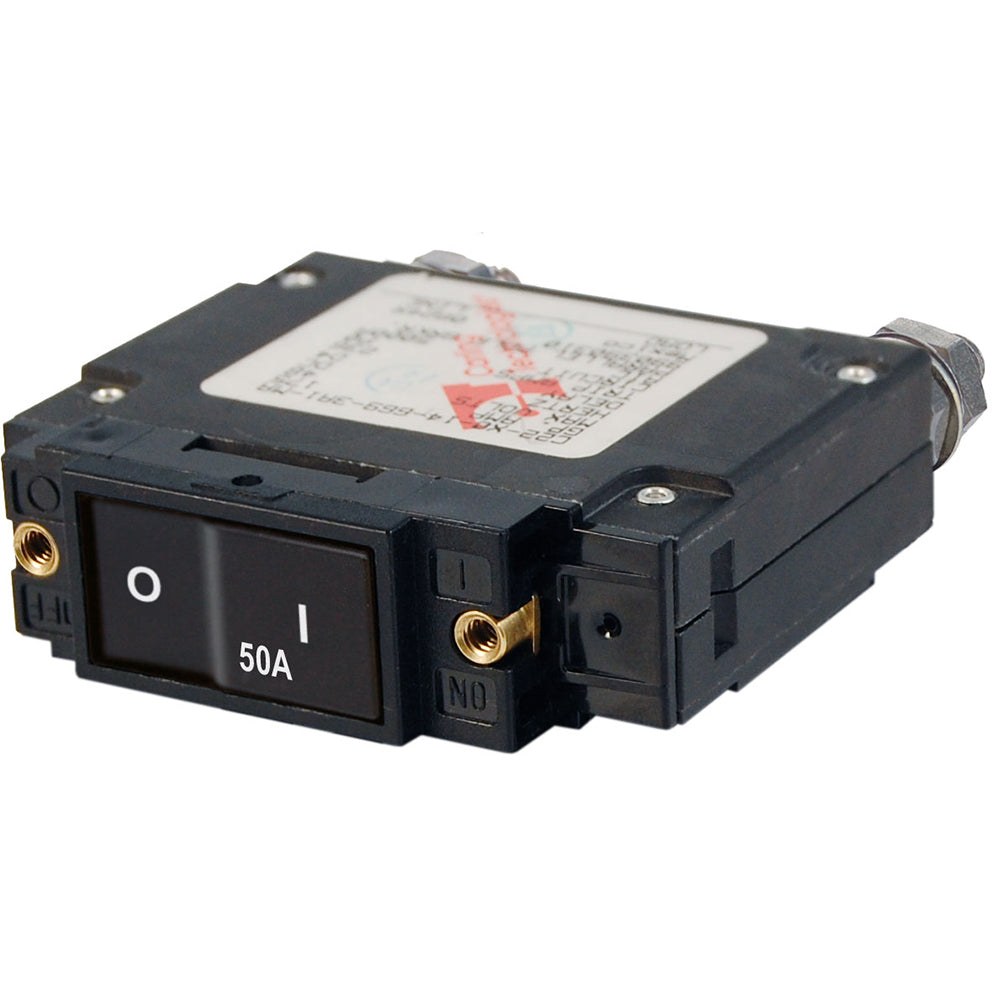

Blue Sea 7546 C-Series Flat Rocker Circuit Breaker - Single Pole - 50A

Blue Sea 7546 C-Series Flat Rocker Circuit Breaker offers superior overcurrent protection tailored for marine applications. This reliable circuit breaker is perfect for inverters, bow thrusters, and windlasses, providing peace of mind while you’re out on the water.

Key Features:

• Flush Rocker Actuator: Eliminates accidental switching by keeping the actuator flush in the "ON" position.
• Color Indicator: The color actuator clearly shows the "OFF" position for easy visibility.
• Trip Free Design: Ensures the breaker cannot be held closed after a trip, enhancing safety and reliability.

Ideal for gasoline-powered boats and marine enthusiasts, this product is supported by ignition protection, ensuring it’s safe for installation in fuel-sensitive environments. With an impressive interrupt capacity of 3000A @ 120V AC, this circuit breaker stands out in its category, combining efficiency and safety.

Choose the Blue Sea 7546 C-Series Circuit Breaker for your marine needs and experience unmatched quality and performance!

• Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching

• Color actuator indicates "OFF" position

• Provides overcurrent protection for inverters, bow thrusters, and windlasses

• Combines switching and circuit protection into a single device

• "Trip Free" - cannot be held closed after trip

• Ignition protectedsafe for installation aboard gasoline powered boats

• Amperage: 50A AC / 50A DC

• Actuator Style: Flat Rocker

• Poles: 1

• Maximum Voltage: 240V AC / 48V DC

• Circuit Breaker Type: Magnetic Hydraulic - trip free

• Terminal Stud Torque: 35 in-lb (3.95 Nm)
• Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC

• Minimum Operating Temperature: -40° C

• Maximum Operating Temperature: 85° C

• Mounting Screw: #6-32 Stainless Steel

• Mounting Screw Torque: 6 in-lb (0.68 Nm)

• Switching Cycles: 10000

• Terminal Stud: 1/4-20 Tin-Plated Brass

• Weight: 0.38lb (0.17 kg)
