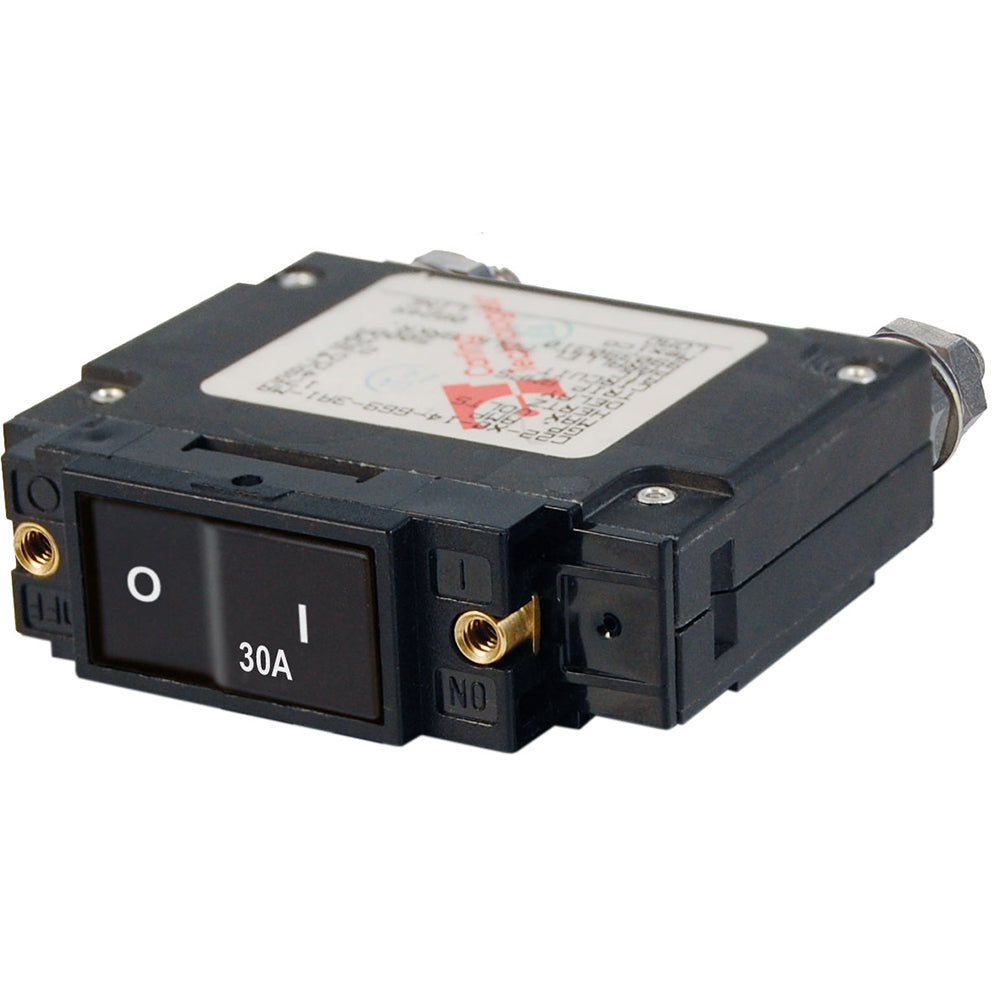

Blue Sea 7545 C-Series Flat Rocker Circuit Breaker - Single Pole - 30A

Blue Sea 7545 C-Series Flat Rocker Circuit Breaker offers reliable overcurrent protection tailored for marine applications. Whether you are powering inverters, bow thrusters, or windlasses, this circuit breaker ensures safety and efficiency on your boat.

Key Features:

• Sleek Rocker Actuator: The flush design in the "ON" position eliminates accidental switching, providing peace of mind.
• Visual Indicator: A color actuator clearly indicates the "OFF" position, enhancing operational safety.
• Trip Free Technology: This breaker cannot be held closed after a trip, ensuring immediate safety from overloads.

Ideal for gasoline-powered boats and demanding conditions, this product is backed by ignition protection, ensuring safe installation. With a robust construct supporting up to 30A AC/DC and a remarkable interrupt capacity of 3000A at 120V AC, you can trust in its performance.

Experience the reliability and safety of the Blue Sea 7545 C-Series Flat Rocker Circuit Breaker, your ultimate solution for circuit protection on the water!

• Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching

• Color actuator indicates "OFF" position

• Provides overcurrent protection for inverters, bow thrusters, and windlasses

• Combines switching and circuit protection into a single device

• "Trip Free" - cannot be held closed after trip

• Ignition protectedsafe for installation aboard gasoline powered boats

• Amperage: 30A AC / 30A DC

• Actuator Style: Flat Rocker

• Poles: 1

• Maximum Voltage: 240V AC / 48V DC

• Circuit Breaker Type: Magnetic Hydraulic - trip free

• Terminal Stud Torque: 35 in-lb (3.95 Nm)
• Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC

• Minimum Operating Temperature: -40° C

• Maximum Operating Temperature: 85° C

• Mounting Screw: #6-32 Stainless Steel

• Mounting Screw Torque: 6 in-lb (0.68 Nm)

• Switching Cycles: 10000

• Terminal Stud: 1/4-20 Tin-Plated Brass

• Weight: 0.38lb (0.17 kg)
