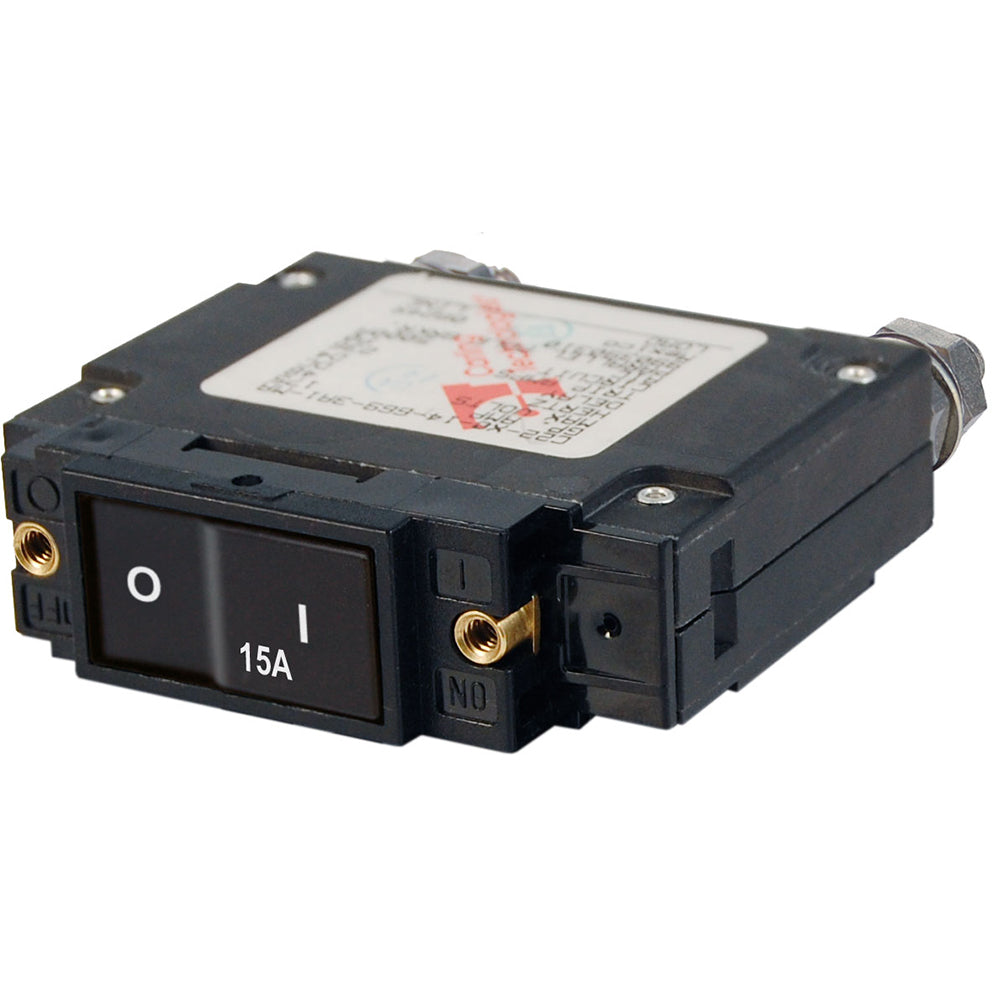

Blue Sea 7542 C-Series Flat Rocker Circuit Breaker - Single Pole - 15A

Blue Sea 7542 C-Series Flat Rocker Circuit Breaker offers reliable overcurrent protection tailored for marine applications, ensuring safety for inverters, bow thrusters, and windlasses.

Key Features:

• Flush Rocker Actuator: The actuator is flush in the "ON" position, eliminating the risk of accidental switching.
• Color Indicator: Color-coded actuator clearly indicates the "OFF" position, enhancing visibility and user safety.
• Magnetic Hydraulic Type: Combines switching and circuit protection into a single device with a "Trip Free" mechanism, ensuring reliability even after a trip.

Ideal for boating enthusiasts seeking durable solutions for electrical protection, this product is ignition protected and safe for installation aboard gasoline-powered boats. With a maximum operating temperature of 85°C and interrupt capacity of up to 5000A, you can trust in its performance.

Experience peace of mind with the Blue Sea C-Series Circuit Breaker, ensuring quality and satisfaction for all your electrical needs on the water.

• Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching

• Color actuator indicates "OFF" position

• Provides overcurrent protection for inverters, bow thrusters, and windlasses

• Combines switching and circuit protection into a single device

• "Trip Free" - cannot be held closed after trip

• Ignition protectedsafe for installation aboard gasoline powered boats

• Amperage: 15A AC / 15A DC

• Actuator Style: Flat Rocker

• Poles: 1

• Maximum Voltage: 240V AC / 48V DC

• Circuit Breaker Type: Magnetic Hydraulic - trip free

• Terminal Stud Torque: 35 in-lb (3.95 Nm)
• Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC

• Minimum Operating Temperature: -40° C

• Maximum Operating Temperature: 85° C

• Mounting Screw: #6-32 Stainless Steel

• Mounting Screw Torque: 6 in-lb (0.68 Nm)

• Switching Cycles: 10000

• Terminal Stud: 1/4-20 Tin-Plated Brass

• Weight: 0.38lb (0.17 kg)
