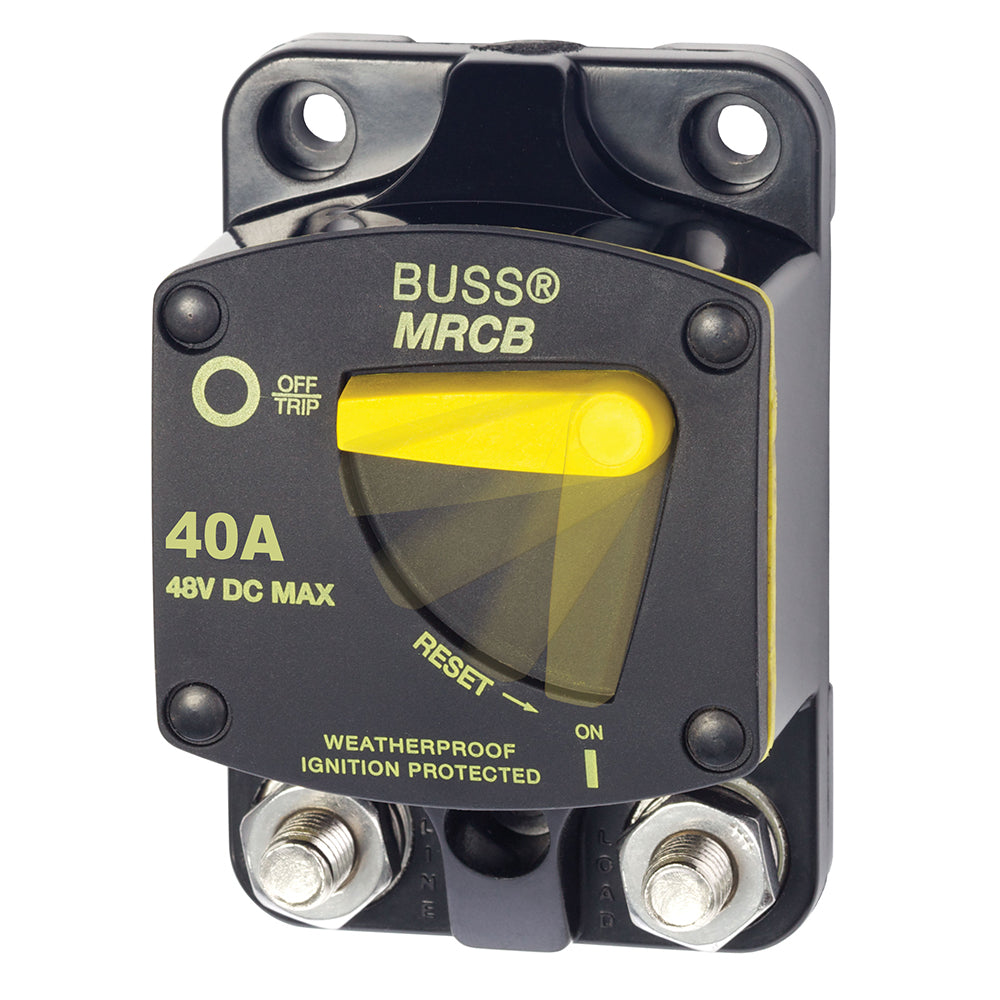

Blue Sea 7138 187 - Series Thermal Circuit Breaker - 40 Amp
Blue Sea 7138 187 - Series Thermal Circuit Breaker offers reliable circuit protection tailored for marine and automotive applications. This 40 Amp circuit breaker combines switching and safety into one robust device, ensuring your electrical systems remain safe and operational under all conditions.
Key Features:
- Combines Switching and Circuit Protection: This thermal circuit breaker integrates essential functions for optimal performance.
- Trip Free Design: The breaker cannot be held "ON" during fault conditions, providing enhanced safety.
- Waterproof and Secure Mounting: Designed with recessed mounting holes, it offers a clean appearance while providing heavy-duty connections.
Ideal for gasoline-powered boats, automotive configurations, and other marine environments, this product is supported by ignition protection and high torque terminal connections, ensuring quality and satisfaction. With its thermally responsive bi-metal blade and a durable thermoset polyester case, the Blue Sea circuit breaker is engineered to withstand operating temperatures from -25C° to +82C°.
Ensure the safety and reliability of your electrical systems with the Blue Sea 7138 187 - Series Thermal Circuit Breaker. Order yours today!
187 - Series Thermal Circuit Breakers - Surface Mount40 Amp Circuit Breaker
PN: 7138
Features:
- Combines switching and circuit protection into a single device
- All components meet SAE J1171 external ignition protection requirements
- Clear, single lever operation
- "Trip Free" design cannot be held "ON" during fault current condition
- Waterproof
- Recessed mounting holes for clean appearance
- Large clearance around terminal studs accept heavy gauge wire lugs
- Robust 5/16 terminals provide high torque connections
- Large lever with vertical/horizontal orientation provides indication of trip status
- Ignition protected - safe for installation aboard gasoline powered boats
| Specifications | |
| Circuit Breaker Class: | Type III - Switchable / Manual Reset - Trip Free |
| Type: | Thermally Responsive Bi-Metal Blade |
| Case Material: | Thermoset Polyester |
| Voltage Rating: | 48 Volts DC Maximum |
| Interrupt Rating: | 5,000 Amperes @12 Volts DC |
| 3,000 Amperes @24 Volts DC | |
| 1,500 Amperes @42 Volts DC | |
| Operating Temperature Range: | -25C° to +82C° |
