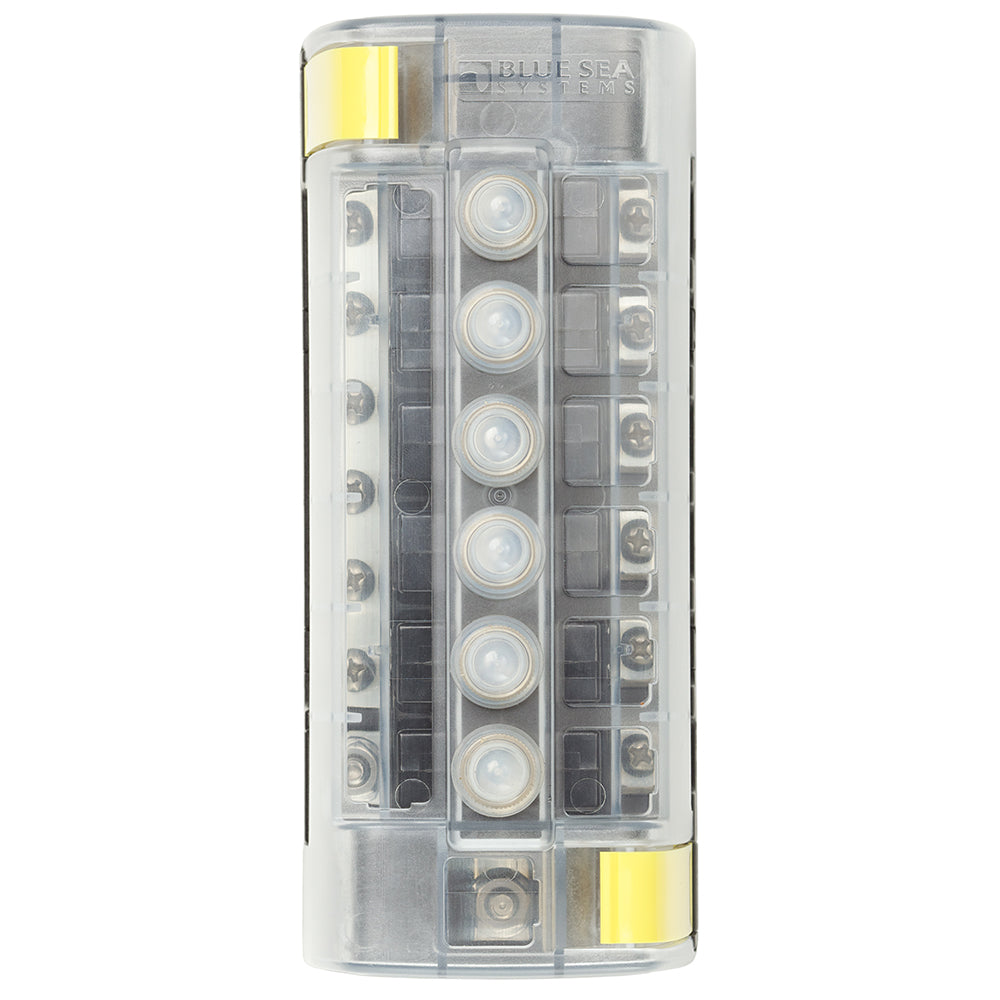

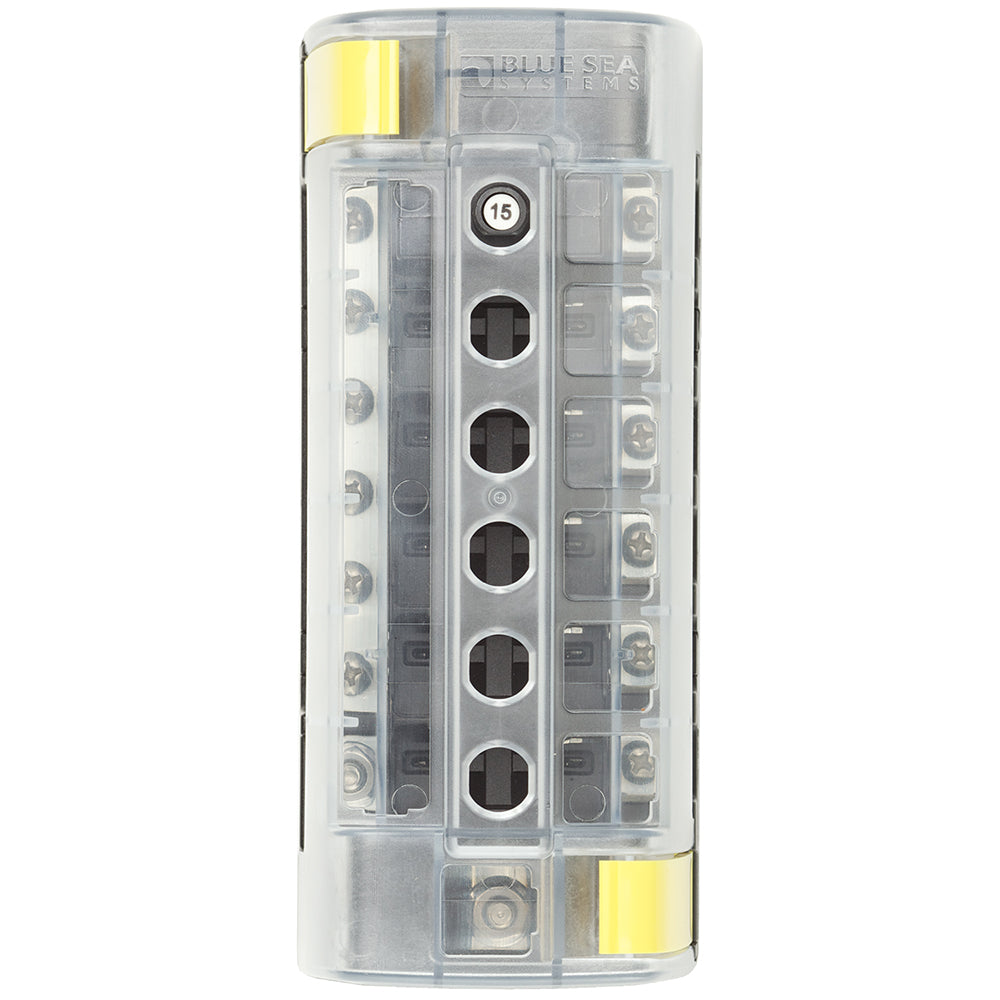

Blue Sea 5052 ST CLB Circuit Breaker Block - 6 Position w/Negative Bus
Blue Sea 5052 ST CLB Circuit Breaker Block offers reliable electrical protection tailored for marine applications and various DC circuits. This robust 6-position circuit breaker block with a negative bus is designed to simplify installation and enhance safety, making it an essential addition to your boat or RV.
Key Features:
- Quick Connect Clips: Easily snap circuit breakers into place for a hassle-free setup.
- Tin-Plated Copper Busses: Ensures efficient conductivity and durability, built to withstand harsh environments.
- Clear Insulating Cover: Comes with square format label recesses, satisfying ABYC/USCG insulation requirements.
Ideal for boaters, RV enthusiasts, and technicians, this product is supported by Blue Sea's commitment to quality and safety, ensuring satisfaction in performance. With specifications including a maximum amperage of 100A per block and a temperature range from -10° C to 60° C, the Blue Sea 5052 is designed for reliability in diverse conditions.
ST CLB Circuit Breaker Block - 6 Position w/Negative BusFeatures
- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals
- Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements

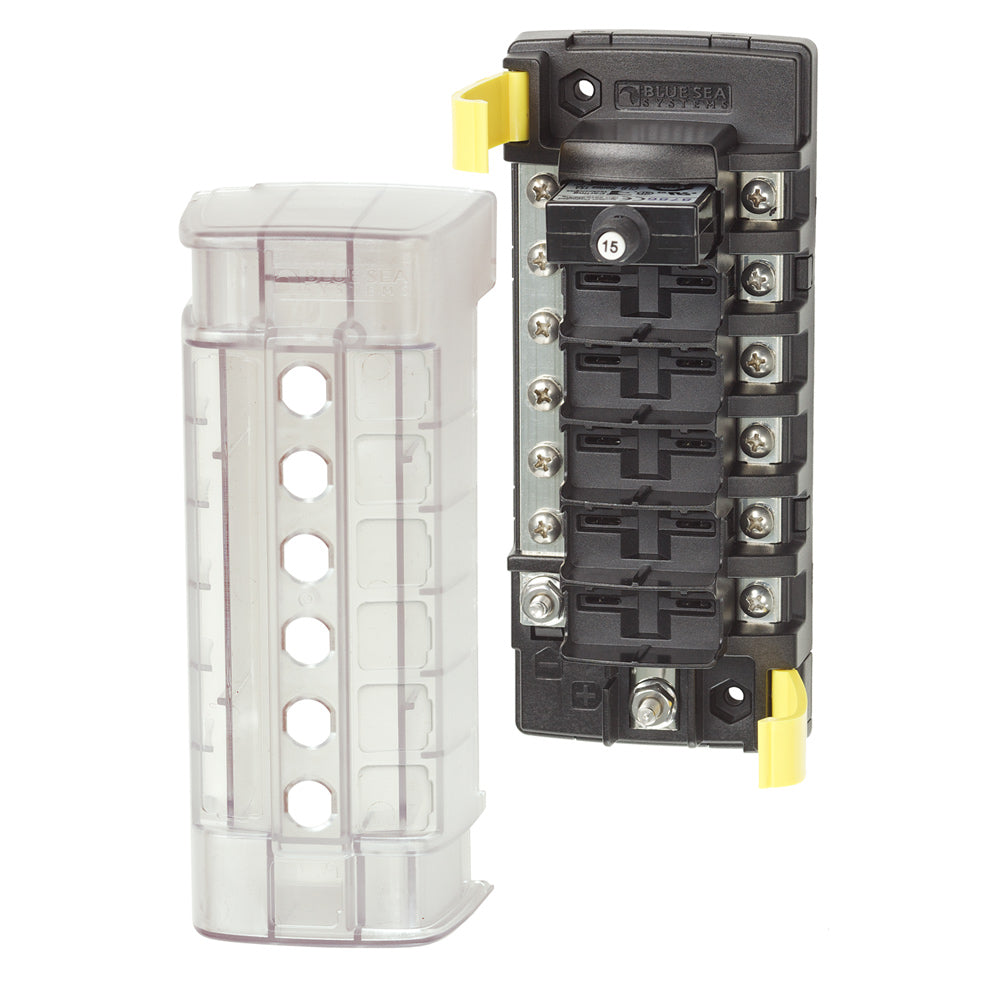

- Easy to open clip on cover
- Breakouts allow wire access in two directions
- Accepts ring terminals
- Optional push button waterproof boots or dress nuts can be installed over cover
Specifications:
Circuits: 6
Maximum Amperage: 100A (per block) 32A (per circuit)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Negative Bus: Yes
Source: Common SourceMinimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Mounting Centers: 5.63"(143 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 0.75lb (0.34 kg)
