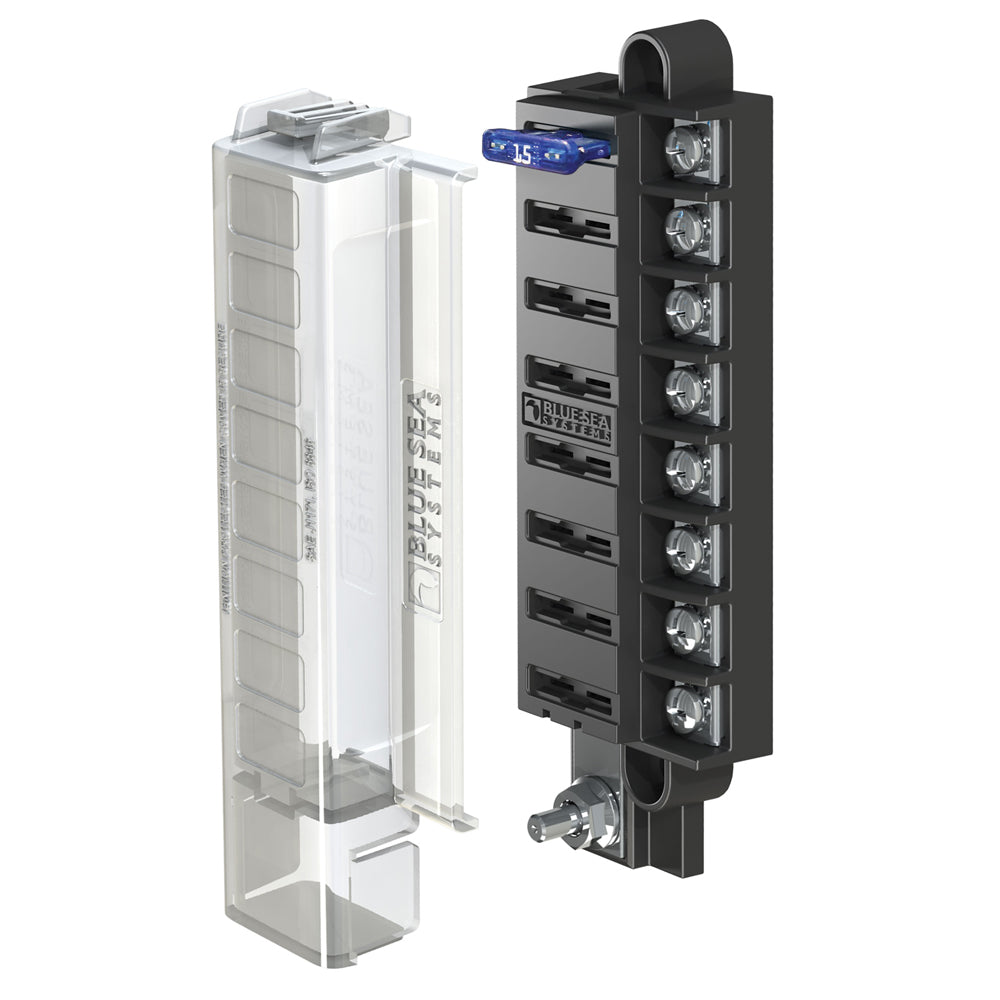

Blue Sea 5046 ST Blade Compact Fuse Blocks - 8 Circuits w/Cover
-
Estimated Delivery:Sep 01 - Sep 05
-
Free Shipping: On all orders over $150
Guarantee safe & secure checkout
Blue Sea 5046 ST Blade Compact Fuse Blocks - 8 Circuits w/Cover
Stories
Stories
Stories
Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.
- Compact common source fuse block
- Accepts ATO® and ATC® fast acting blade fuses
- Single side entry wiring
- Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
- Insulating cover meets ABYC/USCG insulation requirements
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Small format standard and custom labels available
Specifications
-
Circuits:8
-
Maximum Amperage: 100A per block / 30A per circuit
-
Maximum Voltage:32V DC
-
Mounting: #8 Screw (M4)
- Screw Terminal Torque:#8-32 Screws with captive star lock washer in-lb (0 Nm)
