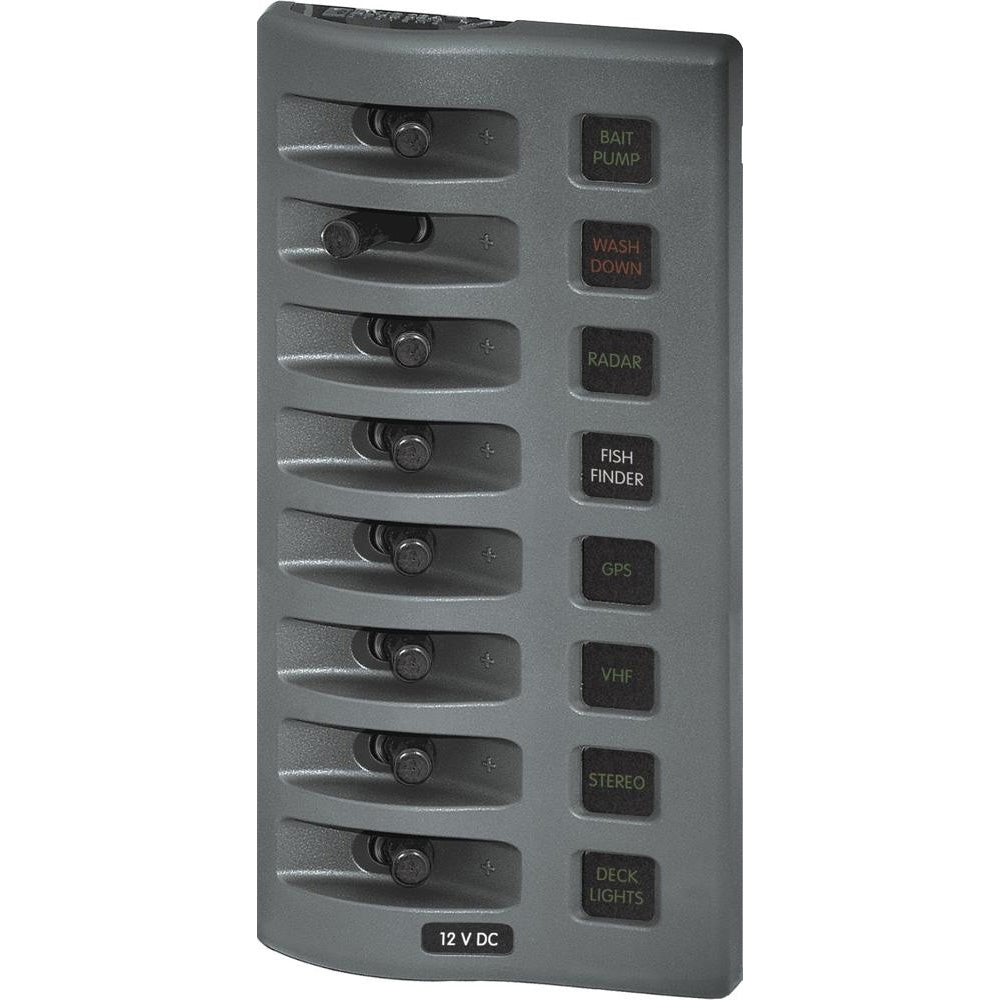

Blue Sea 4308 WeatherDeck Water Resistant Fuse Panel - 8 Position - Grey

Blue Sea 4308 WeatherDeck Water Resistant Fuse Panel offers exceptional circuit protection tailored for marine environments, ensuring reliable performance in flybridge and open cockpit applications.

Key Features:

• IP67 Rated Protection: Designed for water resistance, this panel is protected against immersion up to 1 meter for 30 minutes.
• Independent Label Backlighting: Easily identify circuit status with bicolored LEDs that illuminate labels, providing clear visibility for ON (Green), OFF (Red), and Blown (No Color) circuits.
• Versatile Orientation: Each panel can be mounted in four different orientations, catering to various installation needs.

Ideal for boating enthusiasts and marine technicians, this product is supported by a 100A panel cumulative rating, ensuring quality and satisfaction. With its waterproof design and integrated ATO/ATC fuse circuit protection, the Blue Sea 4308 is the perfect addition to enhance your vessel's electrical system.

WeatherDeck™ Water Resistant Fuse Panel

PN: 4308

Color: Gray

Features:

• Panel front rated IP67 when properly mounted with watertight mounting gasket
• IP67 – protected against immersion up to 1 meter for 30 minutes
• Designed for flybridge and open cockpit applications
• Independent label back lighting circuit for remote switching and dimming
• Each panel can be mounted in four different orientations
• Integrated ATO/ATC fuse based circuit protection
• Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.

Specifications:

• Weatherproof: Waterproof
• Positions: 8
• Nominal Voltage: 12v DC
• Circuit Protection: Fuse
• Maximum Amperage: 15A @ 12v DC (per circuit)
• Panel Cumulative Rating: 100A
• Backlit Label: Bicolored LED
• Backlighting Amperage: 10mA/illuminated Circuit
• Backlighting Voltage: 12v DC
• Height: 7.7"
• Width: 3.88"
• Depth: 2.5"

Included:

• (8) 4138 WeatherDeck® Toggle Switch Boot - Black
• (8) 4150 WeatherDeck® Toggle Switch SPST - ON-OFF
• (1) 4215 Waterproof DC Label Kit - 30 Black Square Labels V1
• (8) 5242 ATO/ATC Fuse - 15 Amp
