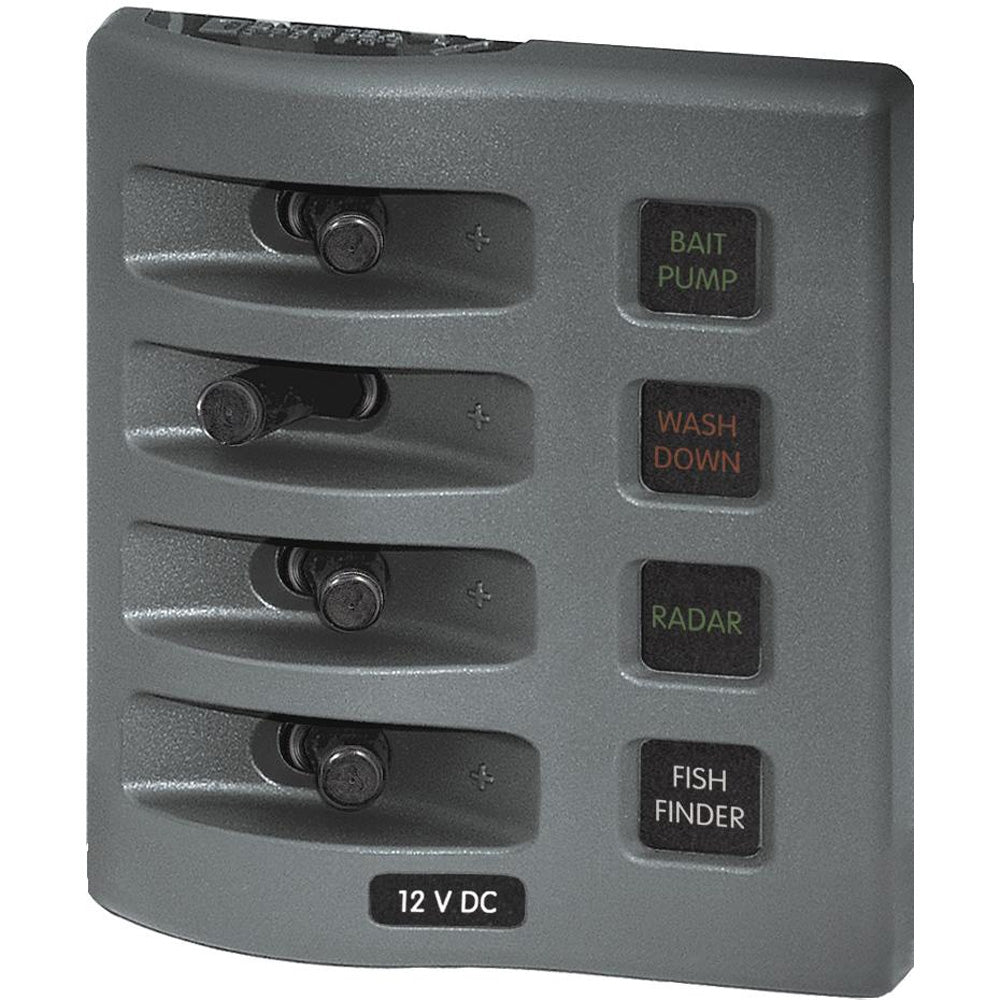

Blue Sea 4304 WeatherDeck Water Resistant Fuse Panel - 4 Position - Grey

Blue Sea 4304 WeatherDeck Water Resistant Fuse Panel offers exceptional protection against the elements tailored for marine and outdoor environments. With an IP67 rating, this fuse panel is perfect for flybridge and open cockpit applications, ensuring reliable performance even in harsh conditions.

Key Features:

• Water Resistant Design: Rated IP67 when properly mounted, it’s designed to withstand immersion in water up to 1 meter for 30 minutes.
• Versatile Mounting Options: Each panel can be mounted in four different orientations for convenience and adaptability.
• Bicolored LED Circuit Indicators: Easily identify the status of your circuits with red for OFF, green for ON, and no color for Blown circuits.

Ideal for boat enthusiasts and outdoor adventurers, this product is supported by a guarantee of quality and reliability, ensuring you stay connected and protected in all conditions. Don’t compromise on safety—upgrade your electrical system today with the Blue Sea 4304 WeatherDeck Fuse Panel!

WeatherDeck™ Water Resistant Fuse Panel

PN: 4304

Color: Gray

Features:

• Panel front rated IP67 when properly mounted with watertight mounting gasket
• IP67 – protected against immersion up to 1 meter for 30 minutes
• Designed for flybridge and open cockpit applications
• Independent label back lighting circuit for remote switching and dimming
• Each panel can be mounted in four different orientations
• Integrated ATO/ATC fuse based circuit protection
• Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.

Specifications:

• Weatherproof: Waterproof
• Positions: 4
• Nominal Voltage: 12v DC
• Circuit Protection: Fuse
• Maximum Amperage: 15A @ 12v DC (per circuit)
• Panel Cumulative Rating: 60A
• Backlit Label: Bicolored LED
• Backlighting Amperage: 10mA/illuminated Circuit
• Backlighting Voltage: 12v DC
• Height: 4.3"
• Width: 3.88"
• Depth: 2.5"

Included:

• (4) 4138 WeatherDeck® Toggle Switch Boot - Black
• (4) 4150 WeatherDeck® Toggle Switch SPST - ON-OFF
• (1) 4215 Waterproof DC Label Kit - 30 Black Square Labels V1
• (4) 5242 ATO/ATC Fuse - 15 Amp
