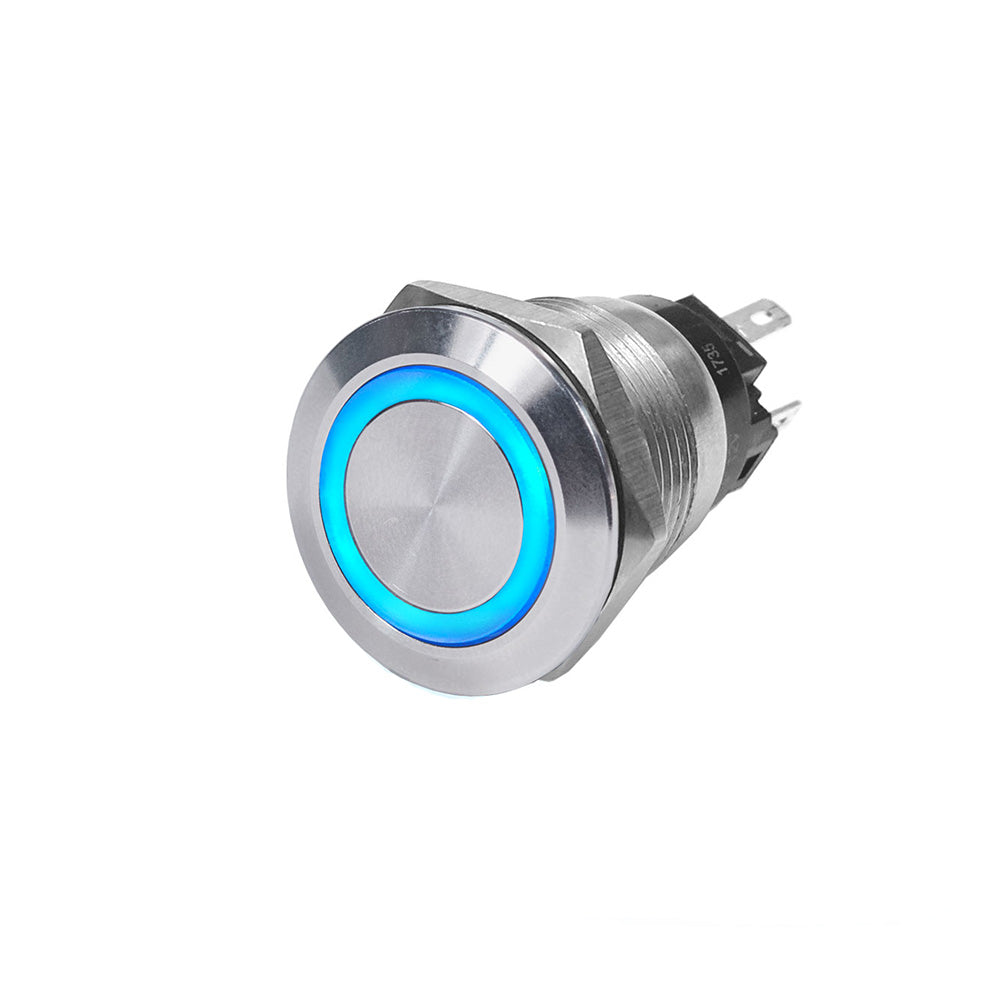

Blue Sea 4160 SS Push Button Switch - Off-On - Blue - 10A

The Blue Sea 4160 SS Push Button Switch offers reliable off-on functionality tailored for marine and automotive applications. With a continuous rating of 10A at 12V DC, this switch is perfect for controlling various electronic devices in boats and vehicles.

Key Features:

• Durable Design: Built to withstand harsh environments with a temperature range from -10° C to 70° C.
• Versatile Wiring Options: Can be configured for normally open or normally closed functionality, enhancing flexibility in setup.
• Independent Illumination: Features separate contacts for LED power, allowing for easy visibility in low-light conditions.

Ideal for marine enthusiasts and automotive applications, this product is supported by Blue Sea's commitment to quality, ensuring satisfaction with every use. With a mounting hole of 19mm and capable of enduring up to 18,000 switching cycles, the 4160 SS Push Button Switch is designed to perform reliably.

Invest in the Blue Sea 4160 SS Push Button Switch today and experience dependable control over your devices!

4160 SS Push Button Switch - Off-On - Blue - 10A

• 10A continuous
• Single Pole Double Throw or Single Pole Single Throw
• Can be wired for normally open or normally closed
• Installs with .110inch quick connects (included in retail package)

Specifications

• Action: OFF-ON
• Amperage: 10A @ 12V DC
• Nominal Voltage: 12V DC
• Maximum LED Operating Current: 20mA
• Minimum Operating Temperature: -10° C
• Maximum Operating Temperature: 70° C
• Minimum Storage Temperature: -55° C
• Maximum Storage Temperature: 85° C
• Illumination: Independent – Separate contacts for LED power
• Mounting Hole: 19mm
• Switching Cycles: 18,000
• Termination: 5 – 0.110inch Quick Connect terminals
