Blue Sea 3128 - SMS Panel Enclosure w/ELCI (30A) & 3 Branch (15A) - 120V AC
The Blue Sea 3128 - SMS Panel Enclosure offers superior protection and performance tailored for marine applications, ensuring safety and reliability with its Equipment Leakage Circuit Interrupters (ELCI). This enclosure is designed for easy installation and operation, making it ideal for boat owners looking for a robust solution for managing electrical systems.
Key Features:
- Blank Apertures: Allows for custom breaker loading, providing flexibility to meet your specific needs.
- Durable Construction: The glass-filled polycarbonate base and overlapping cover enhance strength, ensuring long-lasting performance in harsh environments.
- LED Indicators: Features multiple LED lights for backlighting and ON indication, giving you a clear view of your circuit status at a glance.
Ideal for marine installations, this product is supported by strict compliance with ABYC E-11 standards, ensuring quality and satisfaction. The Blue Sea 3128 is your go-to choice for a reliable and efficient electrical management solution. Upgrade your vessel's electrical system today!
3128 - SMS Panel Enclosure with ELCI (30A) & 3 Branch (15A) - 120V AC

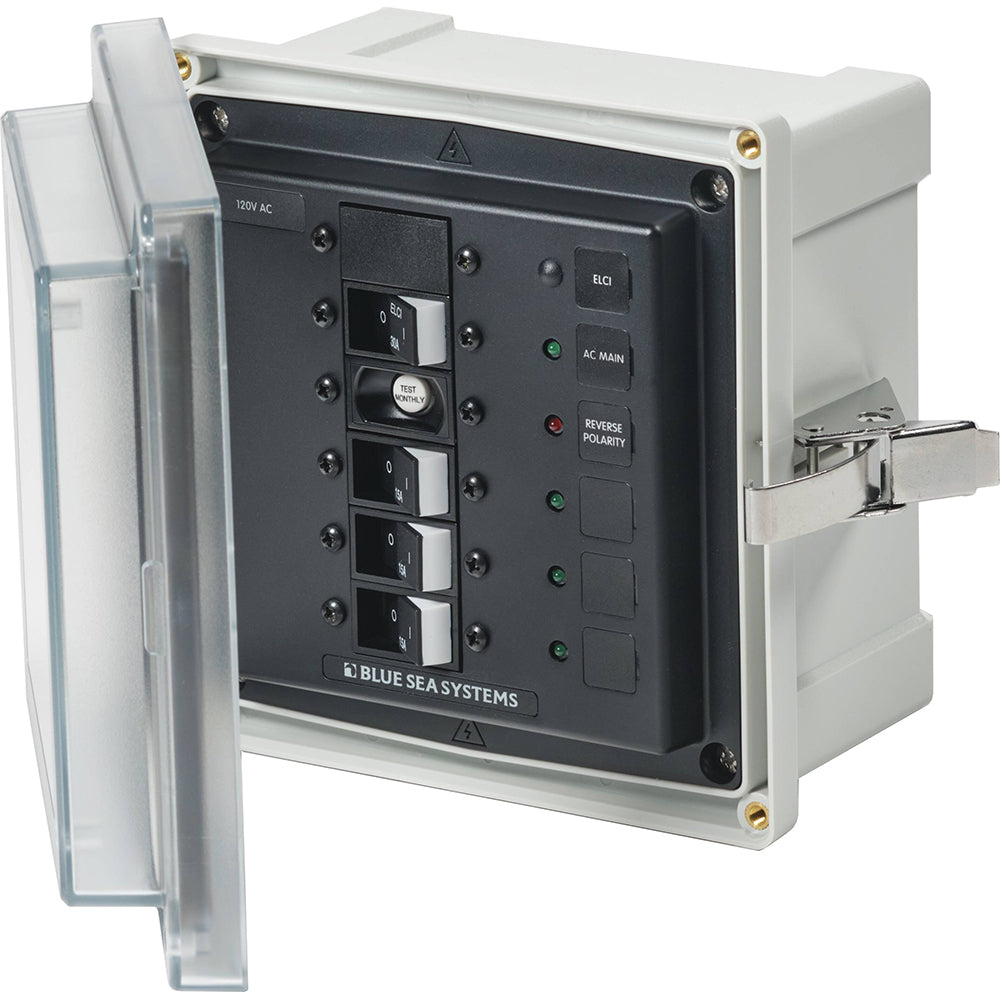

The 3128-panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.
Features:
- Blank apertures for custom breaker loading
- Glass-filled polycarbonate base
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
- Includes waterproof glands
- LED lights for backlighting and ON indication
Technical Specifications:
- Circuit Breaker Type - 1 x ELCI (30A) Main 120V and 3 x Branch (15A)
- Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
- Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
- LEDs Installed - 1 x Red (Reverse Polarity - 120V AC and 4 x Green ON (120V AC)
In the Box:
- 3128 Enclosure
- Glands x 6
- Labels
- Mounting hardware
- Instruction manual
*Sold as an Individual
