Blue Sea 3123 - SMS Panel Enclosure w/ELCI (32A) & 3 Blanks - 230V AC
Blue Sea 3123 - SMS Panel Enclosure offers superior protection and convenience tailored for marine applications. Designed for Equipment Leakage Circuit Interrupters (ELCI) and large frame devices, this enclosure ensures safety and compliance with ABYC E-11 standards when positioned near AC shore power inlets.
Key Features:
- Customizable Breaker Loading: Features blank apertures for personalized circuit loading.
- Durable Construction: Made with a glass-filled polycarbonate base and an overlapping cover for enhanced strength and gasket protection.
- Smart LED Indicators: Equipped with LEDs for backlighting and ON indication, providing clear visibility of circuit status.
Ideal for boat owners and marine electricians, this product is supported by a quality guarantee, ensuring you get reliable performance and peace of mind.

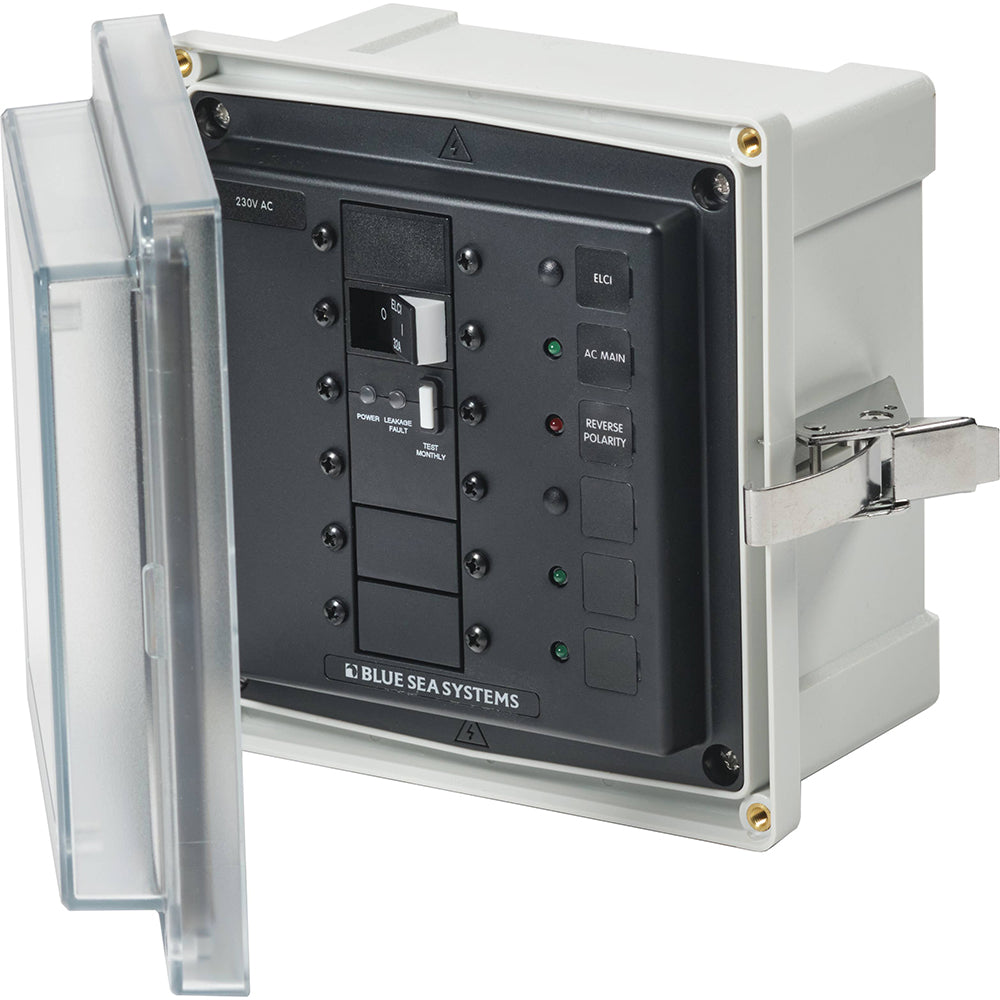

3123 - SMS Panel Enclosure with ELCI (32A) & 3 Blanks - 230V AC
The 3123-panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.
Features:
- Blank apertures for custom breaker loading
- Glass-filled polycarbonate base
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
- Includes waterproof glands
- LED lights for backlighting and ON indication
Technical Specifications:
- Circuit Breaker Type - 1 x ELCI (32A) Main 230V and 3 x Blanks
- Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
- Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
- LEDs Installed - 1 x Red (Reverse Polarity - 230V AC and 3 x Green ON (230V AC)
In the Box:
- 3123 Enclosure
- Glands x 6
- Labels
- Mounting hardware
- Instruction manual
*Sold as an Individual
