Blue Sea 3120 - SMS Panel Enclosure w/ELCI Main (50A) and 2 Blanks - 240V
-
Estimated Delivery:Aug 31 - Sep 04
-
Free Shipping: On all orders over $150
Guarantee safe & secure checkout
Blue Sea 3120 - SMS Panel Enclosure w/ELCI Main (50A) and 2 Blanks - 240V
Stories
Stories
Stories
Blue Sea 3120 - SMS Panel Enclosure w/ELCI Main (50A) and 2 Blanks - 240V
The Blue Sea 3120 offers superior circuit protection tailored for marine applications. This SMS Panel Enclosure is specifically designed for Equipment Leakage Circuit Interrupters (ELCI) and large frame devices, ensuring safe and reliable operation in challenging environments.
Key Features:
- Customizable Breaker Loading: Includes blank apertures for tailored circuit requirements.
- Durable Construction: Built with glass filled polycarbonate and an overlapping cover for optimal strength and gasket protection.
- Easy Installation: Features removable stainless steel hinge pin and waterproof glands for hassle-free setup.
Ideal for marine electricians and DIY boat enthusiasts, this product is backed by Blue Sea's commitment to quality, ensuring satisfaction and safety for all users.
3120 - SMS Panel Enclosure with ELCI Main (50A) and 2 Blanks - 240V

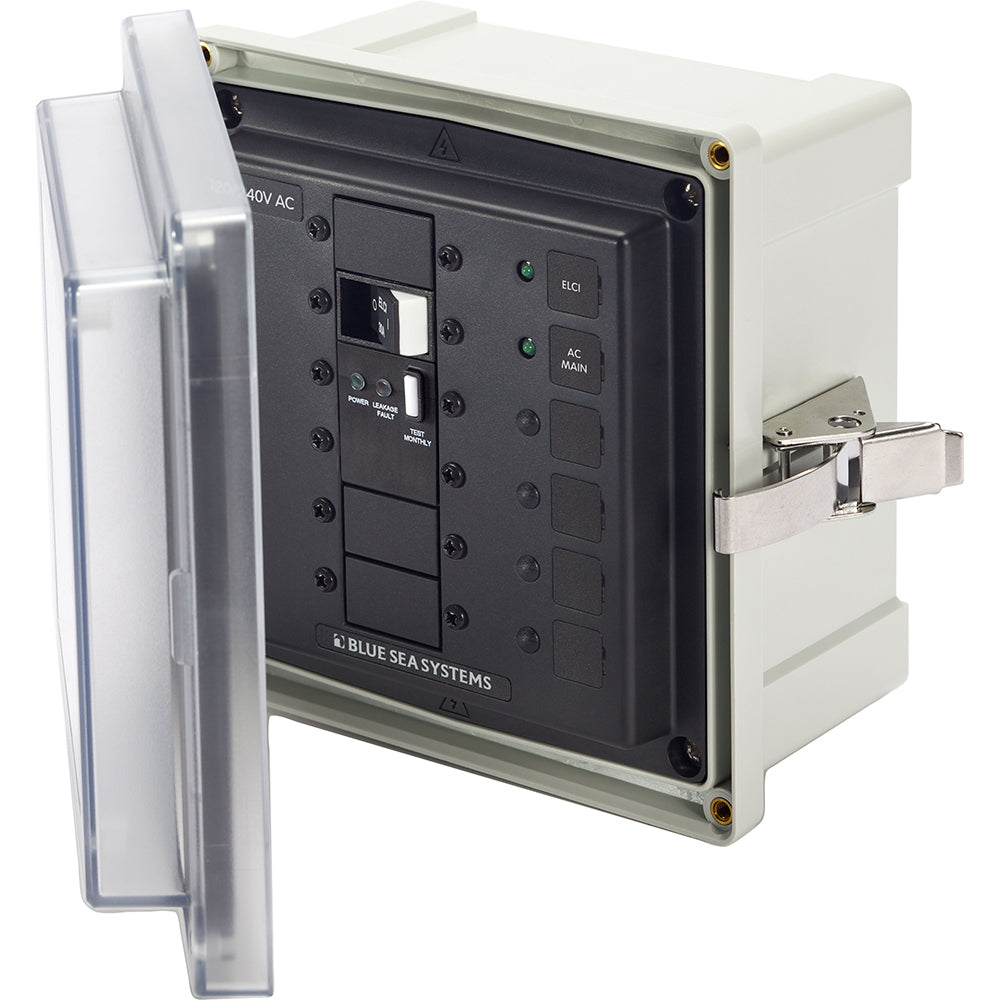

The 3120 panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.
Features:
- Blank apertures for custom breaker loading
- Glass filled polycarbonate base
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
- Includes waterproof glands
- LEDs for backlighting and ON indication
Technical Specifications:
- Circuit Breaker Type - 1 x ELCI (50A) Main 240V and 2 x Blank
- Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
- Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
- LEDs Installed - 2 x Green ON (240V AC)
In the Box:
- 3120 Enclosure
- Glands x 5
- Labels
- Mounting hardware
- Instruction manual
*Sold as an Individual
