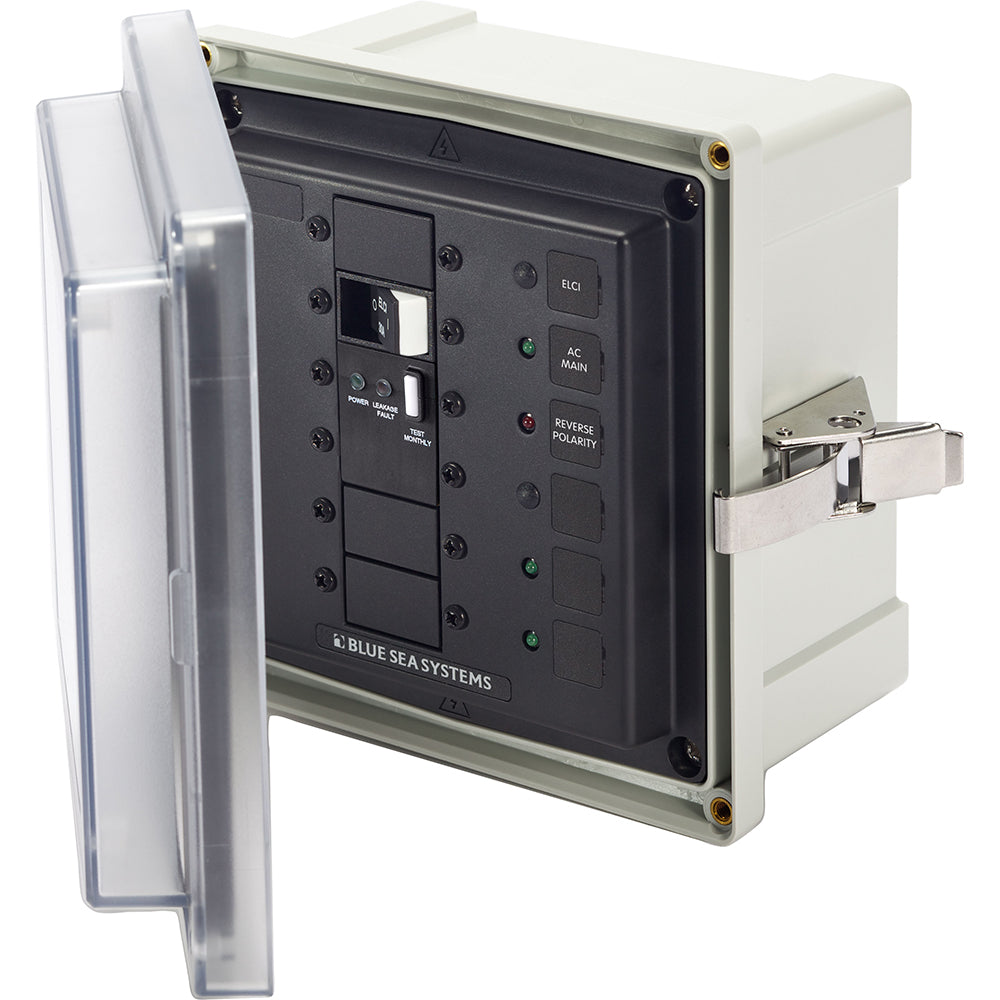

Blue Sea 3118 - SMS Panel Enclosure w/ELCI (50A) and 2 Blanks - 120V AC
-
Estimated Delivery:Sep 03 - Sep 07
-
Free Shipping: On all orders over $150
Guarantee safe & secure checkout
Blue Sea 3118 - SMS Panel Enclosure w/ELCI (50A) and 2 Blanks - 120V AC
Stories
Stories
Stories
Blue Sea 3118 - SMS Panel Enclosure w/ELCI (50A) and 2 Blanks - 120V AC
Blue Sea 3118 by Blue Sea Systems offers a robust and reliable solution for managing electrical circuits, tailored for marine and shore power applications. This SMS Panel Enclosure with ELCI (50A) ensures maximum safety and protection from equipment leakage, making it ideal for boaters and marine professionals.
Key Features:
- Durable Construction: Made from glass-filled polycarbonate, this enclosure features a clear cover for easy visibility of circuit breaker status.
- Enhanced Protection: The overlapping cover design increases strength and provides superior gasket protection, ensuring long-lasting performance.
- User-Friendly Design: Includes blank apertures for custom breaker loading and easily removable stainless steel hinge pins for simple installation.
Ideal for marine environments or when connecting to AC shore power, this product is supported by a commitment to quality and safety compliance with ABYC E-11 standards. With dimensions of 7.6" x 7.4" x 4.7" and accommodating up to two blank circuit positions, the Blue Sea 3118 ensures a perfect fit for your needs.
Ensure the safety of your electrical systems with the Blue Sea 3118 SMS Panel Enclosure. Don't compromise on quality—order yours today!
3118 - SMS Panel Enclosure with ELCI (50A) and 2 Blanks - 120V AC
The 3118 panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.
Features:
- Blank apertures for custom breaker loading
- Glass filled polycarbonate base
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
- Includes waterproof glands
- LED lights for back lighting and ON indication
Technical Specifications:
- Circuit Breaker Type - 1 x ELCI Main (50A) 120V and 2 x Blanks
- Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
- Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
- LEDs Installed - 1 x Red (Reverse Polarity - 120V AC and 3 x Green ON (120V AC)
In the Box:
- 3118 Enclosure
- Glands x 5
- Labels
- Mounting hardware
- Instruction manual
*Sold as an Individual
