ARCO Marine Zeus A275L Transit Alternator - High Output Power for Your Needs

Introducing the ARCO Marine Zeus A275L Transit Alternator with Terminal Block, the ultimate solution for those seeking a high output alternator with exceptional performance. With its high amperage capabilities, this alternator is designed to replace your noisy generator, providing you with a quieter, more efficient energy production system. Perfect for marine, RV, military, and commercial applications, the Zeus A275L stands out in the market for its reliability and power.

Key Features:

• High Output Amperage: Engineered to deliver the highest power output in its class.
• Rapid Battery Charging: Efficiently charges large batteries to ensure you never run out of power.
• Versatile Applications: Suitable for a wide range of uses, from marine vessels to RVs and commercial vehicles.
• Reliable Performance: Built to withstand harsh conditions, ensuring longevity and dependability.

The ARCO Marine brand is synonymous with quality and durability, making the Zeus A275L a trusted choice for professionals and enthusiasts alike. Its construction allows for enhanced energy production, making it a superior alternative in the alternators category.

Upgrade to the Zeus A275L Transit Alternator today and experience the benefits of high performance and reliability. Don’t miss out on the opportunity to boost your energy efficiency—order now!

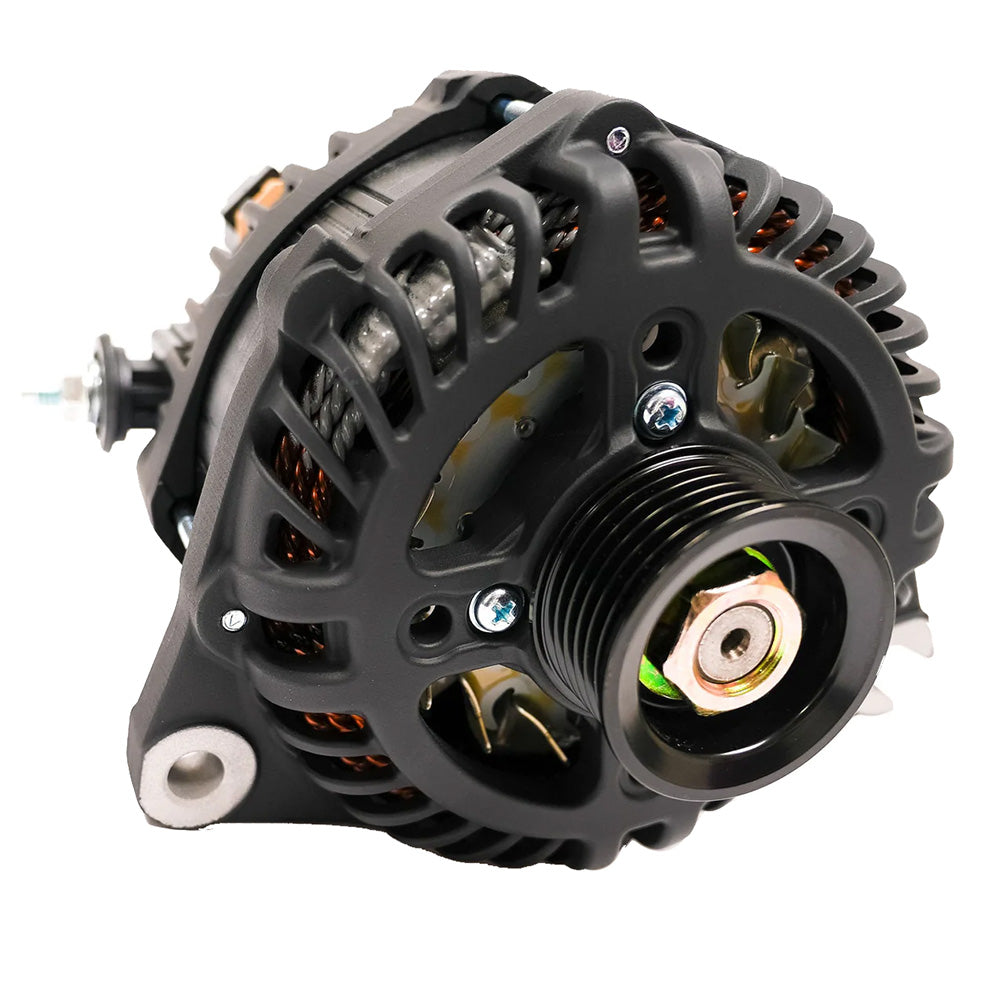

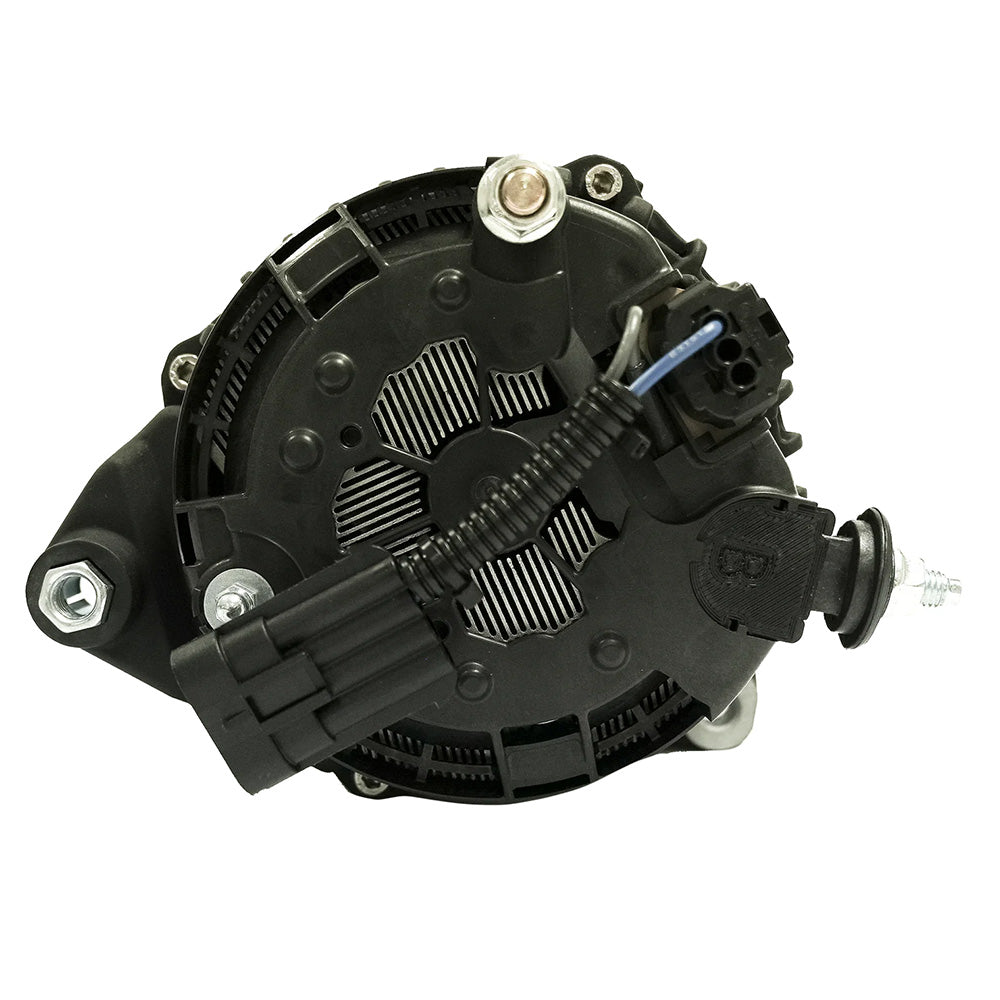

Zeus A275L Transit Alternator with Terminal Block

High Output / High Amperage Alternator: The Highest Power Output in Its Class.

Features:

• Replace your noisy generator!
• Engineered for high energy production.
• Suitable for marine, RV, military, and commercial applications.
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance:
• Heat-shedding coatings
• Rectifier located on housing exterior
• Dual cooling fans
• OEM components
• Optimized for performance at idle speeds
• Reduces the need for a generator by creating additional power with your engine
• Unleash peak performance with E-Coat/Cerakote, keeping the A275L cooler for sustained amperage output
• For maximum performance or lithium battery charging, use the ARCO Zeus Bluetooth Alternator Regulator
• Mercedes requires the use of a clutch pulley on secondary alternators used on all Sprinter vans. For Mercedes Sprinter, please use our N62 with Clutch Pulley here
• SAE J1171 Certified
• Models are available with internal/external voltage regulators
• Proudly made in the U.S.A.

Specifications:

• Voltage: 12V
• Field Type: P

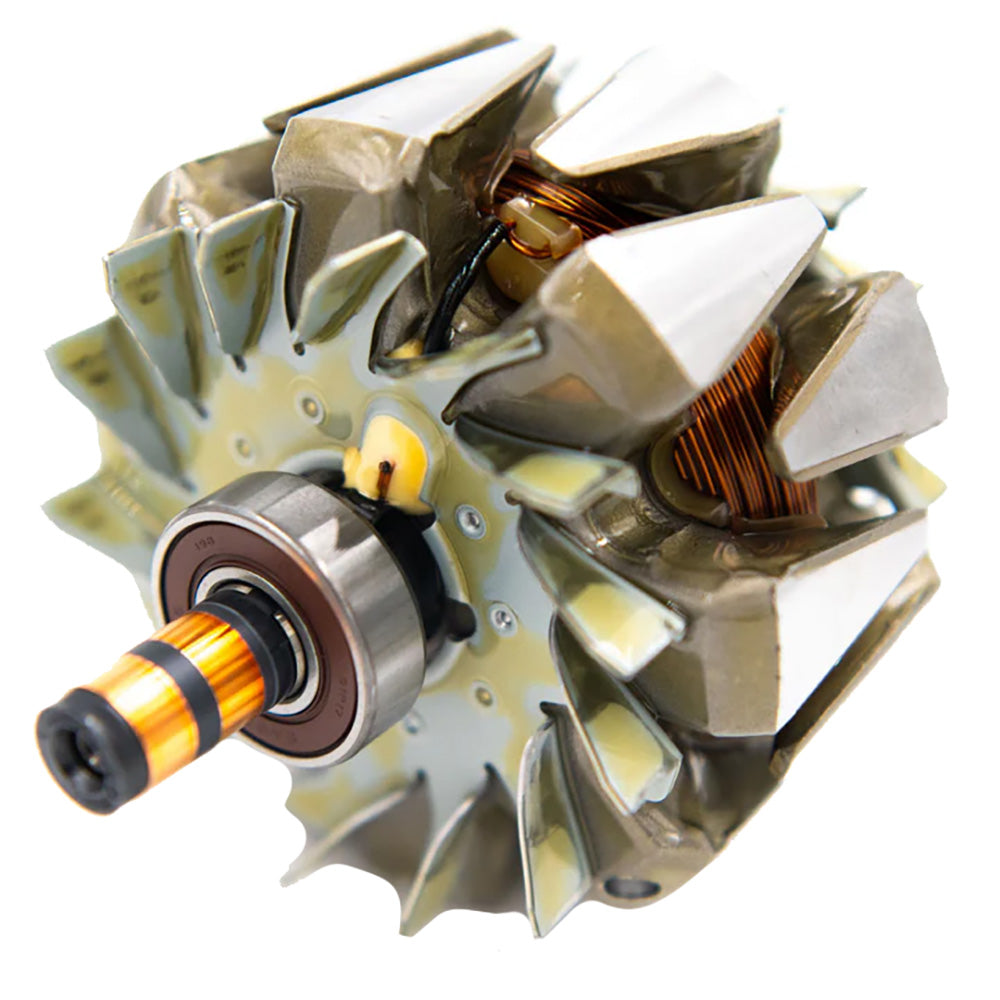

• Rotor Poles: 16

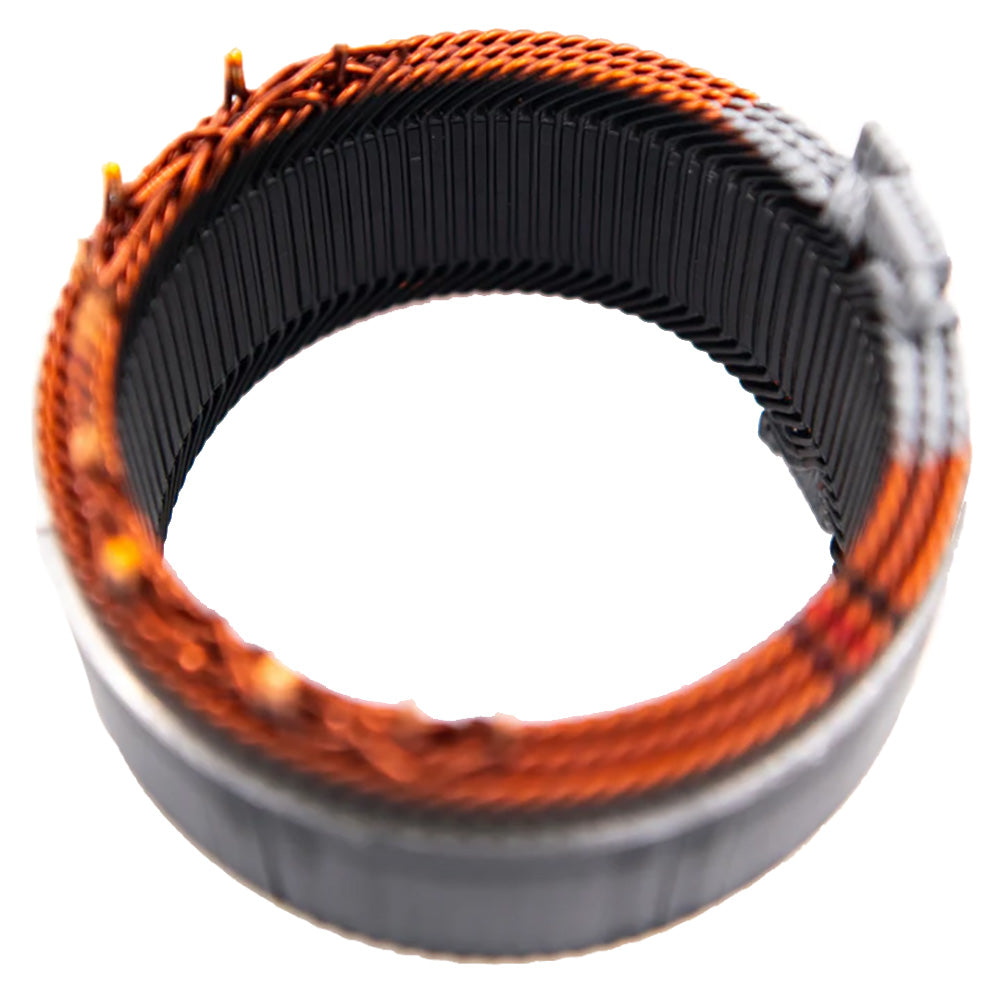

• Stator Size: 138mm
• Frame Size: Large
• Weight: 14.9 lbs / 6.7 kg
• Regulation: Internal/External (IE) or External Only (EX)
• Output Voltage: 14.1V (default)
• Finish: (Black) Cerakote or E-coating
• Cut-In RPM: 1,061 Alternator RPM
• Maximum Alt RPM: 19,000
• Battery Post: M8 Thread Post, Side Mount
• Standard Pulley: 49K6 (6-groove, 49mm)
• Pulley Mount: 17mm diameter shaft, 25mm long, threaded M17 x 1.5
• Pulley Hardware: M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
• Diodes: 6 positive, 6 negative, 50A Rated, Avalanche
• Max Output (Cold, 9,000 RPM): 311 Amps
• Sustained Cruising Output (Hot, 6,000 RPM): 227 Amps
• Sustained Idle Output (Hot, 3,000 RPM): 198 Amps
• Max Continuous Operating Temperature: 110°C / 230°F

Mounting Application:

• Replaces Ford Transit alternators for 3.5L & 3.7L Gas engines 2015-2022
