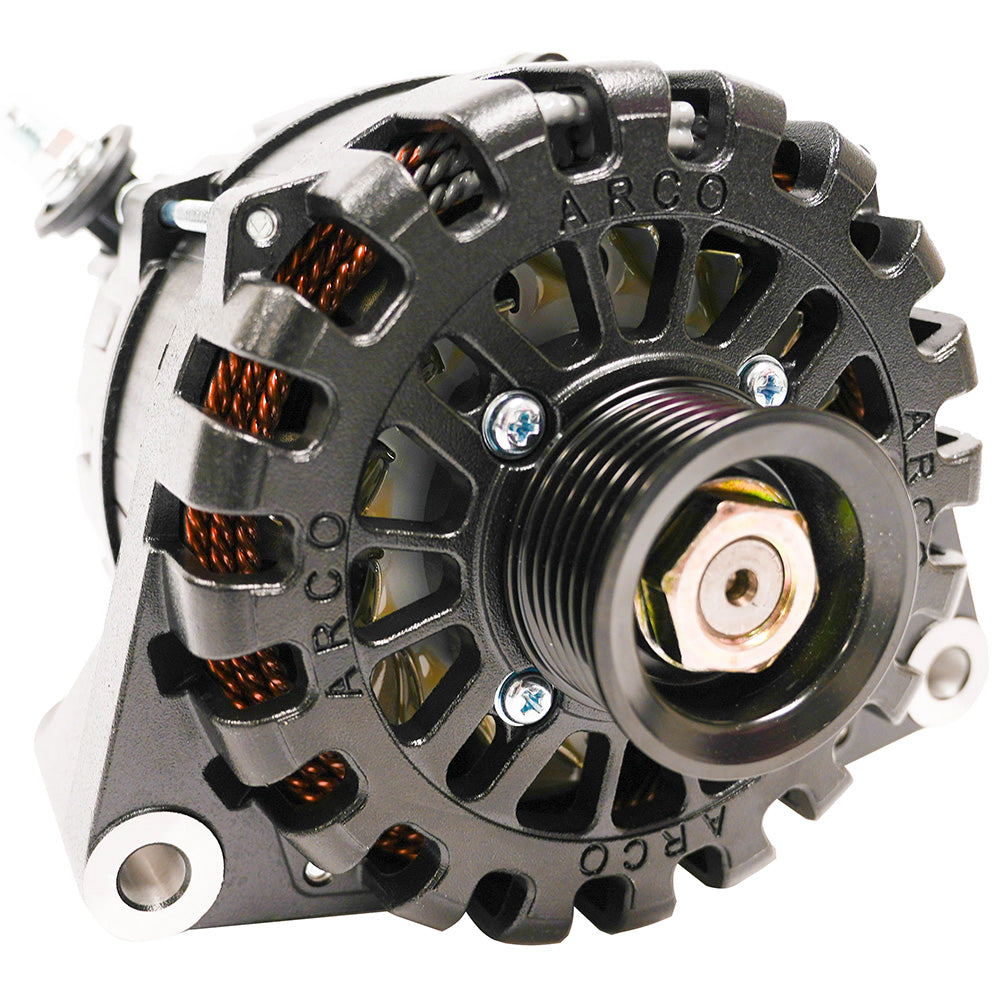

High-Power Output Arco Marine Zeus A275L N62 Alternator With Regulator

The Arco Marine Zeus A275L N62 Alternator with Regulator is the pinnacle of high energy production in its class, particularly suitable for marine, RV, military, and commercial applications. This alternator is engineered to deliver the highest power output, ensuring that you stay powered even in the most demanding environments.

What sets the Zeus A275L apart from conventional alternators is its ability to rapidly charge large battery banks. This means less downtime and more time enjoying your adventures on the water or the road.

Key Features

• Engineered for High Energy Production: Designed to maximize energy output while maintaining efficiency.
• Rapid Battery Charging: Perfect for situations where quick recharges are essential.
• Optimized Operating Temperatures: Coolest operating temperatures enhance performance and longevity.
• Versatile Applications: Ideal for use in marine vessels, RVs, military units, and commercial vehicles.

With ARCO Marine's reputation for reliability and performance, the Zeus A275L N62 is a smart choice for those who demand the best from their engine parts. Upgrade your system today to experience the power and reliability that only ARCO Marine can provide.

Don't miss out! Equip your vehicle with the Zeus A275L N62 Alternator and ensure you have the energy you need for any adventure. Order now to experience unparalleled performance.

Zeus A275L N62 Alternator with Regulator

The highest power output alternator in its size/class.

Features:

• Engineered for High Energy Production.
• Suitable for Marine, RV, Military, and Commercial applications.
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance. Runs 8 - 20% cooler than incumbent alternators due to:

   - Heat shedding coatings

   - Rectifier located on housing exterior

   - Dual cooling fans

   - OEM Components

• It is optimized for performance at idle speeds.
• Reduces the need for a generator by creating additional power with your engine.
• Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A275L cooler. This translates to more amperage for sustained periods.
• Use an ARCO Zeus Bluetooth alternator regulator for maximum performance or lithium battery charging.
• SAE J1171 Certified.
• Made in the U.S.A.

Technical Specifications:

• Voltage - 12v
• Field Type - P
• Rotor Poles - 16
• Stator Size - 138mm
• Frame Size - Large
• Weight - 14.9 lbs/6.7 kg
• Regulation - Internal/External (Internally regulated with adaptor for optional external regulation.)
• Output Voltage - 14.1v (Default)
• Finish - (Black) Cerakote or E-coating
• Cut-In RPM - 1,061 Alternator RPM
• Maximum Alt RPM - 19,000
• Battery Post - M8 Thread Post, Side Mount
• Standard Pulley - 49K6 (6-groove, 49mm)
• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
• Diodes - 6 positive, 6 negative, 50A Rated, Avalanche
• Max Output (Cold, 9,000 RPM) - 311 Amps
• Sustained Cruising Output (Hot, 6,000 RPM) - 227 Amps
• Sustained Idle Output (Hot, 3,000 RPM) - 198 Amps
• Max Continuous Operating Temperature - 110°C / 230°F

Mounting Application:

• Replaces most Mercedes and BMW alternators, Mercedes Sprinter 1999-2006 alternators, Mercedes Sprinter Factory dual alternator 2007-Up Replacement
