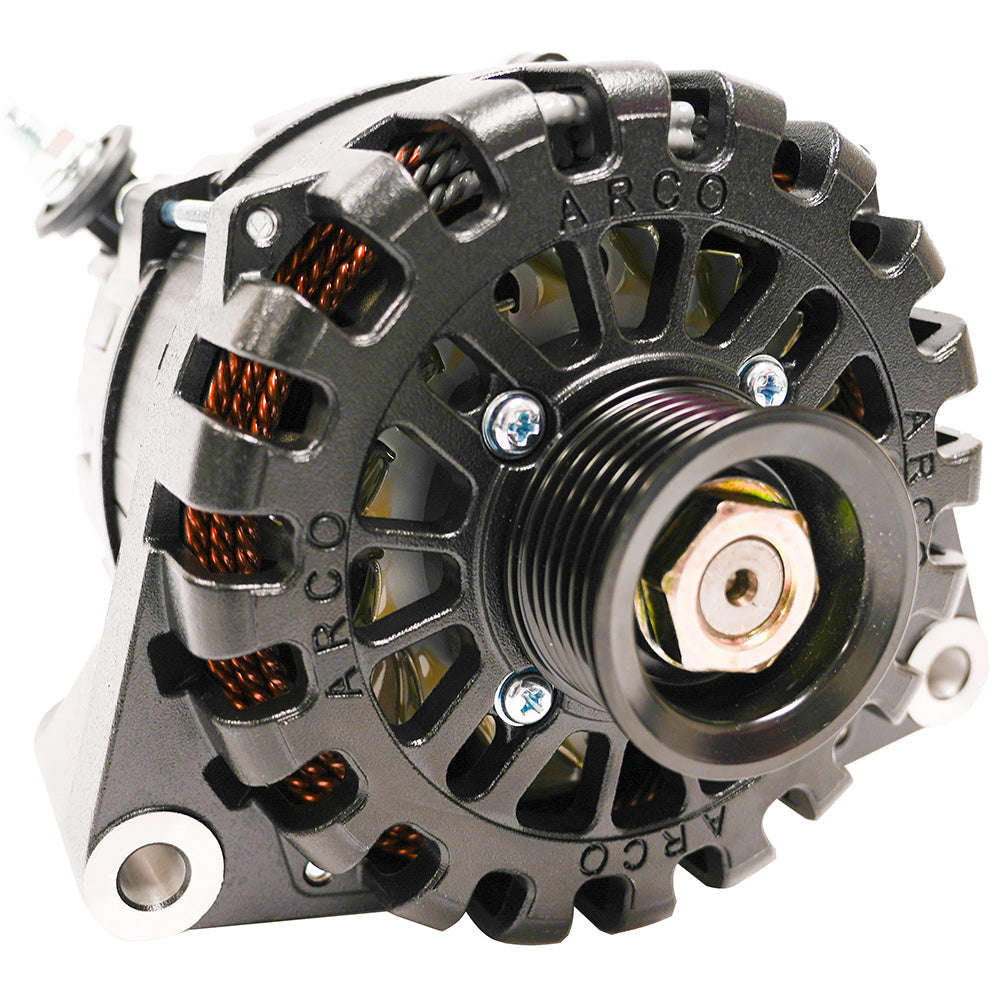

ARCO Marine Zeus A275L N62 Alternator with Clutch Pulley and Terminal Block

Introducing the ARCO Marine Zeus A275L N62 Alternator, the ultimate solution for those seeking unmatched power and efficiency in alternators. Designed specifically for marine, RV, military, and commercial applications, this alternator is crafted to deliver the highest power output in its size class, ensuring your systems operate at peak performance.

• Engineered for High Energy Production: The Zeus A275L N62 is built to maximize energy generation, making it perfect for powering large battery banks rapidly.
• Clutch Pulley & Terminal Block: Featuring a state-of-the-art clutch pulley and a convenient terminal block, this alternator simplifies installation and enhances functionality.
• Cool Operating Temperatures: Designed to maintain the coolest temperatures, the Zeus A275L N62 ensures longevity and reliability even in demanding environments.

Unlike typical alternators in the market, the Zeus A275L N62 stands out with its exceptional engineering and performance. Whether you're navigating through rough seas or powering essential equipment in remote locations, this alternator guarantees efficient and stable power supply.

Choose the ARCO Marine Zeus A275L N62 Alternator for superior durability and efficiency, and experience the difference in your power solutions. Upgrade your energy system today!

Don't wait! Boost your power capability and reliability with the ARCO Marine Zeus A275L N62 Alternator. Order now!

Zeus A275L N62 Alternator with Clutch Pulley & Terminal Block

The highest power output alternator in its size/class.

Features:

• Engineered for High Energy Production.
• Suitable for Marine, RV, Military, and Commercial applications.
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance.
• Runs 8 - 20% cooler than incumbent alternators due to: Heat shedding coatings, Rectifier located on housing exterior, Dual cooling fans, and OEM Components.
• It is optimized for performance at idle speeds.
• Reduces the need for a generator by creating additional power with your engine.
• Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A275L cooler. This translates to more amperage for sustained periods.
• Use an ARCO Zeus Bluetooth alternator regulator or lithium battery charging for maximum performance.
• SAE J1171 Certified.
• Made in the U.S.A.

Technical Specifications:

• Voltage - 12v
• Field Type - P
• Rotor Poles - 16
• Stator Size - 138mm
• Frame Size - Large
• Weight - 14.9 lbs/6.7 kg
• Regulation - External Only (These units will come with a terminal block and a P-Type harness. They will only work with an external regulator, such as an ARCO Zeus Bluetooth alternator regulator.)
• Output Voltage - 14.1v (Default)
• Finish - (Black) Cerakote or E-coating
• Cut-In RPM - 1,061 Alternator RPM
• Maximum Alt RPM - 19,000
• Battery Post - M8 Thread Post, Side Mount
• Standard Pulley - 49K6 (6-groove, 49mm)
• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
• Diodes - 6 positive, 6 negative, 50A Rated, Avalanche
• Max Output (Cold, 9,000 RPM) - 311 Amps
• Sustained Cruising Output (Hot, 6,000 RPM) - 227 Amps
• Sustained Idle Output (Hot, 3,000 RPM) - 198 Amps
• Max Continuous Operating Temperature - 110°C / 230°F

Mounting Application:

• Mercedes Sprinter 1999-2006 alternators, Mercedes Sprinter Factory dual alternator 2007-Up Replacement. Replaces Roadtrek Mercedes Dual alternator
