Analytic Systems Waterproof IP66 DC Converter 10A, 24V Out, 30-80V In, Ruggedized
-
Estimated Delivery:Aug 31 - Sep 04
-
Free Shipping: On all orders over $150
Guarantee safe & secure checkout
Analytic Systems Waterproof IP66 DC Converter 10A, 24V Out, 30-80V In, Ruggedized
Stories
Stories
Stories
Analytic Systems Waterproof IP66 DC Converter 10A, 24V Out
Analytic Systems Waterproof IP66 DC Converter 10A offers exceptional reliability and efficiency tailored for rugged environments. Designed to convert high voltage (30-80V) to a stable 24V output, this converter is perfect for demanding applications where durability is essential.
Key Features:
- Ruggedized Design: Built to withstand harsh conditions with an IP66 rated watertight enclosure.
- High Efficiency: Achieves over 92% efficiency, delivering up to 544 watts at 48V DC output.
- Advanced Protection: Equipped with reverse input protection, output current limiting, and over-voltage protection for peace of mind.
Ideal for military vehicles, industrial machines, and outdoor equipment, this product is supported by a two-year warranty, ensuring quality and satisfaction. Trust in the Analytic Systems Waterproof DC Converter for your power needs and experience unparalleled performance!
Waterproof IP66 DC Converter 10A, 24V Out, 30-80V In, Ruggedized

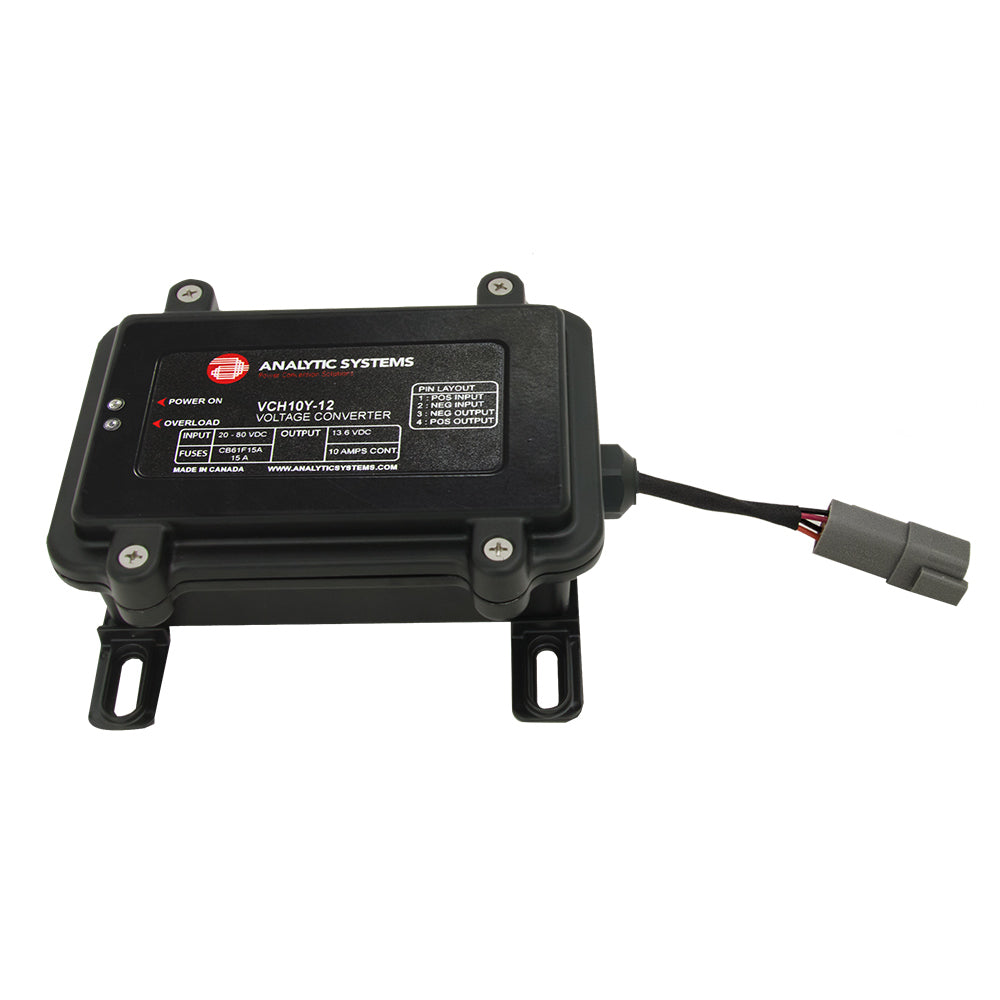

The VCH10 Step Down series of Voltage Converters supply up to 10 amps of output current at 12, 24, 36 or 48 volts from any higher voltage between 20 and 80 volts DC in an IP66 rated watertight and EMC shielded enclosure for use in rugged environments.
The standard VCH10W model offers a Deutsch connector on a pigtail input/output cable, and the military grade VCH10MW features separate bayonet style MIL connectors for input and output.
The all surface mount high frequency design offers higher reliability, higher efficiency (more than 92%), more power (up to 544 watts at 48 VDC Out) and minimum size.
The VCH10MW is rated for operation from -40 to +55 degrees C and has been tested and confirmed to meet MIL-STD-461F for radiated and conducted emissions. It is designed to meet MIL-STD-810G for shock and vibration.
The unit has reverse input protection, output current limiting and output over-voltage protection.
Features:
- Watertight O-ring sealed and EMC gasketed enclosure
- MIL connectors
- ‘Output ON’ and ‘Overload’ LED indicators
- Compact size and easy mounting
- Up to 80V input
- Heavy duty ruggedization with wide temperature range
- Paralleling diodes
- Custom output voltages available
- Two year warranty (parts and labor)
