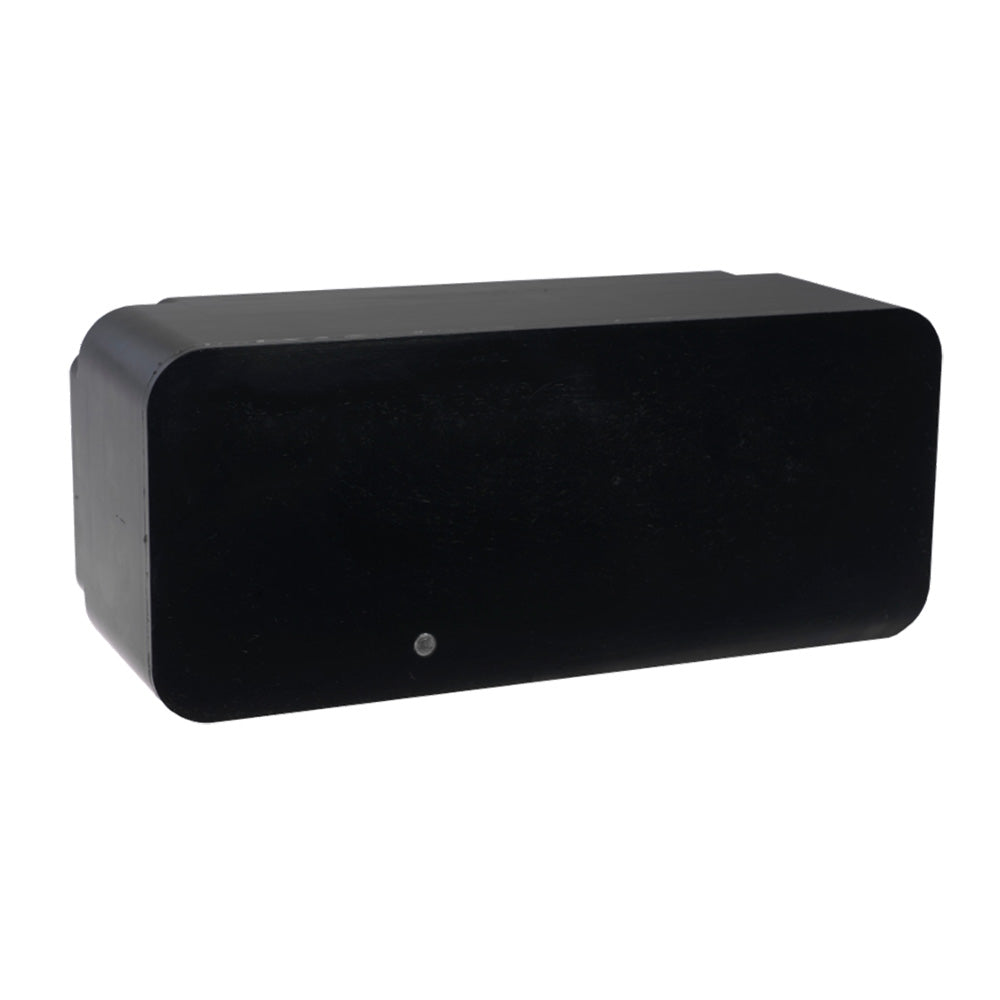

PM111LH Pocket Mount - Low-High Chirp 2kW - No Connector
A popular choice for boat builders, pocket mount transducers is installed within a small custom pocket in your vessel’s hull or keel, flush to the surface. Though retrofit installation is possible, these transducers are most commonly used in vessels with a suitable pre-cut pocket.
Pocket-mounted transducers provide reliable and accurate sonar performance, with some impact on boat speed and fuel efficiency. As a common alternative, thru-hull transducers with a fairing block deliver comparable sonar performance and vessel impact.
Features:
- Depth & fast-response water-temperature sensor
- Fiberglass and metal stepped, planing, or displacement hull types
Advantages:
- All the benefits of a thru-hull without the need for a high-performance fairing
- Can accommodate any deadrise angle
- Can be used with all propulsion types
Specifications:
Low (38 kHz to 75 kHz):
- 19° to 10° port/star
- 10° to 5° fore-aft beam
- Maximum depth 6000 ft.
High (130 kHz to 210 kHz):
- 8° to 4° beamwidth
- Max. depth 1500 ft.
Bottom Coverage Relative to Frequency and Depth
- Depth (50 ft.): 6 ft.
- Depth (100 ft.): 14 ft.
- Depth (300 ft.): 42 ft.
- Depth (600 ft.): 84 ft.
- Depth (1000 ft.): 140 ft.
- Depth (1500 ft.): 210 ft.
- Depth (2000 ft.): Too deep
