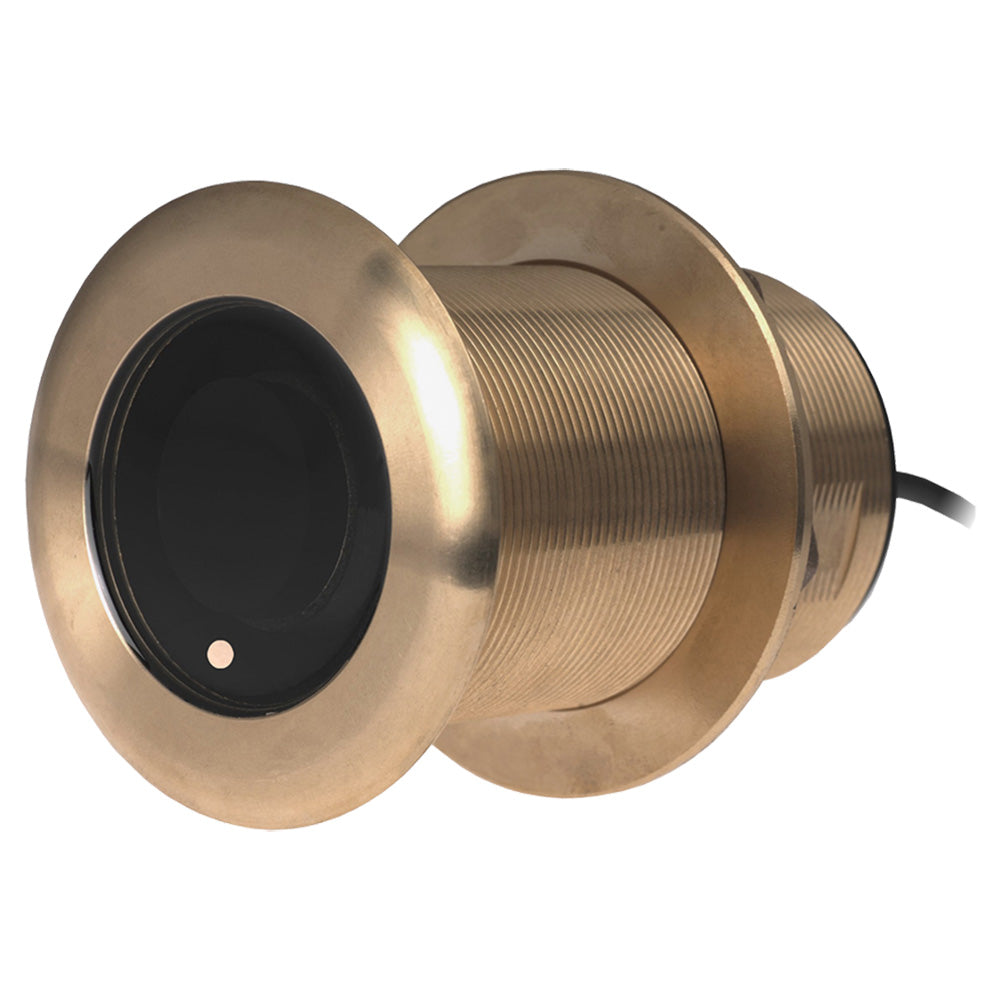

Airmar B60 Thru-Hull Transducer 20° Tilt 9-Pin for Navico xSonic

The Airmar B60 Thru-Hull Transducer offers superior depth sensing and fast-response water temperature readings, tailored for serious fishing and leisure yachting enthusiasts. This high-performance transducer is designed to integrate seamlessly with Navico xSonic, providing precise and reliable readings for your boating adventures.

Key Features:

• Dual-Frequency Performance: Operates at 50 kHz with a wide 45° beamwidth for depths up to 353 m (1200'), and 200 kHz with a 12° beamwidth for depths to 206 m (700').
• Tilted Element Design: The ceramic element fixed at a 20° angle minimizes the hull deadrise impact, ensuring optimal beam orientation for accurate echo returns.
• Durable Construction: Low-profile bronze housing extends just 5 mm (3/16") outside the hull, is compatible with fiberglass or wood hulls, and includes a maximum deadrise angle of 24°.

Ideal for center-console or trailered boats, the Airmar B60 Thru-Hull Transducer is backed by a quality assurance guarantee, ensuring you receive a product that delivers reliable performance and satisfaction.

B60 Thru-Hull Transducer 20° Tilt 9-Pin for Navico xSonic

The B60 is a 600W, 50/200 kHz transducer that integrates Airmar’s popular, Tilted Element™ feature. This Tilted Element transducer has the ceramic element fixed at a 20° angle within the housing. When the transducer is installed almost flush with the hull, the tilt of the element corrects for the hull deadrise angle. Orienting the beam directly down ensures maximum echo returns to the transducer for more accurate depth readings.

Features:

• Depth and fast-response water temperature sensing
• 600 W of power
• Dual-frequency element:
  • 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
  • 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
• Perfect for center-console or trailered boats
• Low-profile bronze housing extends only 5 mm (3/16") outside the hull
• No effect on your boat’s running performance
• Bronze housing for fiberglass or wood hull
• Also available in a stainless steel housing (SS60) for use with all hull materials

Specifications:

• Power Rating: 600 W
• Max Deadrise Angle: 24°
• Housing: Bronze
• Functions: Depth, Temperature
• Hull Material: Fiberglass or wood
• Max Vessel LOA: Up to 8 m (26')
• Hole Size: 60 mm (2-3/8")
• Usable Shaft Length: 68.5 mm (2.70")
• Acoustic Window: Urethane
• Common Use: Leisure/Yachting, Fishing
• Conventional Beam: 45°/12°
• Max Deadrise: Up to 24°
• Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700')
• Mounting Style: Tilted Element Thru-Hull
• Retractable housing: No
• Single or Dual Frequency: Conventional Dual Frequency
• Tilted Element: Yes
• Weight: 1.4 kg (3 lbs.)
